Basic Info.
Outlet Connection
Diss/Barb/Check Valve/Quick Connector
Colors
Green/Yellow, Silver/Chrome Plating
Flow
0-4/0-8/0-15/0-25lpm
Inlet Connection
G5/8/Cga540/Cga870/G3/4
Transport Package
Standard Export Carton
Specification
20Pcs/Ctn
Trademark
OEM/ODM
Origin
China
HS Code
9019200000
Production Capacity
50000PCS/Year
Product Description

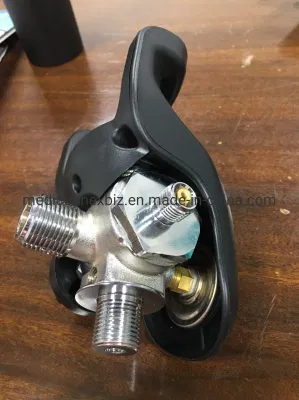

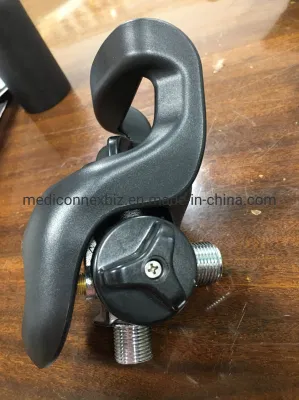

Integrated valve cylinder valve with iron handle western style portable valve
Product Description
Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Item Name: Muti-functional Medical Oxygen Regulator ALL IN ONE Luxury Design
Item No.: HQ-OR-681
Material:Aluminum, Brass
Inlet Connection: 9/16-18UNF
Outlet Connection: Barb, Diss,Check valve
Including :One Charging outlet,One Cylinder Handle
Inlet Pressure: 0-3000PSI
Outlet Pressure: 50PSI
Flow Rate:0-4, 0-8, 0-15,0-25 LPM
Packing Size: 40*35.5*15.5CM/CTN
20PCS/CTN 6/7KGS/CTN
•3000psi maximum inlet pressure
•1-1/2'' diameter UL-listed gauge
•Complies to CGA standard
•Internal relief valve
•Piston design regulator
•Sintered bronze inlet filter for longer service life
•Easy to read flow rate window
•Alternative color
•Selection of 0-4 0-8 0-15 0-25 each with 12 flow settings
•FDA,ISO13485 certification
Products details:
Products Application:
More information, please contact Abby directly.
Sales:Abby
Website:https://mediconnexbiz.en.made-in-china.com
Product Description
Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Item Name: Muti-functional Medical Oxygen Regulator ALL IN ONE Luxury Design
Item No.: HQ-OR-681
Material:Aluminum, Brass
Inlet Connection: 9/16-18UNF
Outlet Connection: Barb, Diss,Check valve
Including :One Charging outlet,One Cylinder Handle
Inlet Pressure: 0-3000PSI
Outlet Pressure: 50PSI
Flow Rate:0-4, 0-8, 0-15,0-25 LPM
Packing Size: 40*35.5*15.5CM/CTN
20PCS/CTN 6/7KGS/CTN
Main Features
•Aluminum body with brass core•3000psi maximum inlet pressure
•1-1/2'' diameter UL-listed gauge
•Complies to CGA standard
•Internal relief valve
•Piston design regulator
•Sintered bronze inlet filter for longer service life
•Easy to read flow rate window
•Alternative color
•Selection of 0-4 0-8 0-15 0-25 each with 12 flow settings
•FDA,ISO13485 certification
Products details:
Products Application:
More information, please contact Abby directly.
Sales:Abby
Website:https://mediconnexbiz.en.made-in-china.com
