Product Description
Introduction

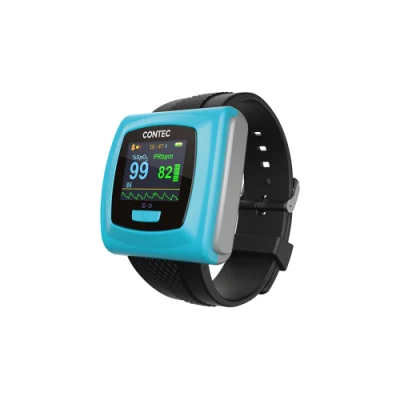

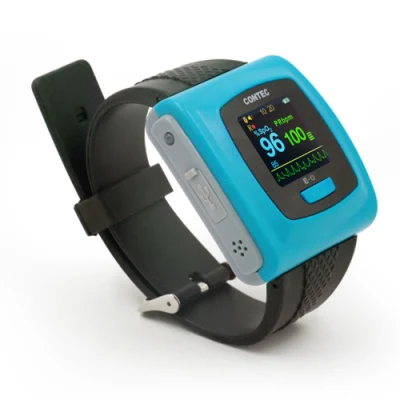

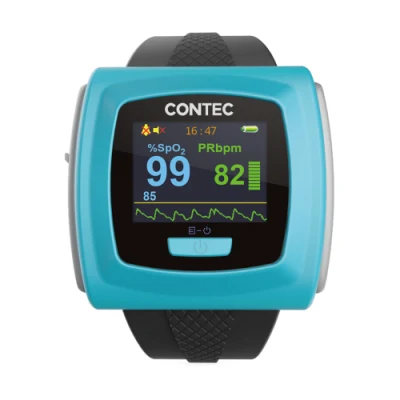

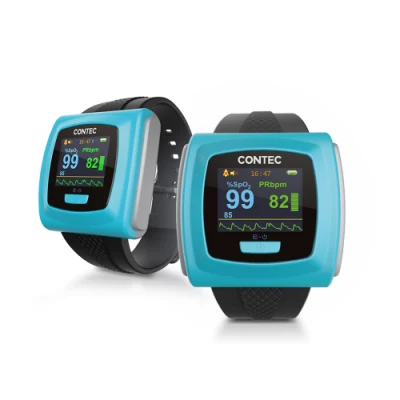

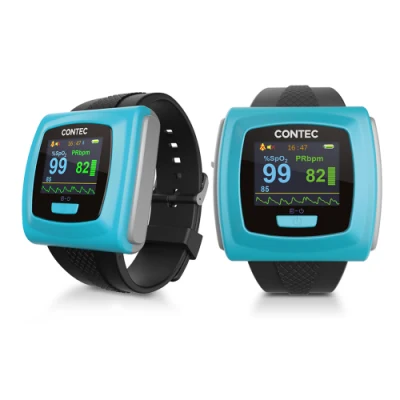

CMS50F Pulse Oximeter adopts PhotoelectricOxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning& Recording Technology, which can be used to measure human oxygensaturation and pulse rate through finger. The device is suitable for use infamily, hospital, oxygen bar, community healthcare and physical care in sports,etc. (It can be used before or after exercise, but not recommended to useduring exercising).
Function
1) Displayof SpO2 value.
2) Displayof pulse rate and bar graph.
3) Displayof pulse waveform.
4) Low-voltageindication: the low power indication symbol appearswhen the voltage is too low to work.
5) Adjustable screen brightness.
6) PR sound indication.
7) Sound prompt function:over-limit prompt of measured value, probe-off or finger-out prompt, low powerprompt.
8) Data memory function.
9) Thedata can be uploaded to the terminal equipment by wired mode.
10) Clockfunction.
11) Chargingfunction.
SpO2 measurement range: | 0 % ~ 100 % (resolution: 1 %) |
SpO2 measurement Accuracy: | 70 % ~ 100 %, ±2%; 0 %~69 %, unspecified |
PR measurement range: | 20 bpm ~ 250 bpm (resolution: 1bpm) |
PR measurement accuracy: | ±2 bpm or ±2 %, whichever is greater |
Accuracy under conditions of low perfusion: | low perfusion 0.4%, SpO2 accuracy: ±4%; PR accuracy: ±2 bpm or ±2%, whichever is greater. |
Light interference: | compared to the values measured in normal condition and ambient light condition, the deviation is less than ±1 %. |
Power consumption: | ≤ 100 mA |
Working voltage: | DC 3.6V ~ 4.2V |
Battery: | one 3.7 V rechargeable lithium battery |
Working time for battery: | 8 hours (theoretical value) |
Battery lifetime: | ≥ 500 times (charge and discharge times) |
Safety classification: | internally powered equipment, type BF applied part |
Accessories
One SpO2 probe
OneUSB data line
One User Manual
One power adapter (optional)
Physical characteristic
Dimension | 61mm (L) × 56 mm (W) × 24 mm (H) |
Weight | about 60 g (including one lithium battery) |
Optional configuration
SpO2 probe
Power adapter
Certification
CE FDA
