Basic Info.
Model NO.
YF-BN
Outlet Type
Barbed or Diss Outlet
Input Pressure
3000psi
Output Pressure
50psi
Relief Valve Pressure Range
0.35±0.05 MPa
Material
Brass and Aluminum Alloy
Medium
O2
Input Connection Screw Thread
G 5 / 8, Cga540, Male G 5 / 8, G3/4, DIN477 and Cg
Adjustable Flow
0-4,0-8,0-15,0-25lpm
Length
17cm or 11cm
Filtration
50 Microm
Transport Package
Carton
Trademark
Yufeng
Origin
China
HS Code
9018909000
Production Capacity
10000PCS/Momth
Product Description
Product Description
All series have passed the CE certificate
The main part uses the goodness copper, and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body
High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree; Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.

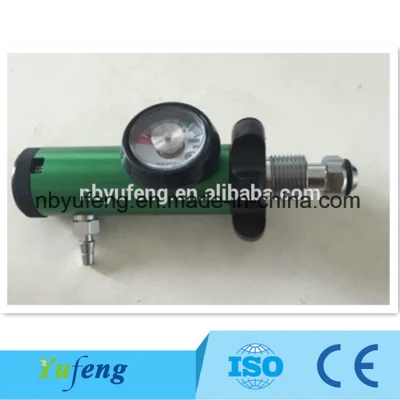

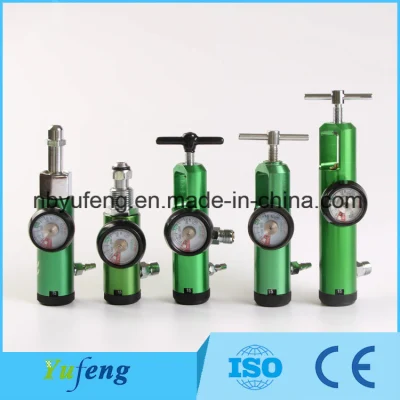

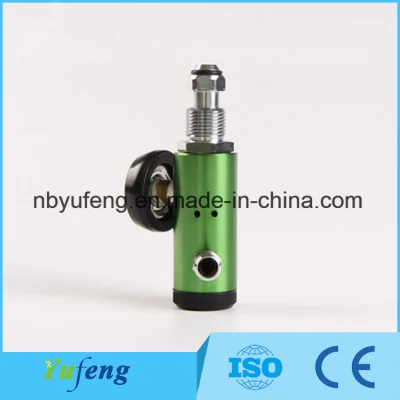

| Name | YF-BN American best seller medical oxygen regulator CGA540/FDA approved(Multi size) |
| Type | YF-BN |
| Inlet type | Click Reg with CGA-540 inlet |
| Outlet type | Barbed outlet or Diss outlet |
| Adjustable flow | 0-4,0-8,0-15,0-25LPM |
| Material | Aluminum alloy |
| Inlet pressure | 3000psi |
| Outlet pressure | 50psi |
| pressure guage | 35mm |
| knob | Plastic knob or aluminum knob anodized black |
| Weight | 20oz(550) |
| Length | 17cm or 11cm |
| filtration | 50 microm |
| Services | reply to you within 24 hours |
| delivery time | 15-25 days |
| warranty | 1 year |
