Basic Info.
Model NO.
YF-04B-11
Oxygen Flow Range
1-10 L / Min, 1-15L / Min
Input Pressure
15 MPa
Output Pressure
0.2-0 .3 MPa
Relief Valve Pressure Range
0.35±0.05 MPa
Material
Brass
Medium
O2
Input Connection Screw Thread
G 5 / 8, Cga540, Male G 5 / 8, G3/4, DIN477 and Cg
Accuracy
Grade 4
Humidifier Capacity
170ml
Certificate
Ce, ISO13485
Transport Package
Carton
Trademark
Yufeng
Origin
China
HS Code
9018909000
Production Capacity
10000PCS/Momth
Product Description
Product Description
All series have passed the CE certificate
The main part uses the goodness copper, and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body
High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree; Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.
| Name | YF-04B-11 cheapest used in 20Mpa high pressure automatic medical Oxygen Regulator |
| Type | YF-04B-11 |
| Gas | O2 |
| Input pressure | 15MPa |
| Output pressure | 0.2 ~ 0.3MPa |
| Flow control range | 1-10L/Min , 1-15L/Min |
| valve pressure range | 0.35 ± 0.05Mpa |
| Input connection screw thread | G5/8-14-RH,CGA540-RH,G3/4-14-RH,BULL NOSE,CGA-870 |
| Output connection screw thread | 8mm |
| Valve material | Brass |

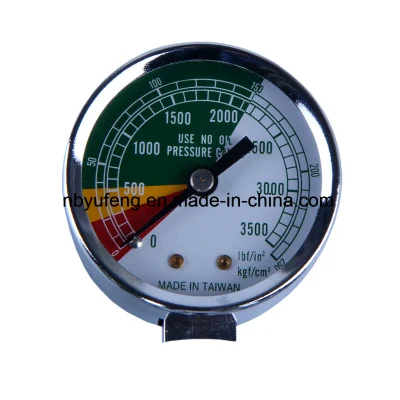

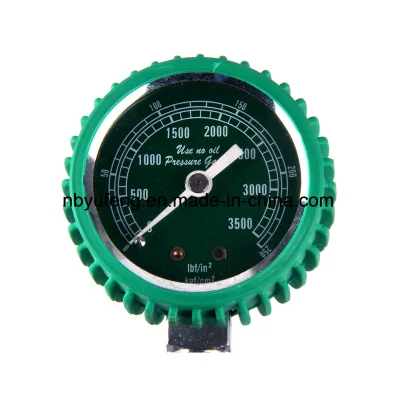

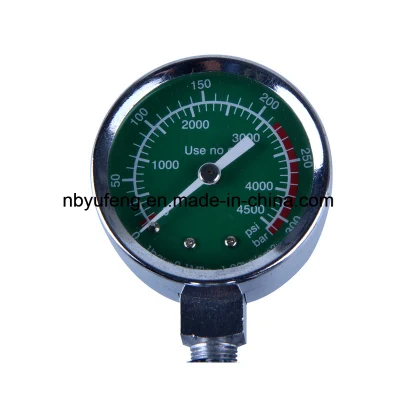

| Pressure gauge | 40mm |
Bottle material | PC |

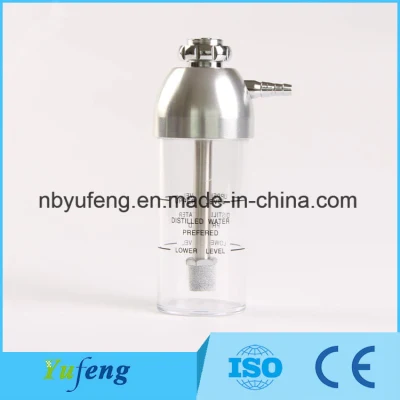

Humidifier capacity | 170ml |
| Services | reply to you within 24 hours |
| delivery time | 15-25 days |
| warranty | 1 year |
Products show
