Basic Info.
Power
＜50kW
Standard
Standard
Oxygen Cpncentrator Net Weight Per Unit
205kg
Oxygen Buffer Vessel Net Weight
120kg
Booster System Net Weight Per Unit
60kg
Oxygen Concentrator Import Gross Weight
250kg

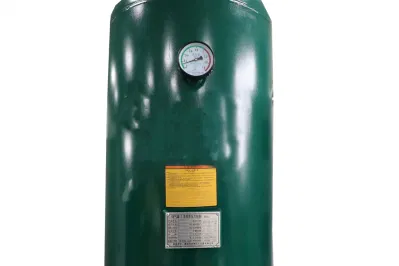

Oxygen Buffer Vessel Gross Weight
155kg
Booster System Gross Weight Per Pallet
95kg
Oxygen Concentrator Body Size
80X61X170cm
Booster System Body Size
93.5X57.5X147cm
Oxygen Concentrator Import Pallet Size
87.5X68.5X190cm
Booster System Import Pallet Size
100.5X64.5X167cm
Oxygen Buffer Vessel Volume
600L
Noise Level
<60dB(a)
O2 Purity
90%~96%
O2 Pressure(Oxygen Driving System)
0.5~2.5bar
Oxygen Pressure Booster System
0~4.5bar
Transport Package
Cartons or Pallet
Specification
3.87CBM
Trademark
Angelbiss
Origin
China
HS Code
90192000
Production Capacity
2000PCS/Year
Product Description

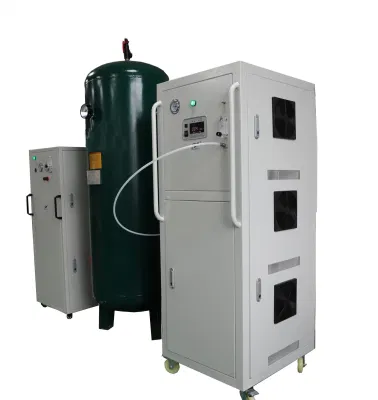

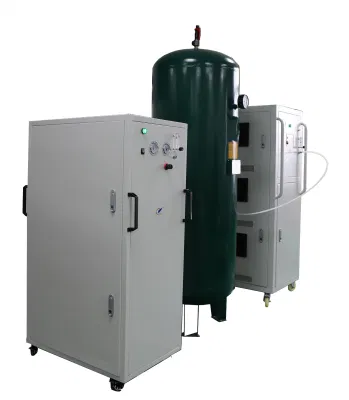

Triple System Applied in Medical High Purity Oxygen Supply System
AngelBiss, the first one to focus on fluctuation of an oxygen concentrator,the first one can control the fluctuation rate within 0.1%.
This series of medical molecular sieve central oxygen production equipment uses molecular sieve pressure swing adsorption principle to separate oxygen and nitrogen in the air to produce oxygen. It has the advantages of simple process flow, small footprint, low investment, convenient operation and maintenance, etc. The product oxygen purity can be adjusted arbitrarily according to actual needs, and the device has good adaptability. The whole set of equipment can be operated continuously and cyclically, which can be fully automated.
The oxygen system of ANGELBISS can be used to connect the oxygen supply pipelines of small hospitals and clinics, aquaculture, sewage treatment, etc., to provide a reliable source of continuous high-concentration oxygen.
PRODUCT COMPOSITIONP
The medical molecular sieve oxygen supply system consists of the oxygen concentrator host (including air compressor, molecular sieve adsorption tower, filter and control circuit), oxygen buffer vessel, and booster system.PRODUCT CLASSIFICATIONP
1 Electric shock protection typeAccording to the protection type, this product is classified as Class I equipment
2 Degree of protection against electric shock
According to the degree of protection, this product is BF type equipment
3 Waterproof type
According to waterproof type, this product is classified as ordinary equipment
4 Operation mode
Intermittent run
THE MAIN ALLLICATION OF EQUIPMENT
1 Oxygen source for centralized oxygen supply in hospital pipelines, oxygen concentration ≥90%2 Transportation, storage and use environment
2.1 Transportation and storage environment
This machine should be transported and stored under the following conditions
Ambient temperature range: -5ºC~55ºC;
Relative humidity range: 10%~80%;
Atmospheric pressure range: 86~106 KPa;
2.2 Use environment
Temperature: 5ºC~40ºC
Relative humidity: 30%~80%
Atmospheric pressure range: 86KPa~106KPa
PRODUCT INTRODUCTION
WHO IS ANGELBISS?
ANGELBISS, a promising brand has been registered at Germany, Malaysia, the USA and PRC China. AngelBiss Healthcare Inc, an eng ineering development center and the first company focus on fluctuation of oxygen concentrator and the only company capable of controlling the fluctuation rate within 0.1% when even oxygen output is at 7bar high pressure. AngelBiss team engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Oxygen Supply, Asthma Therapy and Diagnostic Therapy. With its own unique advantages and powerful engineering capabilities, AngelBiss has provided many high quality solutions to customers all over the word.
WHAT HAS ANGELBISS BEEN DOING DURING THE PANDEMIC?
AngelBiss and her partner in Malaysia are honored to have supported UNICEF@Oxygen Concentrators. We sincerely thank UNICEF Malaysia for this work, and AngelBiss also hopes to provide adequate care for more children during this difficult period.
AngelBiss donated ANGEL series oxygen concentrators to people in emergency need of oxygen therapy in Indonesia, Malaysia, Thailand, etc. during the epidemic. With the support of partners in these countries, oxygen concentrators were distributed to multiple government agencies and hospitals. AngelBiss has been working hard to fight the pandemic.
APPLICATION
AngelBiss is leading manufacturer of all flow range oxygen concentrators with advanced PSA technology in China. AngelBiss will provide different solutions according to the different needs of customer's applications.
For the oxygen demand of individual, family and small clinics, AngelBiss small flow oxygen concentrators will meet their demand. For large medical institutions and factories, AngelBiss can provide a complete set of oxygen supply systems, which are designed, manufactured, and installed on site for the application field. In addition to medical applications, AngelBiss oxygen concentrators can also be applied in industrial fields, including ozone generators, glass-work manufacturing, aquaculture/fish farming, wastewater treatment, industrial smelting, nitrogen and oxygen separation and other applications.
TESTING AND PACKAGING
AngelBiss implements strict quality control and product testing, and adheres to the principle of quality first.
Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.
Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.
AngelBiss all products are complied with the USA Technology quality standards and the best performance at its electronic life span. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe. AngelBiss ensure your safety in using its products, granting better use services to its distributor fans.
