Basic Info.
Model NO.
CBF05E-TA01
Structure
Centre Sealing
Seal Form
Auto Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Medium Temperature (120°C<T<450°C)
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Standard
API609 En593 BS5155 En1092 ISO5211 As2129
Application
Industrial Usage, Water Industrial Usage, Household Usage, Chemical Engineering
Certificates
Ce ISO Wras Acs Dnv FDA
Body Materials
Ci Di CF8m CF8 SS304 SS316 Duplex F51 F52 F53 2205
Disc Materials
CF8m CF8 SS304 SS316 Duplex F51 F52 F53 2205 2507
Stem
Ss416 F6a Ss431 17-4pH Monel K500
Transport Package
Plywood or Wooden Box
Specification
CE, ISO. JIS. ANSI
Trademark
WDS / WORLDS/OEM
Origin
Tianjin China (Mainland)
HS Code
8481804090
Production Capacity
10, 000, 000PCS/Year
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 90.00cm
Package Gross Weight
200.000kg

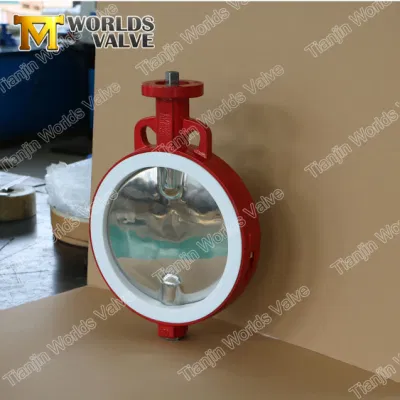

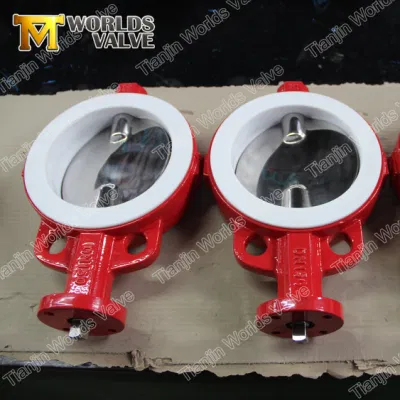

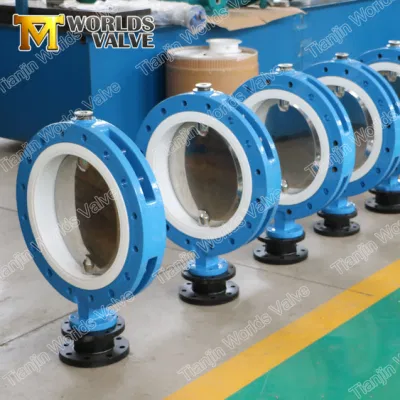

Product Description
Product Feature:
100% bi-directional tight shut-off.
Installationwithout restriction in direction of flow.
Reduced weight and overall dimensions.
Low pressure loss and reduced energy costs.
High Kv / Cv values.
Easy to clean and disinfect for potable water systems etc.
Self cleaning ( no residue will be trapped ).
Good resistance to corrosion.
Preservative
Main Material:
Technical Parameters:
**COMPANY INTRODUCTION
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
**Dimension Measurement &Inspection
**Assembly Workshop
**Packaging
**Certificates -- CE ISO WRAS ACS certificates
100% bi-directional tight shut-off.
Installationwithout restriction in direction of flow.
Reduced weight and overall dimensions.
Low pressure loss and reduced energy costs.
High Kv / Cv values.
Easy to clean and disinfect for potable water systems etc.
Self cleaning ( no residue will be trapped ).
Good resistance to corrosion.
Preservative
Main Material:
| Name | Material |
| Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |

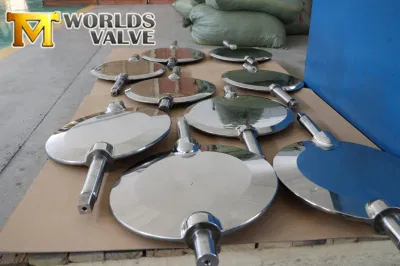

| Disc | Ductile Iron Carbon Steel Stainless Steel |
| Shaft | Stainless Steel Monel K500 |
| Seat | PTFE |
Technical Parameters:
| Size | DN50-DN300 | |
| Working pressure | 10Bar | |
| Shell | 15Bar | |
| Seal(Air) | 11Bar | |
| Operating Temperature | -20ºC~+180ºC | |
| Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
| Driving method | Hand Lever Worm Gear Electric Pneumatic | |
