Basic Info.
Model NO.
skz1050e-o2
Customized
Customized
Portable
Portable
Certification
CE
Gas
O2
Type
Electrochemical Gas Analyzer
Product Name
Oxygen O2 Gas Meter Testing Instrument Analyzer
Measure Range
0-25%Vol, 0-30%Vol
Resolution
0.01%Vol
CE Certification
CE Marks
Response Time
Less Than 8s
Download Function
Standard PC Software Download Data in Excel Format
Data Storage
Can Save Upto 100000 Groups of Data
Degree of Protection
IP66
Explosion-Proof
Exic II CT3 Gc
Transport Package
Customed Foam Inner to Fixed The Detector, Aluminu
Specification
27X23X11 cm
Trademark
SKZ
Origin
China
HS Code
9027100090
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
27.00cm * 7.50cm * 4.00cm
Package Gross Weight
0.500kg
Lead Time
14 days (1 - 1 Sets)
To be negotiated ( > 1 Sets)
To be negotiated ( > 1 Sets)
Product Description
★ Optional function
1). Optional fall alarm function to ensure the safety of underground workers is more secure2). Optional 8G large-capacity memory card, support one-click download function, if with 4 kinds of gases, Storage interval time is 5s, can be used for 7 years! And this function is
standard provided if the detector with optional air sampling rod
3). Optional PC storage software download, analysis and storage data, with EXCEL format
4). Optional external Bluetooth printer
| Gas Detected | Oxygen O2 | |
| Detection principle | Electrochemical principles | |
| Measure Range | 0-25%VOL, 30%VOL | |
| Resolution | 0.01%VOL | |
| Sensor life | 2-3years | |
| Precision | 2%FS | |
| Sampling method | Built-in stable flow pump, flow range: 0-500 ML/Min | |
| Modular structure | Can detect up to 1-4 kinds of gases | |
| Concentration unit | ppm, mg/m3, %VOL, %LEL, can be switched by one button | |
| Display | 3.5-inch color display, resolution 320*480 | |
| Display mode | Multiple display modes select-able:multi-channel data mode, multi-curve mode,single channel + single curve mode | |
| Data storage | Standard 16M capacity storage function, can save upto 100000 groups of data. Can be directly connected to the computer through USB, quickly download stored data , EXCEL format | |

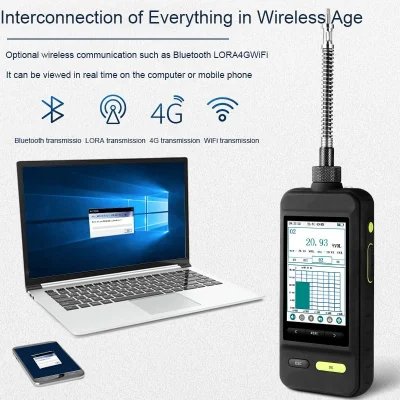

| Wireless transmission | (optional) Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional) | |
| Print | Built-in printer or external Bluetooth printer (optional with extra charge) | |
| Operating language | Chinese and English | |
| Battery capacity | 3800mA rechargeable | |
| Charging interface | USB charging interface, 5V/2A standard charger | |
| Filter device | Equipped with a multi-layer filter to efficiently filter oil, water and dust. | |
| Wireless network | Bluetooth (with print function), ZigBee, Lora+ (relay DTU), DTU (optional with extra charge) | |
| Network frequency | Lora (470M), DTU (2.4G) (optional with extra charge) | |
| Wireless trans. distance | Lora (1.6 km), DTU (unlimited) (optional with extra charge) | |
| Response Time | ≤ 8S | |
| Repeatability | ≤ ± 1% | |
| Zero shift | ≤ ± 1% (F.S / Year) | |
| Operating temperature | -20°C-50°C (optional flue gas sampling probe, up to 600°C , 1200°C smoke concentration) | |
| Working humidity | 0-95% RH (no condensation) (high humidity can be selected with filter drying device) | |
| Explosion-Proof | Exic II CT3, GC | |
| Alarm mode | Buzzer, LED and alarm status prompt on the display, fault alarm, pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional with extra charge) | |
| Dimensions | 270*75*41mm | |
| Recovery Time | ≤ 10S | |
| Linearity error | ≤ ± 1% | |
| Degree of protection | IP66 | |
| Weight | 400g | |
| Standard accessories | Manual, warranty card, power charger, carrying case, water and oil filter, data cable | |
| Optional accessories | Bluetooth printer, pressure sensor, high temperature rod, Metal extension rod, Bendable rod , Silicone hose, dry filter device, PC download software | |
