Basic Info.
Model NO.
OTR-O3
Test Standard
ASTM D3985
Test Range
0.01~6500
Resolution
0.001
Permeable Area
50 Cm2
Specimen Thickness
3 mm
Temperature Accuracy
0.1 Degree
Carrier Gas Flow
0~100 Ml/Mi
Trademark
Pubtester
Origin
Shandong, Jinan
Packaging & Delivery
Package Size
90.00cm * 80.00cm * 70.00cm
Package Gross Weight
100.000kg
Product Description

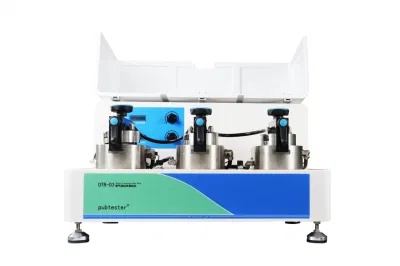

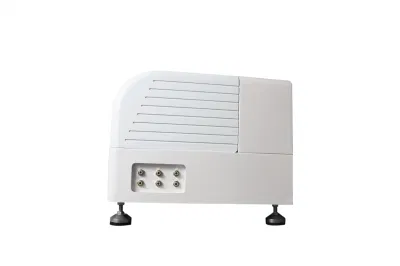

OTR-O3 ISO 15105-2 Equal pressure method film sheeting gas tansmission rate tester
OTR-O3 ISO 15105-2 Equal pressure method film sheeting gas tansmission rate tester, also called oxygen permeability Tester, is designed and manufactured based on the coulometric sensor method (as known as equal pressure method) and conforms to ASTM D3985. This instrument can be used to measure the oxygen transmission rate of barrier materials with high and medium barrier properties with high accuracy and high efficiency. The instrument has a patented integrated three test permeation cells, high-precision sensors, and built-in dedicated computer control system, providing accurate temperature, humidity, flow rate adjustment and control, with high test sensitivity and excellent repeatability of test results. OTR-O3 is applicable to the determination of oxygen permeability of plastic films, sheeting, paper, and other packaging materials used in food, pharmaceutical, medical apparatus, consumer products, photovoltaic and electronic industries, etc.
Technical Features
High Precision Advantages

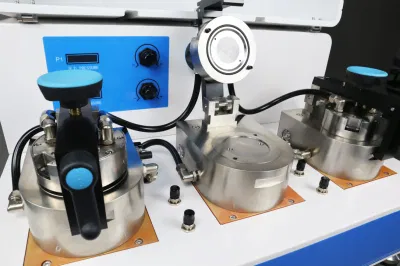

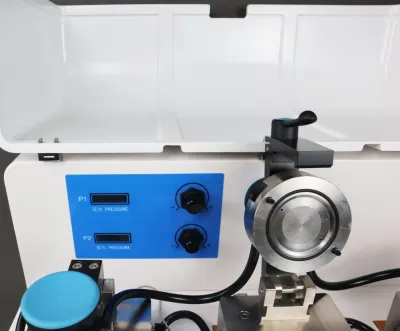

- The three permeation cells are completely independent, and can test three identical specimens or distinct specimens simultaneously
- Trace oxygen sensor, can measure oxygen content as low as ppb level; pA level micro current measurement, higher measurement accuracy

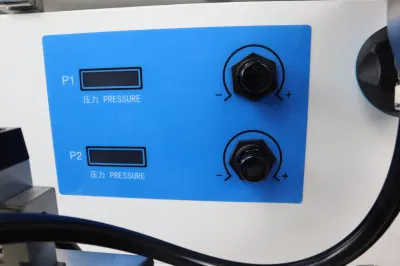

- Precise flow control, with professional piping system and flushing technology, effectively ensure the stability and cleanliness of the carrier gas
- Advanced sample installation anti-leakage technology to effectively ensure the overall sealing of the test chamber
- Equipped with patented non-fog humidifier, automatic and precise control of high humidity
- Semiconductor cold and hot bidirectional temperature control technology, which can increase or decrease temperature at will, with precise temperature control, making the system more stable;
- Core sensors and other components have multiple self-protection functions
- Short warm-up time, test conditions can reach the set requirements faster
Efficient and Intelligent
- Whole process monitoring, automatic recording, adjustable sampling rate, test process can be reproduced throughout
- The software functions are professional and intuitive, personnel permissions are strictly graded, and report output forms are diverse
- Intelligent air-saving function can reduce the consumption of test gas
- Optional accessories extend the capability to testing containers
- The system is controlled by a microcomputer, equipped with a tablet and a menu-type interface, which is convenient for users to quickly and intuitively view the test data and results
- Equipped with RS232 data interface and computer software to facilitate data transfer
- The software complies with the requirements of China's "Good Manufacturing Practice for Pharmaceutical Products" (GMP)
Test Principle
The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure. The upper chamber contains oxygen or air and the lower chamber is slowly purged by a stream of nitrogen. Due to the concentration difference between the two chambers, oxygen molecules permeate through the specimen into the nitrogen side and are taken to the coulometric sensor where proportional electrical signals are generated. The oxygen transmission rate is then obtained by analyzing the signals and calculating the volume of oxygen measured by the sensor.Applications
| Basic Application | Films | Plastic films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, glass fiber aluminum foil composite films and many others |
| Sheeting | PP, PVC and PVDC sheets, metal foils, rubber pads, silicon wafers and other sheeting materials | |
| Packages | Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for toothpaste, jelly and yogurt cups | |
| Extended Application | Closure Systems | Oxygen barrier property of various closure systems for bottles cartons and pouches |
| Solar Back-Sheets | Oxygen permeability test of solar back-sheets | |
| Plastic Tubes | Oxygen permeability test of various sorts of tubes, e.g cosmetic tubes | |
| Blister Packs | Test oxygen transmission rate of the whole blister packs | |
| Automotive and Small Engine Fuel Tanks | Permeability of plastic fuel tanks | |
| Battery Plastic Shell | Oxygen transmission rate of battery plastic shell |
Technical Specifications
| Specifications | OTR-O3 |
| Test Range (film) | 0.01~6500 (cc/m2.24h) |
| Resolution | 0.001 |
| Permeable Area | 50 cm2 (Customizable) |
| Specimen Thickness | ≤3 mm |
| Number of Specimens | 3 |
| Number of Sensor | 3 |
| Test Mode | Three chambers independent |
| Temperature Control Range | 5ºC~95ºC (Temperature control device is optional) |
| Temperature Accuracy | ±0.1ºC |
| Carrier Gas | 99.999% High-purity Nitrogen (outside of supply scope) |
| Carrier Gas Flow | 0~100 mL/min |
| Carrier Gas Pressure | ≥0.2MPa |
| Port Size | 1/8inch metal tubing |
| Instrument Dimension | 740 mm (L) x 415 mm (W) x 430 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 50 kg |
Standards
ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, ISO 15105-2, JIS K7126-B, YBB 00082003, GB/T 19789
Configuration
Standard configuration: Instrument, Vacuum grease, Sampler, Calibration film, Nitrogen/Oxygen pressure regulator
Optional configuration: Container test accessories, Container test temperature controller, Air Compressor
Note: Nitrogen and Oxygen are prepared by customer.
FAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
