Basic Info.
Product Description
Product introduction:
Finger pulse oximetry is an economical and accurate method for measuring pulse rate and blood oxygen saturation through finger.It also shows the volume waveform to ensure accuracy.The unique PI index effectively reflects the pulsating blood flow, 133R blood oxygen has respiratory rate monitoring function, self-regulating finger clip and simple one-button design for easy operation.Screen level 5 brightness adjustable, small size, easy to carry.Suitable for daily use, measuring your health status at any time.
It is widely used in family, hospital, oxygen bar, sports health care (used before and after exercise, not recommended in the process of exercise), community medical treatment and other areas.It is suitable for highland travel and mountaineering enthusiasts, patients (patients who stay at home for a long time or patients in emergency condition), elderly people over 60 years old, people who work more than 12 hours a day, sports people (professional sports training or sports enthusiasts), enclosed environment workers, etc.This product is not suitable for continuous monitoring of the patient.

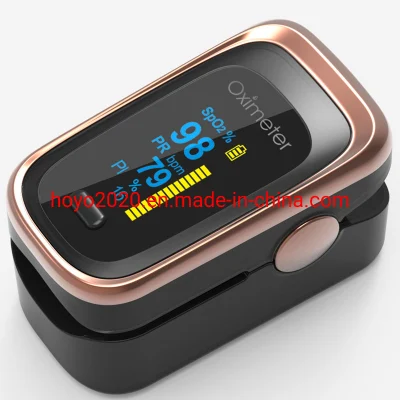

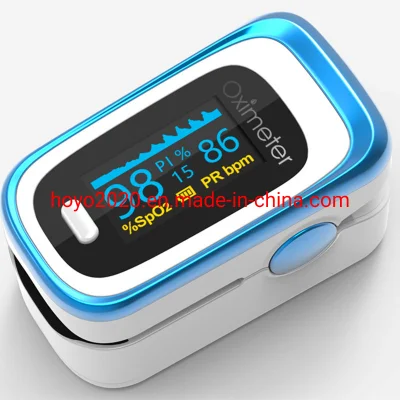

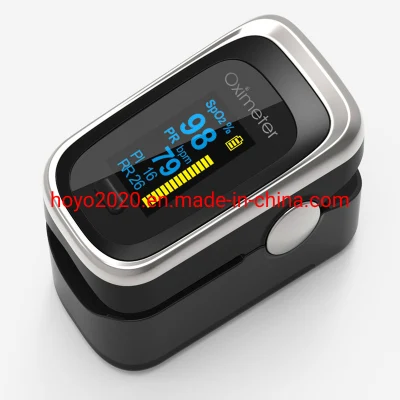

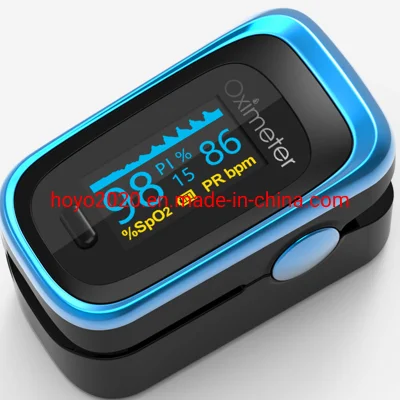

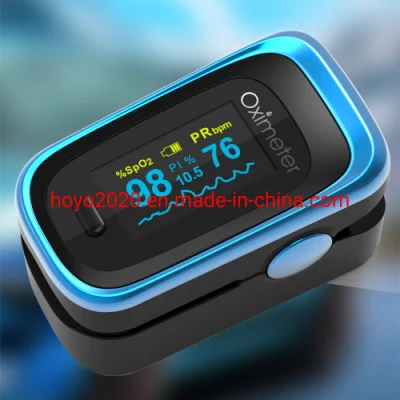

★ Product name :HY-JZ130R finger pulse oximeter
★ Product features :
1. Display parameters: blood oxygen SpO2 value, pulse PR value, blood oxygen bar chart, pulse waveform, PI (perfusion index), respiratory rate monitoring parameters
2. Display screen: The product adopts blue and yellow OLED display with 5-level brightness adjustable
3. Display mode: four directions, four display modes 4.Energy saving and environmental protection: low power consumption, equipped with two AAA batteries can last more than 40 hours 5.Voltage warning: when the battery voltage is too low may affect the normal use, there is a low voltage warning 6.Automatic shutdown: when no signal is generated, the product will automatically shut down after 8 seconds 7.Advantages: integrating blood oxygen probe and processing display module, the product is simple to use, low power consumption, small size, light weight, easy to carry
★ Product parameters :
Oxygen saturationMeasurement range: 70%~99%
Pulse frequencyMeasuring range: 30 bpm~240bpm oxygen saturation Measuring accuracy: 70% ~ 99% plus or minus 2%, 70% or less does not define oximetry Measuring accuracy: + / - 1 BPM or measured value plus or minus 1% (take larger value)
Oxygen saturationResolution: blood oxygen saturation ±1%
Blood perfusion index: ≥0.2%,±0.1% Sleep monitoring time: none
Power consumption: below 30 ma automatic shutdown: no with my finger,8 seconds automatically shutdown temperature 5 ºC to 40 ºC storage humidity: 15% ~ 80%, 10% ~ 80% atmospheric pressure storage, battery model 70 kpa~106kpa: 2 * 1.5 V (section 2 AAA alkaline, the product does not contain batteries) material: ABS+PC
★ Packing parameters :
Product size:56*30*29mm
Weight of bare machine:28 g color box size: 87 * 60 * 38 mm
Weight of color box after packing:52g (battery not included)
Carton size:430*340*200mm Weight per box:Packing quantity:100 sets
Package Contents:
- 1 x fingertip oximeter (PE bag)
-1 x lanyard
- 1 x white card lining
- 1 x English User's Manual
-1 x color box
Monitoring parameters, SpO2:
Oxygen hemoglobin saturation (SpO2)
Type of Patient: For all persons over 4 years of age
Measuring range: 70-99%
Analytic: 1%
Accuracy: 70%-99% ±2%
Oxygenometer saturation: an important indicator reflecting the oxygen status in the body. It is generally believed that the normal value of blood oxygen satiety should not be less than 94%, and less than 94% is considered as insufficient oxygen supply.
Heart rate pulse repetition rate (PR)BPM:
Measuring range :30 BPM - 250 BPM
BPM solutions :1
Accuracy :1% or 1 BPM
Heart Rate: It is the number of times the Heart beats per minute.That is, in a certain period of time, the heart beat fast or slow meaning.The same person, the heart rate slows down during quiet or sleep, and increases during exercise or emotional agitation!
PI value indicated by blood perfusion:
The measurement range is 0.2%-30% PI
Analytic: 1%
PI is the blood Perfusion Index (PI), which reflects the pulse of blood flow, that is, reflects the blood Perfusion ability.The larger the pulsating blood flow, the larger the pulsating component and the larger the PI value.Therefore, both the site of measurement (skin, nails, bones, etc.) and the patient's own blood perfusion (arterial blood flow) will affect the PI value.Since sympathetic nerves affect heart rate and arterial blood pressure (which affects the pulse and arterial blood flow), the body's neuroregulatory system or mental state can also indirectly affect PI values.Therefore, the PI value will be different under different anesthetic states.
Respiratory rate monitoring function RR value:
Respiratory rate is a medical term for the number of breaths per minute, and a rise and fall in your chest is a breath, one in and one out.The number of breaths per minute is called respiratory rate.Breathing is a process of gas exchange between the internal and external environment of the human body, through which the human body takes in oxygen and exhales carbon dioxide, so as to maintain normal physiological functions.
A normal adult breathes about 16 to 20 times per minute.The ratio of breath to pulse is 1:4, that is, the pulse beats four times per breath.Children breathe faster than adults, up to 20 ~ 30 times per minute;A newborn can breathe at a rate of 44 breaths per minute.Breaths per minute.Respiratory rate varies with age, sex, and physiological state.
4 parameters of oximeter: SpO2, Pr, Pi, Rr
