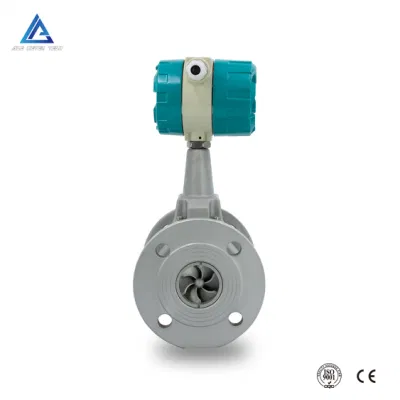

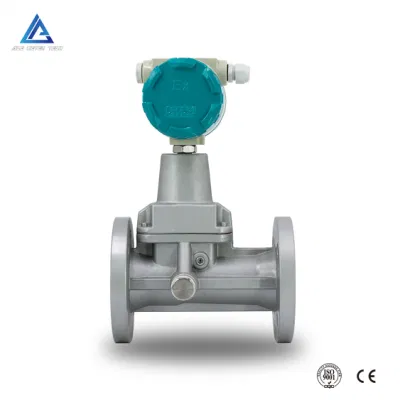

Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen

Get high-quality Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen from our factory. Shop now for reliable and accurate flow measurement.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ACE-LUX
Application
Energy Metering
Type
Vortex Flow Meter
Measuring Media
Gas
Measuring Principle
Mechanics
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, ISO
Transport Package
Paper Box; Pollywood Carton
Specification
Depends On Flow Meter Size
Trademark
ACE
Origin
Made in China
HS Code
9026100000
Production Capacity
30000 Sets/Year

Product Description

PN16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen
Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen
Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen
Item Description
Type Integrated Type
Available Medium Gas, Oxygen
Range of Diameter DN15-DN200  1/2"-8"
Accuracy 1.50%
Measure Range Ratio 1:10
Medium Temperature -20-80ºC
Rated Pressure Range PN16(High Pressure Customize Available)
Body Material Stainless Steel 304
Aluminum Alloy
Connection Flange(GB,DIN,ANSI,JIS,HG or Customize)
Straight Pipe Section 10*DN Upstream 5*DN Downstream
Display LCD Display with Adjusting Button
  Gas Temperature and Pressure Compensation(@20ºC,1 ATM)
Power Supply 24VDC(8-36VDC)
3.6V Lithium Battery(Life Time 2-3 Years)
Signal Output 4-20mA
Frequency/Pulse
Communication Protocol RS485 MODBUS
HART
Electricity Entry M20*1.5
1/2" NPT
Protection Grade IP65
Explosion Proof Grade ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter)
Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen Pn16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen
PN16 Pressure Rating Vortex Precession Flowmeter Swirl Vortex Precession Flow Meter for Oxygen
