Basic Info.
Model NO.
MD-S281
Type
Digital Display
Accuracy
0.2%Fs or 0.5%
Display
Digital
Application
Industrial
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Size
143.5mmx75mmx40.5mm
Transport Package
Carton
Specification
0.5kg
Origin
Shanghai
HS Code
9026209090
Production Capacity
100000/Year
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 15.00cm
Package Gross Weight
0.500kg
Product Description

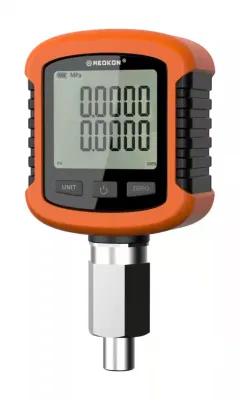

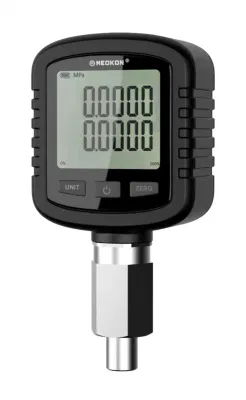

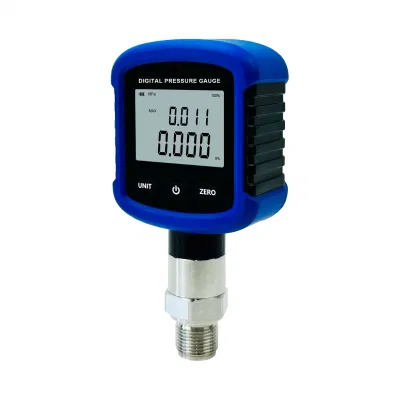

MD-S281 is a digital pressure gauge with a built-in high-precision pressure sensor, which can accurately display pressure in real time, and has the characteristics of high precision and good long-term stability.

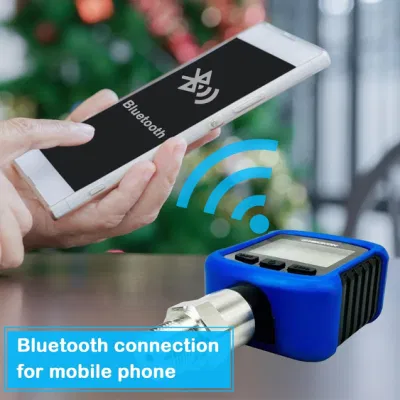

This digital pressure gauge is equipped with a large-size LCD liquid crystal display, which has multiple functions such as zero reset, backlight, power on and off, unit switching, low voltage alarm, etc. It is easy to operate and install. The product adopts the overall casing with rubber, which has good shock resistance and can measure gases, liquids, oils and other media that are not corrosive to stainless steel. This series of products supports Bluetooth applet configuration parameters, including: pressure value display, acquisition rate modification, reset operation and other settings.

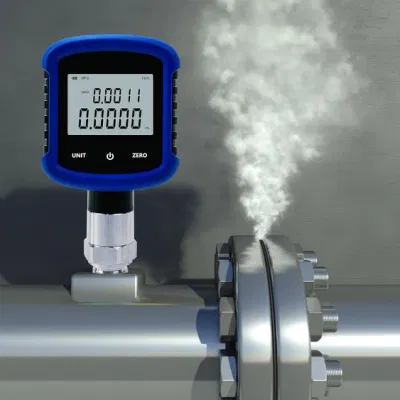

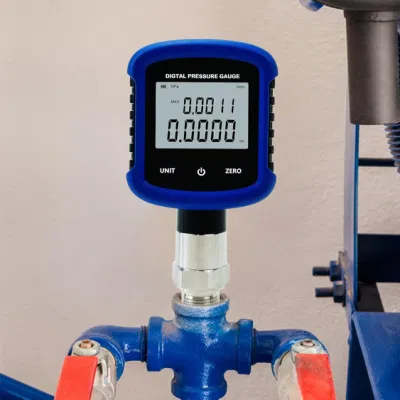

MD-S281 digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.
Technical Characteristics:
Technical Features:The product is beautiful, the whole shell is covered with plastic, and the hand feels delicate
Large LCD screen, support multiple unit switching
Support reset, backlight, power on and off, Bluetooth connection, multiple functions Low power consumption design, 2 AA batteries, battery life 4~5 months
Dial orientation can be rotated 330°
Application:
Machinery and electronic industrySupporting equipments of instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge
Specification:
| Range | Negative/compound pressure:-0.1~0...0.1...1.6MPa Differential pressure: 0-10..40....60kPa Noraml pressure:0~0.1...1.0...6MPa High Pressure:0~10...25...60MPa |
| Overload Capacity | 200%FS |
| Backlight color | White |
| Dimension | 143.5*75*40.5mm |
| ACC | 0.5%FS,0.2%FS |
| Long-term Stability | Typical +0.3%FS/year |
| Operating Temperature | -20~ 65C |
| Electrical protection | Anti-electromagnetic interference design |
| Measuring medium | Oil, water, gas and other stainless steel corrosion free medium pressure |
| Connection | M20*1.5, G1/4 or customized |
| Connection material | 304 stainless steel |
| Shell material | TPE+ABS |
| Product Features | Turn on/off backlight clear zero unit switch extreme value record Bluetooth connection |
| Power supply voltage | 3V (2 AA batteries) |
| Power display | Four sections display |
| Dial | Can rotate the dial at 330 degrees |
| Pressure unit | MPa,bar, kgf ,mH20,PS,kPa,mmHg,mBAR,mmH20,Pa,inWC |
| Protection level | IP54 |
