Basic Info.
Model NO.
BM-870BD
Specification
CE, ISO
Trademark
CBMCARE(OEM Welcome)
Origin
China
HS Code
9019200000
Production Capacity
30, 000PCS/Month
Product Description

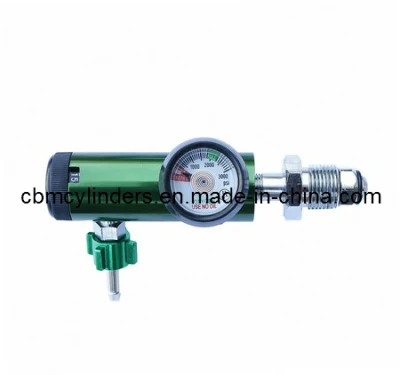

Pin Index Oxygen Regulator With Two Check Valves, CGA870 Pin Index O2 Regulators, PIN Index Medical Aluminum Oxygen Regulator(Full size) for Medical Gas Oxygen Therapy System.
*Specs of Pin Index Oxygen Regulator With two Check Valves:
-Body Style: CGA870 Pin index style;
-Brass Inlet Retainer;
-Relief Valve, Piston, Rotor;
-Flow Control Housing, Barb Outlet;
-Silicone: O-rings
-Sintered Bronze: 40 Micron Inlet Filters;
-Material: Lightweight aluminum alloy body, with brass internal;
-Outlet: Barb outlet(or Diss outlet);
-Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-Output pressure: 50PSI;
-Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-T-handle with plastic cover, Inlet Filter Retainer, Brass/Viton washer seal;
-Diameter: 1 3/8" Nominal
-Length: 92mm approximately;
-G. W.: 390g;
-Packaging: 20PCS/CTN;
-Warranty: 1 year after our dispatch.
-OEM is really welcome.
*Features of this type of Pin Index Oxygen Regulator With Two Check Valves:
-Body Finish: Clear blue Anodized, Laser Etched;
-The maximum inlet pressure of our click-style medical gas regulator is 3000psi(ANSI)/210bar(CE);
-Chromed plated aluminum/brass body with brass internal, high pressure chamber for durability & safety;
-Neoprene diphram with internal satty valve protects against over-pressurization;
-Sintred filter inl for additional safety and longer life;
-The standard 2'' dmeer inlet pessre gauges 0~4000p by UL approved;
-Polycarbonate inne and outlet tubes provide greater accuracy, durability &safety;
-Both medical gas regulators with outlet flow control valve 90° & 180 ° Are available;
-The standard preset outlet pressure of our medical gas regulator is 50psi(ANSI), for bilizing and accuracy flowing';
-USA and international standard inlet and outlet thread sizes are available.
*About Us:
We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:
-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting;
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com
*Specs of Pin Index Oxygen Regulator With two Check Valves:
-Body Style: CGA870 Pin index style;-Brass Inlet Retainer;
-Relief Valve, Piston, Rotor;
-Flow Control Housing, Barb Outlet;
-Silicone: O-rings
-Sintered Bronze: 40 Micron Inlet Filters;
-Material: Lightweight aluminum alloy body, with brass internal;
-Outlet: Barb outlet(or Diss outlet);
-Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-Output pressure: 50PSI;
-Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-T-handle with plastic cover, Inlet Filter Retainer, Brass/Viton washer seal;
-Diameter: 1 3/8" Nominal
-Length: 92mm approximately;
-G. W.: 390g;
-Packaging: 20PCS/CTN;
-Warranty: 1 year after our dispatch.
-OEM is really welcome.
*Features of this type of Pin Index Oxygen Regulator With Two Check Valves:-Body Finish: Clear blue Anodized, Laser Etched;
-The maximum inlet pressure of our click-style medical gas regulator is 3000psi(ANSI)/210bar(CE);
-Chromed plated aluminum/brass body with brass internal, high pressure chamber for durability & safety;
-Neoprene diphram with internal satty valve protects against over-pressurization;
-Sintred filter inl for additional safety and longer life;
-The standard 2'' dmeer inlet pessre gauges 0~4000p by UL approved;
-Polycarbonate inne and outlet tubes provide greater accuracy, durability &safety;
-Both medical gas regulators with outlet flow control valve 90° & 180 ° Are available;
-The standard preset outlet pressure of our medical gas regulator is 50psi(ANSI), for bilizing and accuracy flowing';
-USA and international standard inlet and outlet thread sizes are available.
| Item Name | Model | Gas | Outlet Pressure | Flow Rate | Gauge Pressure |
| (BLUE)Pin Index Oxygen Regulator With Two Check Valves | BM-870BD | Oxygen | 50psi | 0~4 0~8 0~15 0~25 | 0-3000psi |
We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting;
What we can promise for you:*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com
