Basic Info.
Specification
1500*900*1500-2400*1600*3100+1000
Trademark
jiaye
Origin
Yancheng
HS Code
84196011
Production Capacity
600sets|Year
Product Description
PSA oxygen generator principle description
* The purity of the product can be adjusted to a certain extent with the change of flow;
* Work under medium and low pressure, safe and energy-saving;
* Simple equipment and easy maintenance
* Touch screen control, fully automatic unmanned operation.
3. The principle of pressure swing adsorption
In the case of adsorption equilibrium, when any kind of adsorbent adsorbs the same gas, the higher the gas pressure, the greater the adsorption capacity of the adsorbent. Conversely, the lower the pressure, the smaller the adsorption capacity.
Introduction to the characteristics and functions of Jiaye Oxygen
1. The adsorption tower adopts advanced combined coconut pad compaction technology. It enters the working state when the oxygen generator starts to work. In the working state, the molecular sieve is always pressed tightly, and the molecular sieve will not be crushed at the same time, which avoids the high-speed airflow. The phenomenon of molecular sieve powdering caused by impact. Compared with spring compression, cylinder compression, and airbag compression devices, this compression device is more reliable and more convenient for maintenance.
2. The advanced lotus-shaped component design fully considers and avoids the high-speed impact of the gas on the molecular sieve during the adsorption process, avoids the pulverization of the molecular sieve caused by the high-speed impact of the gas flow, and avoids the powdered powder from entering the pipeline and valve. Valve leakage, jamming, etc.
3. The professional blizzard combined filling technology makes the molecular sieve packed more uniformly and densely, ensuring that the molecular sieve does not produce a fluidized state during the adsorption process, and there is no need to regularly supplement the expensive molecular sieve.
4. The original molecular sieve composite bed structure ensures that the water content of the air entering the molecular sieve is low, so that the molecular sieve will not absorb excessive moisture and affect the decrease of mechanical strength, which is beneficial to the long-term service life of the molecular sieve.
5. Jiangsu Jiaye company adopts German imported valves, the response speed is 0.02 seconds, and the normal state continuous switching reaches more than 2 million times. It has the characteristics of simple structure, reliable sealing, and fast closing speed. It is the fundamental guarantee for oxygen purity and reliable equipment operation. .
6. The intelligent controller of the international famous brand-Japan's Omron PLC programmable controller and the BURKERT two-position three-way solenoid valve imported from Germany are selected to ensure the continuous and reliable operation of the nitrogen generator.

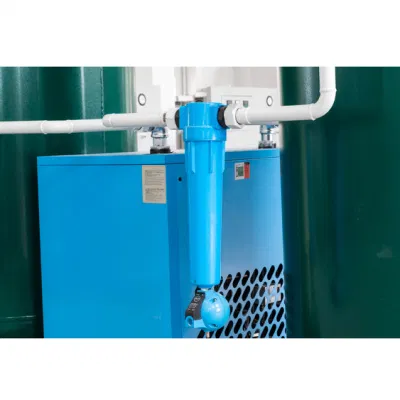

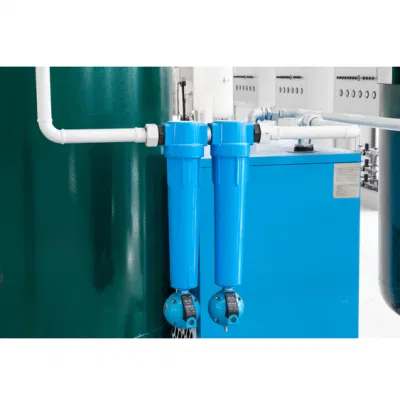

7. The use of stable and excellent air source purification refrigeration dryers and other supporting equipment, including the refrigeration dryer, the filter automatically drains, and the filter housing has a pressure difference meter to observe the working conditions of the filter at any time to ensure air quality and provide a good air source ;

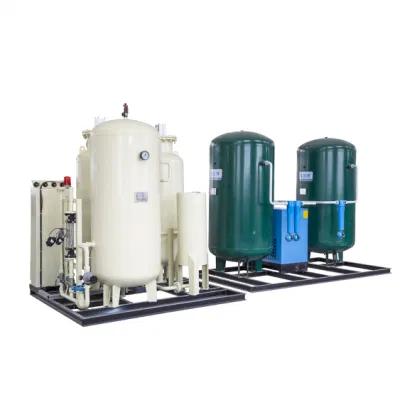

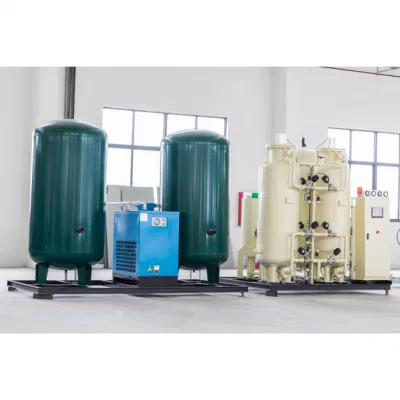

8. The system equipment is equipped with pressure gauges, safety valves, matching flanges and other pipeline accessories. The complete set of equipment is assembled with a bottom frame. The internal pipeline valves have been connected. The site positioning and installation are extremely convenient, and only external pipelines need to be connected. .
9. Detailed equipment operation, maintenance, and training plans are considered for users to ensure the correct operation and maintenance of management operators.
Company Profile
Since the establishment of Jiaye in 2006, Jiaye Company has been helping our customers to provide solutions to achieve the lowest cost on-site nitrogen production and the highest productivity of related equipment. The sustainable development of Jiaye will continue to become a reality in the future. Will actively promote changes in the entire industry. To
In 2019, the production plant of Jiaye Technology (Dongtai) Co., Ltd. was established in order to serve customers well. At present, the jailer production plant has a manufacturing plant of approximately 28,500m² in Jiangsu, a R&D center, a modern office space, and an area of 2,000m². ²Parts Center, about 100 employees.
In 2020, Jiaye's sales revenue will reach 4.5 million U.S. dollars. Jiaye Company is a leading manufacturer and provider of on-site nitrogen production, oxygen production equipment, ammonia decomposition hydrogen production and nitrogen repurification equipment, compressed air purification equipment, and system equipment. Jiaye company provides services throughout the product life cycle, and has leading technology and decades of product manufacturing experience expertise. Therefore, Jiaye Company stands out, provides extraordinary value and helps customers to achieve cost-competitive success in production.
1. Pressure Swing Adsorption Oxygen Generation System Pressure Swing Adsorption (PSA) is an advanced gas separation technology, which has an irreplaceable position in the field of gas supply in today's world.
2. PSA technology has the following advantages:* The purity of the product can be adjusted to a certain extent with the change of flow;
* Work under medium and low pressure, safe and energy-saving;
* Simple equipment and easy maintenance
* Touch screen control, fully automatic unmanned operation.
3. The principle of pressure swing adsorption
In the case of adsorption equilibrium, when any kind of adsorbent adsorbs the same gas, the higher the gas pressure, the greater the adsorption capacity of the adsorbent. Conversely, the lower the pressure, the smaller the adsorption capacity.
Introduction to the characteristics and functions of Jiaye Oxygen 1. The adsorption tower adopts advanced combined coconut pad compaction technology. It enters the working state when the oxygen generator starts to work. In the working state, the molecular sieve is always pressed tightly, and the molecular sieve will not be crushed at the same time, which avoids the high-speed airflow. The phenomenon of molecular sieve powdering caused by impact. Compared with spring compression, cylinder compression, and airbag compression devices, this compression device is more reliable and more convenient for maintenance.
2. The advanced lotus-shaped component design fully considers and avoids the high-speed impact of the gas on the molecular sieve during the adsorption process, avoids the pulverization of the molecular sieve caused by the high-speed impact of the gas flow, and avoids the powdered powder from entering the pipeline and valve. Valve leakage, jamming, etc.
3. The professional blizzard combined filling technology makes the molecular sieve packed more uniformly and densely, ensuring that the molecular sieve does not produce a fluidized state during the adsorption process, and there is no need to regularly supplement the expensive molecular sieve.
4. The original molecular sieve composite bed structure ensures that the water content of the air entering the molecular sieve is low, so that the molecular sieve will not absorb excessive moisture and affect the decrease of mechanical strength, which is beneficial to the long-term service life of the molecular sieve.
5. Jiangsu Jiaye company adopts German imported valves, the response speed is 0.02 seconds, and the normal state continuous switching reaches more than 2 million times. It has the characteristics of simple structure, reliable sealing, and fast closing speed. It is the fundamental guarantee for oxygen purity and reliable equipment operation. .
6. The intelligent controller of the international famous brand-Japan's Omron PLC programmable controller and the BURKERT two-position three-way solenoid valve imported from Germany are selected to ensure the continuous and reliable operation of the nitrogen generator.
7. The use of stable and excellent air source purification refrigeration dryers and other supporting equipment, including the refrigeration dryer, the filter automatically drains, and the filter housing has a pressure difference meter to observe the working conditions of the filter at any time to ensure air quality and provide a good air source ;
8. The system equipment is equipped with pressure gauges, safety valves, matching flanges and other pipeline accessories. The complete set of equipment is assembled with a bottom frame. The internal pipeline valves have been connected. The site positioning and installation are extremely convenient, and only external pipelines need to be connected. .
9. Detailed equipment operation, maintenance, and training plans are considered for users to ensure the correct operation and maintenance of management operators.
Company Profile
Since the establishment of Jiaye in 2006, Jiaye Company has been helping our customers to provide solutions to achieve the lowest cost on-site nitrogen production and the highest productivity of related equipment. The sustainable development of Jiaye will continue to become a reality in the future. Will actively promote changes in the entire industry. To
In 2019, the production plant of Jiaye Technology (Dongtai) Co., Ltd. was established in order to serve customers well. At present, the jailer production plant has a manufacturing plant of approximately 28,500m² in Jiangsu, a R&D center, a modern office space, and an area of 2,000m². ²Parts Center, about 100 employees.
In 2020, Jiaye's sales revenue will reach 4.5 million U.S. dollars. Jiaye Company is a leading manufacturer and provider of on-site nitrogen production, oxygen production equipment, ammonia decomposition hydrogen production and nitrogen repurification equipment, compressed air purification equipment, and system equipment. Jiaye company provides services throughout the product life cycle, and has leading technology and decades of product manufacturing experience expertise. Therefore, Jiaye Company stands out, provides extraordinary value and helps customers to achieve cost-competitive success in production.
