Basic Info.
Product Description
Product Name: oxygen flowmeter with humidifier bottle
Model: LW-FLM-6
Product Description:

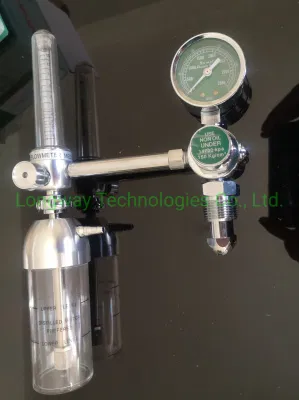

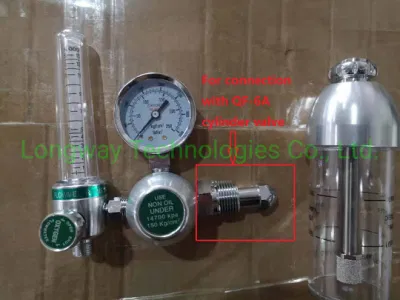

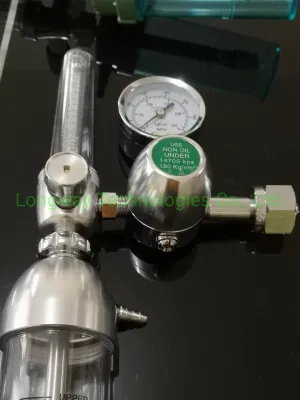

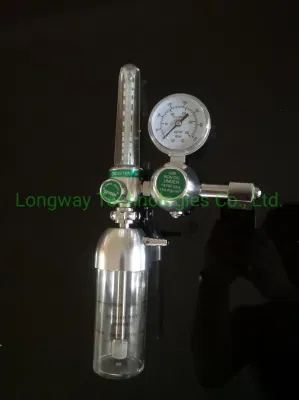

Oxygen flowmeter with regulator and humidifier bottle is used in connection with oxygen cylinders. As oxygen from cylinders has very high pressure, an oxygen regulator is needed to adjust the oxygen pressure to be low enough before it goes to patients.
Flow rate:1-10L/min ,1-15L/min
Specifications:
Flow rate | 1-10L/min; 1-15L/min |
Gas type | oxygen |
Input pressure | 0.35Mpa |
Inlet thread | M14 X1.5-RH 1/4NPT-18-RH |
Outlet thread | 8mm |
Humidifier bottle capacity | 200ml |
Adaptor type | German type (DIN), French type (AFNOR). American type (Ohmeda) British type, Japanese type |
| Flow rate | 1-10L/min; 1-15L/min |
| Tolerance of flow accuracy | ±0.4 |
| Gas type | oxygen |
| Input pressure | 15Mpa |
| Outlet Pressure | 0.2-0.3Mpa |
| Inlet thread | G5/8-14-RH CGA540-RH G3/4-14-RH |
| Outlet thread | 8mm |
| Humidifier bottle capacity | 200ml, autoclavable at 121 degree |
| Adaptor type | AFNOR, DIN, Ohmeda, Chemetron, MK IV, Kawasaki available |
| Usage | For use with oxygen cylinder, etc. |
Product Name: oxygen flowmeter with humidifier bottle
Model: LW-FLM-6
Product Description:
Oxygen flowmeter with humidifier bottle and oxygen regulator is used in connection with oxygen cylinders. It can be connected with adaptors of different types, such as French standard AFNOR, British standard, German standard DIN, American standard Ohmeda or Japanese standard.
Flow rate:1-10L/min ,1-15L/min
Specifications:
Gas type:oxygen
Input Pressure:15Mpa;
Outlet Pressure:0.2-0.3Mpa;
Inlet thread:
G5/8-14-RH
CGA540-RH
G3/4-14-RH
Output thread:8mm
Flow rate:1-10L/min ,1-15L/min
Humidifier capacity:200ml
With safety valve
Autoclavable, max temperature 121ºC

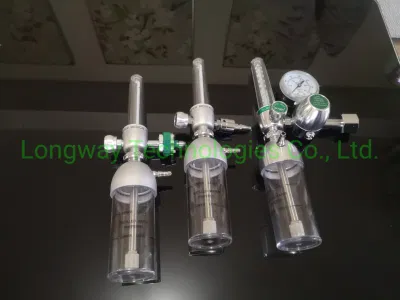

Besides the above type LW-FLM-6, we have LW-FLM-5 type of oxygen regulator with flowmeter and humidifier bottle. The functions are the same.
