Basic Info.
Model NO.
ptfe smooth hose ss304
Contraction Percentage
None
Tensile Strength
20~45 MPa
Working Temp
-70c~+260c
Usage
Chemical, Mechanical, Automotive, Food, Medical
Braided
Stainless Steel
Advantages
Less Residue Fluid
Factory Certifications
ISO 9001, ISO 13485
Feature
Non-Stick, Non-Toxic
Application
Chemical, Medical, Electrical, Food Industries
MOQ
50 Meters
Production Time
15 Days
Transport Package
Plastic Bag+Pallet
Specification
customization
Trademark
JY
Origin
Guangdong
HS Code
391732000
Production Capacity
100000/Month
Packaging & Delivery
Package Size
45.00cm * 45.00cm * 15.00cm
Package Gross Weight
7.000kg
Product Description

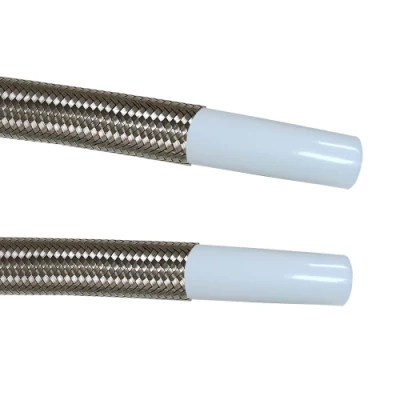

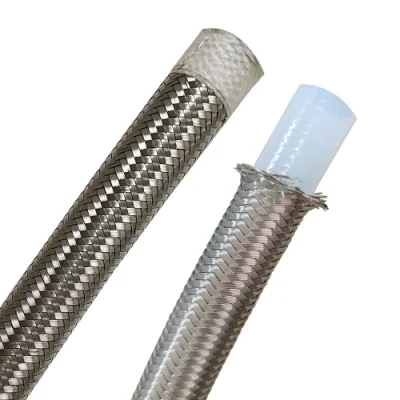

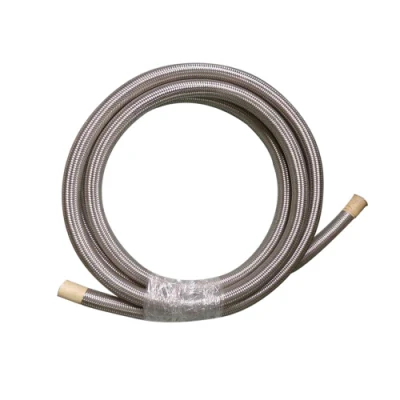

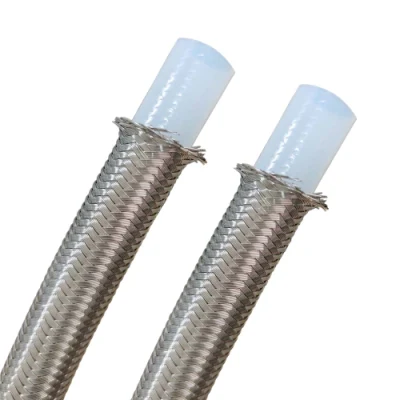

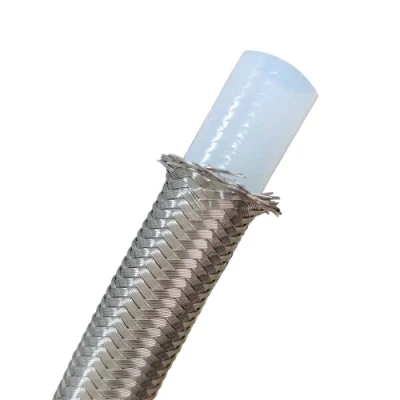

PTFE smooth hose braided with 304 stainless steel
1. Smooth ptfe hose core, less resistance and less residue fluid
2. Non-stick feature makes the hose very easy to clean.
3. Non-toxic and chemical resistance,it is widely used in chemical, food and medical industries.
4. Material: PTFE+304 stainless steel.
5. Anti both low and high temperature, working temperature: -70 ~ +260 ºC
6. High pressure resistance, we can offer single braid and double braid.
7. Advantages: less residue liquid, less resistance, non-stick, non-toxic, anti-corrosion.
2. Non-stick feature makes the hose very easy to clean.
3. Non-toxic and chemical resistance,it is widely used in chemical, food and medical industries.
4. Material: PTFE+304 stainless steel.
5. Anti both low and high temperature, working temperature: -70 ~ +260 ºC
6. High pressure resistance, we can offer single braid and double braid.
7. Advantages: less residue liquid, less resistance, non-stick, non-toxic, anti-corrosion.
Technical date of PTFE smooth hose braid with 304 stainless steel
| Inner Diameter (inches) | Working Pressure (bar) | Burst Pressure (bar) | Bend Radius (mm) |
| 1/8'' | 280 | 840 | 40 |
| 3/16'' | 227 | 680 | 50 |
| 1/4'' | 200 | 600 | 75 |
| 5/16'' | 177 | 530 | 100 |
| 3/8'' | 153 | 460 | 125 |
| 13/32'' | 150 | 450 | 135 |
| 1/2'' | 140 | 420 | 165 |
| 5/8'' | 117 | 350 | 200 |
| 3/4'' | 93 | 280 | 230 |
| 7/8'' | 82 | 245 | 260 |
| 1'' | 67 | 200 | 300 |
Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485
Have 2 cleanrooms, to produce food and medical grade tube.
A professional manufacturer of PTFE hose, FEP hose and PFA hose
