Basic Info.
Product Description
The JAY-5AW with PSA technology to make oxygen, 0.5-5L/Min oxygen concentrator we provide is classified into the ordinary type and the low-noise type. Our oxygen concentrating machine is energy-saving and safe to use.

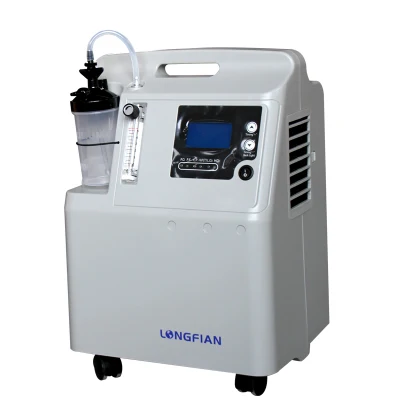

Longfian 5L oxygen concentrator model JAY-5AW is the medical grade machine, the flow rate 5L/min and the oxygen purity can be reached 93%±3%. The oxygen outlet pressure is 0.04-0.07Mpa.
For medical, oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma etc. Medical oxygen concentrator is designed to supply stable oxygen at 93%±3% for 24Hours/7Days/365Days continuously operational. It can also connect with HFNC, HBOC or BiPAP.
What is oxygen concentrator?
Oxygen concentrator is an electrically operated medical device which provides purified oxygen. This device works by pumping indoor
air into a container that separates oxygen from room air and concentrates it to provide oxygen continuously to users. Compared
with other oxygen supply devices like compressed oxygen cylinder, the oxygen concentrator is larger in size and it may restrict
the movement of the user since it operates on electricity. However, its operation is simple and no refill of oxygen is required.
Therefore, it is suitable for long term use at home.
Who needs oxygen concentrator?
Oxygen concentrator would be prescribed to patients suffering from chronic oxygen deficiencies such as severe chronic obstructive pulmonary disease (COPD).
Through measuring a patient's blood gases level of oxygen and carbon dioxide, doctor can decide whether the patient needs long term oxygen therapy.
Long term oxygen therapy (oxygen is given for more than 15 hours per day) can correct oxygen deficiency, reduce dyspnoea, reduce heart and lung workload, and hence improve patient's aerobic capacity and quality of life. Some studies also show that long term oxygen therapy can decrease the mortality rate of patients with COPD.
Model | JAY-5AW |
Flow rate | 0.5-5L/min |
Purity | 93±3% |
Outlet Pressure (Mpa) | 0.04-0.07 |
Sound Level | ≤40db |
Power | AC110/220/230V, 50/60Hz |
Power Consumption | ≤300W |
Alarm | Power failure alarm, High&Low pressure alarm, low concentration alarm |
LCD display | Operating pressure, Present Working Time,Accumulating Time, presetting Time from 10mins to 40hours |
Optional | Nebulizer, SPO2 |
Net Weight | 15Kgs |
Size (mm) | 348*280*540mm |
Packing(mm) | 420*340*610mm |
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00SNvhArFMdJbc/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
Features
*Innovative cooling technology to ensure 24/7/365 operation;

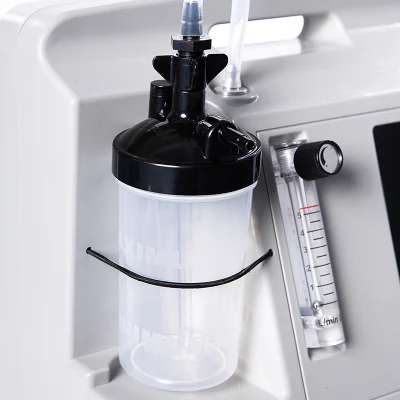

*Humidifier bottle with a pressure relief value of 6PSI. Safer and more comfortable;
*Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;
*Simple operation functions and easy-to-read LCD display
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00jFeVwWnKzAoc/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
If you need, it can be added the different alarm function.
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00SFeiAMyhUwqc/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
PSA working principle:
An Oxygen Concentrator utilizes the basic principle of Pressure Swing Adsorption (PSA) to deliver 90-96% pure oxygen. Air contains 21% Oxygen, 78% Nitrogen, and 1% other trace gases. PSA process utilizes the ability of Zeolite Molecular Sieve to absorb nitrogen to separate the oxygen from air.
How does oxygen concentrator work?
1.They take in ambient air from the surrounding area.
2.They compress the air inside the machine.
3.They remove nitrogen from the air via a filter and sieve beads.
4.They push the purified oxygen through attached tubing.
5.Oxygen is delivered right to your nose & mouth through a nasal cannula or mask.
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00snBidFyGtmko/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00FNBhwTnytdkb/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00NFCimpnaidcb/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
Where can the oxygen concentrator use for?
1. Oxygen therapy according to the doctor's prescription;
2. Oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma, etc.
3. It can be used in conjunction with HFNC, HBOC, or BIPAP.
If connected to HFNC, it provides oxygen with a stable high concentration, making it more comfortable.
If connected to HBOC, it rapidly and effectively increases the patient's SPO2.
If connected to BIPAP, this makes it convenient for COPD patients to have oxygen therapy at home;
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00NyviJlnKDwoc/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
* Oxygen concentrators are preferred in part because of their convenient size. Tanks are frustratingly bulky and heavy. Oxygen concentrators are with small size and easier to operate.
* Buying an oxygen concentrator will, over time, be more financially responsible. Yes, buying a concentrator means a large upfront cost (and, with continued use, replacement filters, and nasal cannulas), but that price is typically less than all the costs incurred with replacement cylinders
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00yNBideFlzmco/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00yFviANnJmmok/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00mNBVJEFGidko/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00wFviApNyDdoc/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
![Oxygen Concentrator Machine Medical Grade Home up to 5 Litres](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00dnCimlNqzwbo/Oxygen-Concentrator-Machine-Medical-Grade-Home-up-to-5-Litres.webp)
We are Longfian
Longfian Scitech Co., Ltd, a leading manufacturer specialized in oxygen solutions for 25 years, has been professionally dedicated to R&D, production and marketing of various oxygen concentrators which include medical oxygen therapy, indoor oxygen supply, plateau simulation, industrial, veterinary and other fields. Longfian is headquartered in Baoding, China. We have 520 employees, covering an area of 40,000 square meters, with annual production capacity of 1.5 million units.
2 Million Praises from Worldwide
All of our products comply with ISO13485 quality managing system and some models obtained CE certificates. in the meantime, our technology and R&D team carried out technological innovations, awarded 28 invention and design patents, and completed registration of 36 countries for import permits. till now, Longfian, has got the market share over 70% and exported to more than 160 countries around the world, benefiting 2 million end-users.
WHO & the United Nations Awards and Recognition
Longfian is the designated qualified supplier of United Nations organizations. Presently, we have undertaken many rescue material projects of oxygen concentrator from all over the world. Last year, we supplied nearly 1,200,000 units oxygen concentrators to different countries and they have expressed their recognition and gratitude to Longfian.
Longfian Footprint in the World
Since the year 1998, we started to go deep and explore the world market. 25 years export experience, 95 countries visits, more than 480 international exhibitions, which all laid a solid foundation for the No. 1 export volume of China-Made Oxygen Concentrator for recent 6 consecutive years and make LONGFIAN brand the benchmark of the mark.Why choose us?
QA and QC covered each step of production and process in the whole factory, which make strict control of each product quality to ensure the finished products 100% qualified. The rigorous and complete QA system has enabled LONGFIAN to obtain international certificates such as CE, FDA, etc.
2. AUTHORITATIVE RECOGNITION
The unanimous choice of world-renowned NGO and governments, which witness Longfian quality and the leading position in the global market.
3. PRODUCTION CAPACITY
Covering an area of 40,000 square meters,annual production 1,500,000 units,to ensure each order delivered on time.
4. TECHNOCOLOGY
With 25 years of experience accumulation and market exploration, we have successfully obtained 28 patents for oxygen concentrators.
The technical team will always maintain innovation and independent research and development, and strive to be the vane leading the oxygen concentrator industries.
5. CERTIFICATES
We have obtained 36 international certifications and market access permits including EU CE, EU FSC, U.S. FDA, Brazil ANVISA, Colombia INVIMA, Mexico COFEPRIS, Saudi Arab SFDA, Russian GOST, Uzbekistan MOH, Ethiopia FMHACA, Nigeria PC ...With all the certifications, we can freely sell to every corner of the world.
