0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

Factory direct 0.3-150 ml/min 4-20mA output vegetable oil medical molasses glue flow meter for oil. High-quality and reliable flow measurement solution.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
micro flow meter
Measuring Media
Liquid
Measurement Object
Liquid
Certification
CE, ISO, SGS
Transport Package
Box
Specification
stainless steel and aluminium
Trademark
GN
Origin
Shanghai, China
HS Code
9026100000
Production Capacity
10000 Per Month

Product Description

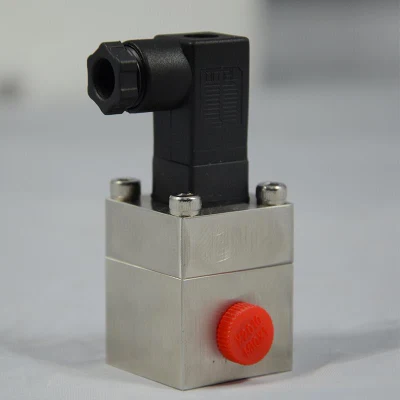

0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

4-20Ma Output Vegetable Oil Medical Molasses Glue Flow Meter For Oil

A.[Feature of Molasses Glue Flow Meter For Oil ]

High Accuracy

The standard type is 0.5%,for some special medium the accurcy is 0.2%.

The Min Flow Range

The min flow range is 0.5ml/min,The M2 flow range is 0.5~150ml/min.

The Max Pressure and Temperature

The standard type is 32Bar and 80ºC,But can customized  for 1000Bar and 150ºC.

Dosing and Alarm Function

The Micro Flow Meter wiht display instrument could reach the dosing and upper and Lower Alarm.

The Quality Material of Micro Flow Meter

Suction Micro Oval Flow Meter with stainless steel 316lL and Aluminum material to suitable for the medium.

Speical and Strict working condition

Suction Micro Oval Flow Meter suitable for Hydraulic system;Painting;Test Bench and more.

B.[Parameter]

Model Flow Range  Connection
CX-M2-SS/AL 0.5~150 ml/min G1/8 Female thread
CX-M3-SS/AL 3~300 ml/min G1/8 Female thread
CX-M5-SS/AL 5~1000 ml/min G1/8 Female thread
CX-M6-SS/AL 0.5~100 L/H G1/4 Female thread
CX-M9-SS/AL 6~600 L/H G1/4 Female thread
CX-M12-SS/AL 0.3~30 L/Min G1/2 Female thread
CX-M25-SS/AL 0.5~100 L/Min G1/2 Female thread
Test Bench flowmeter 1~800 ml/min G1/8 Female thread



 Accuracy  The standard type is 0.5%,some special medium is 0.2%
 Temperature  -30~80ºC(the max temperature is 150ºC)
 Pressure  30Bar (the max pressure 1000Bar)
 Output  The putput is pulse output
 Power Supply  4~26VDC
 -SS series
 Material  Chamber:SS316 ; Gear;SS316L ;Shaft:SS316L
 Medium  Suitable for various chemical liquid
 -AL Series
 Material  Chamber:Aluminium ; Gear:Aliuminium ;Shaft:SS316L
 Medium  Suitable for Non-various chemical liquid

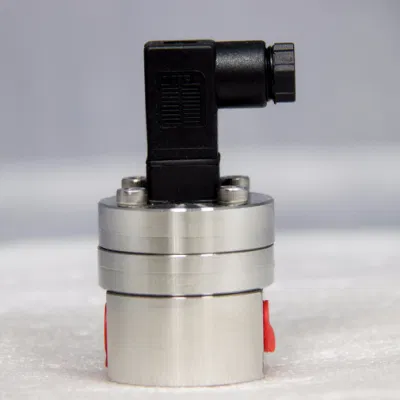

0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

Model / Size M2  M3  M5 M2  M3  M5(High Pre) M6 M9 M12 M25
A 30 30 40 47 44 56
B 62 62 72 79 79 91
C G1/8'' G1/8'' G1/4'' G1/4'' G1/2'' G1''
D 40 40 50 60 85 100
E M5*31 M5*31 M5*42 M5*72 M5*72 M6*61

C.[ Working Condition ]

    a.Hydraulic System,Hydraulic oil

  • The strict working condition,So the Heat Hydraulic Petrol Flow Meter Test Bench must with longer workinglife;
  • The Hydraulic system with high pressure,Normal the pressure is more than 16Mpa;
  • Test for Hydraulic oil,The medium must is pure,the micro flow mete need provide the filter;
  • The Hydraulic system is more professional system,So the manufacture with professional engineers and Low cost aftersales.

   b. The common rail injector test bench

  • The test bench Heat Hydraulic Petrol Flow Meter Test Bench's flow range is 0.7~400 ml/min,Our micro flowmeter is 1~800 ml/min;
  • The special flow meter need higher pulse parameter,The Model M3 with 0.07 ml/pulse;
  • In the test process,The Heat Hydraulic Petrol Flow Meter Test Bench need provide the filter.

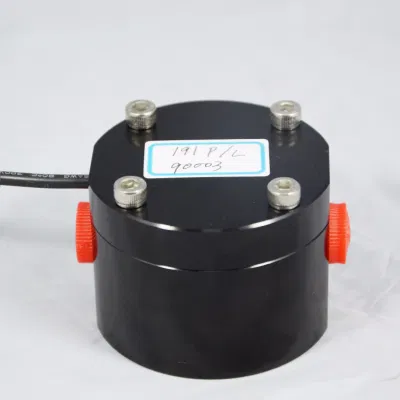

0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

 C. The Painting industry and painting mechine

  • The Heat Hydraulic Petrol Flow Meter Test Bench need higher accuracy;
  • The flowmeter need control the flow range and stable output;
  • Artifical painting waste much time and it is easy cause much cost loss;

  D.The Dispensing industry

  •  The flow meter of dispensing industry should be with higher accuracy.
  • The flow meter should be with dosing function.
  • The medium of dispensing with high viscosity and variety meduim.
  • The Heat Hydraulic Petrol Flow Meter Test Bench should be with lower flow range.

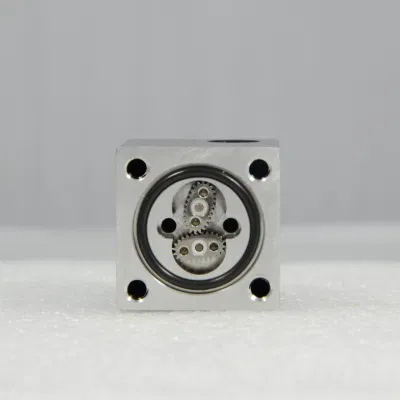

0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

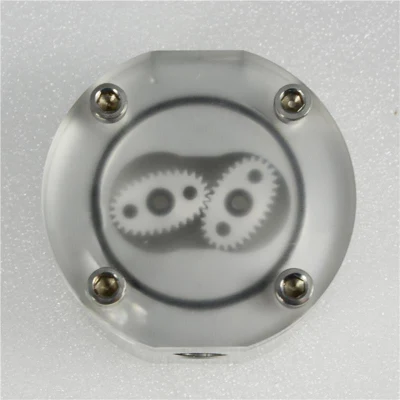

0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil

 D.[Company Info]

  • Our Company is Top 10 Manufacture on Alibaba;
  • We have about 30 years of experience in Manufacture;
  • Our products have been exported to more 100 coutries and area;
  • ISO,SGS,CE and more ceterficates for you reference;
  • Patent technology and more than 3 years working life.
0.3-150 Ml/Min 4-20mA Output Vegetable Oil Medical Molasses Glue Flow Meter for Oil
