Basic Info.
Model NO.
LINER-20HPT
Machine Body Size
830X580X1080mm
Import Carton Size
870X630X1240mm
Net Weight Per Unit
110kg
Import Gross Weight Per Carton
128kg
Noise
55dB(a)
Volts
AC 220-240V
Power
2000W
Work Mode
Intermittent Run
Theory
Psa Technology
Transport Package
Pallet
Specification
830x580x1080mm
Trademark
Angelbiss
Origin
China
HS Code
90192000
Production Capacity
2000PCS/Year
Product Description
Medical Use 1.4--6bar High Pressure 20Liter Large Flow Oxygen Gas Generator Used as a Small Central Supply System for a Hospital
Directly connect to Ventilators, and Anesthesia Machine at ICU.
Product Introduction LINER-20HPT is a high pressure PSA 20liter dual flow oxygen concentrator. It can connect to ventilators and anesthesia directly, which makes work simple and efficient under emergent circumstances. The intermittent run mode is energy-saving and ensures users' safety. And it has six alarm functions to ensure the most stable safety performance of the product.
LINER-20HPT has wide applications. It can be used as a mini supply plant for a single nursing room in a hospital, veterinary care, aquaculture, wastewater treatment etc.
Features
Special Features
- The first high pressure oxygen concentrator with the Oxygen Output Purity Fluctuation Rate controlled within 0.1% in the world.
- Intermittent run mode enables the machine to be operated continuously and cyclically, which is fully automated.
- The buffer tank inside the machine make the pressure gauge run steady.

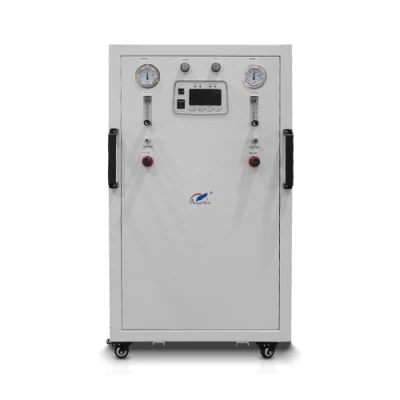

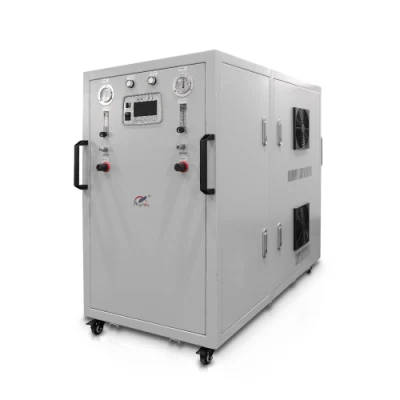

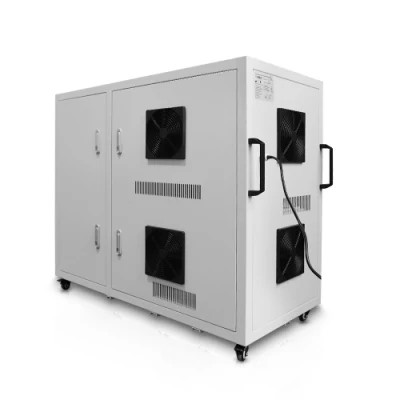

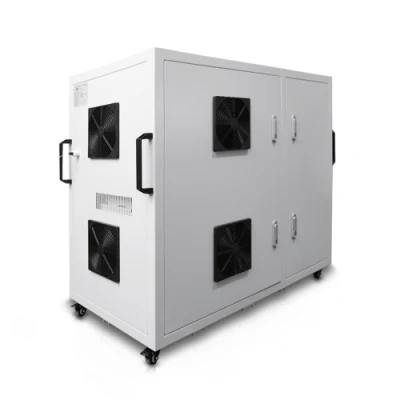

Product Display
Technical Specifications
| Product Model | LINER-20HPT |
| Max Oxygen Flow | 20LPM |
| Oxygen Concentration | 93% ± 3% |
| Oxygen Output Pressure | 1.4--6bar |
| Machine Body Size | 830x580x1080mm |
| Import Carton Size | 870x630x1240mm |
| Net Weight per Unit | 110kg |
| Import Gross Weight per Carton | 128kg |
| Operating Temperature | 41ºF to 113ºF (5ºC to 45ºC) |
| Operating Humidity | 30% to 80% RH |
| Operating Atmospheric Pressure | 613-1060hpa |
| Storage Temperature | 14ºF to 122ºF(-10ºC to 50ºC) |
| Storage Humidity | 20 to 90% RH |
| Noise | ≤55dB(A) |
| Volts | AC 220-240V |
| Power | 2000W |
| Work mode | Intermittent run |
| Complete Alarm System | Low Oxygen Alarm |
| Oxygen Pressure Protection Alarm | |
| Pressure Faulty Alarm | |
| Power off Alarm | |
| Compressor Faulty Alarm | |
| Overheated Protection |
Application
Testing
Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.
Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.
Before dispatching, LINER-20HPT has strict quality testing such as 95% above oxygen concentration guarantee, 20lpm large oxygen flow, stable oxygen output pressure, less than 10minutes warm-up time and intact components. The testing ensures the safety and good performance of the product, thus can bring customers better experience.
WHO IS ANGELBISS?
ANGELBISS, a promising brand has been registered at Germany, Malaysia, the USA and PRC China. AngelBiss Healthcare Inc, an eng ineering development center and the first company focus on fluctuation of oxygen concentrator and the only company capable of controlling the fluctuation rate within 0.1% when even oxygen output is at 7bar high pressure. AngelBiss team engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Oxygen Supply, Asthma Therapy and Diagnostic Therapy. With its own unique advantages and powerful engineering capabilities, AngelBiss has provided many high quality solutions to customers all over the word.
WHAT HAS ANGELBISS BEEN DOING DURING THE PANDEMIC?
AngelBiss and her partner in Malaysia are honored to have supported UNICEF@Oxygen Concentrators. We sincerely thank UNICEF Malaysia for this work, and AngelBiss also hopes to provide adequate care for more children during this difficult period.
AngelBiss donated ANGEL series oxygen concentrators to people in emergency need of oxygen therapy in Indonesia, Malaysia, Thailand, etc. during the epidemic. With the support of partners in these countries, oxygen concentrators were distributed to multiple government agencies and hospitals. AngelBiss has been working hard to fight the pandemic.
15,000 FEET HIGH ALTITUDE TEST
ANGELBISS, the only one can control the oxygen output purity fluctuation rate within 0.1%, the only one to test 5L oxygen flow attain 93% on 15000 ft Tibet mountain. In Sep 2019, our team conducted a three-day machine running test in Tibet mountain. At this altitude of 15,000 ft mountain, our 5L oxygen concentrator still maintains 93% oxygen purity. Tests over and over again proved that the AngelBiss oxygen concentrator was able to operate normally on high altitude countries and areas.
APPLICATION
AngelBiss is leading manufacturer of all flow range oxygen concentrators with advanced PSA technology in China. AngelBiss will provide different solutions according to the different needs of customer's applications.
For the oxygen demand of individual, family and small clinics, AngelBiss small flow oxygen concentrators will meet their demand.
For large medical institutions and factories, AngelBiss can provide a complete set of oxygen supply systems, which are designed, manufactured, and installed on site for the application field. In addition to medical applications, AngelBiss oxygen concentrators can also be applied in industrial fields, including ozone generators, glass-work manufacturing, aquaculture/fish farming, wastewater treatment, industrial smelting, nitrogen and oxygen separation and other applications.
EXHIBITION
AngelBiss all products are complied with the USA Technology quality standards and the best performance at its electronic life span. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe. AngelBiss ensure your safety in using its products, granting better use services to its distributor fans.
Related product
AngelBiss high pressure oxygen concentrator can be customized according to customer's needs. We have mastered core technology to produce large flow and high pressure oxygen generator. This is a difficult technology that few companies can breakthrough in low cost in the world today.
