Product Description

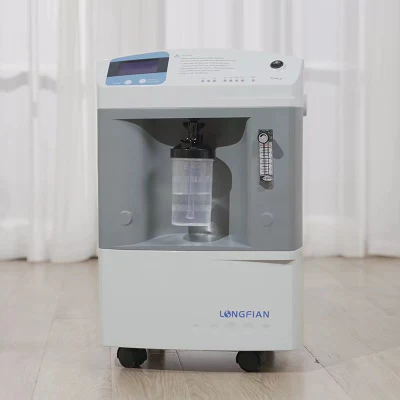

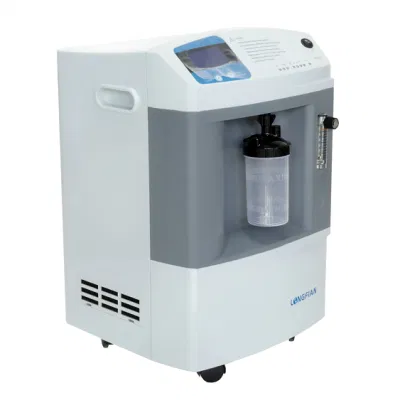

Medical Oxygen Therapy Machine 10lpm with Nebulizer
With the development of science and technology, people pay more attention to physical health. Oxygen homecare are gradually acceptable and popular. Medical and Homecare oxygen concentrators have been widely used in some diseases as oxygen therapy. People can inhale oxygen at home. Oxygen concentrators have become the family partner for people's daily homecare.
Longfian 10L oxygen concentrator model JAY-10 is the medical grade machine, the flow rate 10L/min and the oxygen purity can be reached 93%±3%. The oxygen outlet pressure is 0.04-0.07Mpa.
| Model | JAY-10 |
| Flow Rate | 0.5-10LPM |
| Purity | 93% (±3%) |
| Outlet Pressure | 0.04-0.07MPA |
| Sound Level | ≤50db |
| Power Consumption | ≤880W |

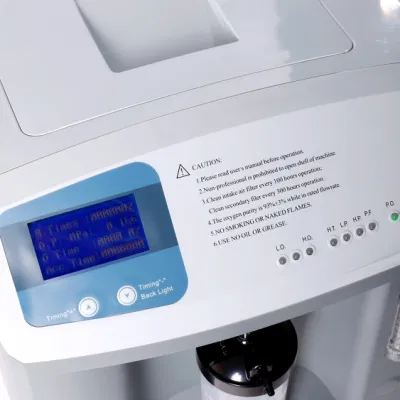

| LCD Display | Switch times,Operating pressure, Present Working Time, Accumulating Time, presetting Time from 10mins to 40hours |
| Alarm | Power failure alarm, High&Low pressure alarm, Low oxygen concentration alarm |
| Net Weight | 27KG |
| Size | 365x375x600mm |
An Oxygen Concentrator utilizes the basic principle of Pressure Swing Adsorption (PSA) to deliver 90-96% pure oxygen. Air contains 21% Oxygen, 78% Nitrogen, and 1% other trace gases. PSA process utilizes the ability of Zeolite Molecular Sieve to absorb nitrogen to separate the oxygen from air.
Features:1. With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis
2. Innovative cooling technology to ensure 24/7/365 operation
3. Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable
4. Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient
5. Simple operation functions and easy-to-read LCD display
6. Connected to HFNC, provide oxygen with stable high concentration, more comfortable
7. Connected to HBOC, rapidly and effectively increase the patients' SPO2
Where can the oxygen concentrator use for? 1. Oxygen therapy according to the doctor's prescription;
2. Oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma, etc.
3. It can be used in conjunction with HFNC, HBOC, or BIPAP.
If connected to HFNC, it provides oxygen with a stable high concentration, making it more comfortable.
If connected to HBOC, it rapidly and effectively increases the patient's SPO2.
If connected to BIPAP, this makes it convenient for COPD patients to have oxygen therapy at home;
4. It can be linked to a 5-way splitter, allowing five patients to breathe oxygen at the same time.
We are Longfian
Longfian Scitech Co., Ltd, a leading manufacturer specializing in oxygen solutions for 25 years, has been professionally dedicated to R&D, production and marketing of various oxygen concentrators which include medical oxygen therapy, indoor oxygen supply, plateau simulation, industrial, veterinary and other fields. Longfian is headquartered in Baoding, China. We have 520 employees, covering an area of 40,000 square meters, with annual production capacity of 1.5 million units.
2 Million Praises from Worldwide
All of our products comply with ISO13485 quality managing system and some models obtained CE and FDA certificates. in the meantime, our technology and R&D team carried out technological innovations, obtained 28 invention and design patents, and obtained registration of 36 countries for import permits. till now, Longfian, has got the market share over 70% and exported to more than 160 countries around the world, benefiting 2 million end-users.
WHO & the United Nations Awards and Recognition
Longfian is the designated qualified supplier of major international organizations like WHO, UNICEF, UNOPS, PATH, PAHO, WORLD BANK, etc. Presently, we have undertaken many rescue material projects of oxygen concentrator from all over the world. During the time that the pandemic of swept the world, we supplied nearly 1,200,000 units oxygen concentrators to different countries and they have expressed their recognition and gratitude to Longfian.
Longfian Footprint in the World
Since the year 1998, we started to go deep and explore the world market. 25 years export experience, 95 countries visits, more than 480 international exhibitions, which all laid a solid foundation for the No. 1 export volume of China-Made Oxygen Concentrator for recent 6 consecutive years and make LONGFIAN brand the benchmark of the mark.
Why choose us?
QA and QC covered each step of production and process in the whole factory, which make strict control of each product quality to ensure the finished products 100% qualified. The rigorous and complete QA system has enabled LONGFIAN to obtain international certificates such as CE, FDA, etc.
2. AUTHORITATIVE RECOGNITION
The unanimous choice of world-renowned NGO and governments, which witness Longfian quality and the leading position in the global market.
3. PRODUCTION CAPACITY
Covering an area of 40,000 square meters,annual production 1,500,000 units,to ensure each order delivered on time.
4. TECHNOCOLOGY
With 25 years of experience accumulation and market exploration, we have successfully obtained 28 patents for oxygen concentrators.
The technical team will always maintain innovation and independent research and development, and strive to be the vane leading the oxygen concentrator industries.
5. CERTIFICATES
We have obtained 36 international certifications and market access permits including EU CE, EU FSC, U.S. FDA, Brazil ANVISA, Colombia INVIMA, Mexico COFEPRIS, Saudi Arab SFDA, Russian GOST, Uzbekistan MOH, Ethiopia FMHACA, Nigeria PC ...With all the certifications, we can freely sell to every corner of the world.
