Basic Info.
Group
Adult
Function
Oxygen Therapy
Theory
Oxygen Breathing
Transport Package
Standard Export Packing(Ctns)
Specification
CE, ISO
Trademark
CBMCARE
Origin
China
HS Code
9019200000
Production Capacity
30, 000PCS/Month
Product Description

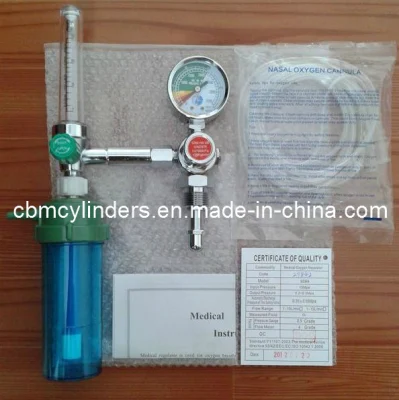

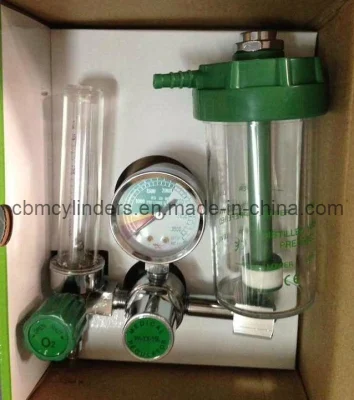

Medical Oxygen Cylinder Regulators are used for medical O2 cylinders & Oxygen Therapy System.
Specs of referenced float-type O2 cylinder regulators:
-Input Pressure: 150bar;
-Output Pressure: 2bar-3bar;
-Control Pressure of Safety Valve: 3.5bar± 0.5bar;
-Flowmeter Control Range: 0-10LPM/15LPM(OPTIONAL);
-Material: brass mainbody;
-Connecting thread: 5/8''G,CGA540,or Female 3/4-14NGT(to-be-confirmed).
-Warranty: 1 year after our dispatch.
-OEM is really welcome
*Features: Click-style Bullnose-style,handwheel type,and float-type ones can be OPTIONAL.
*Referenced main specs on Float-type Oxygen Regulators:
*Referenced main specs on Click-style Oxygen Regulators:
-1)Body Style: CGA540/CGA870;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: BARB/DISS outlet;
-4)Flow rate: 0-15lpm or you prefer;
-5)Color: Green or you prefer;
-6)(DISS)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.
*Main Features: Click-style Bullnose-style,handwheel type. A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
*About Us:
We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:
-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting;
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.com
Specs of referenced float-type O2 cylinder regulators:-Input Pressure: 150bar;
-Output Pressure: 2bar-3bar;
-Control Pressure of Safety Valve: 3.5bar± 0.5bar;
-Flowmeter Control Range: 0-10LPM/15LPM(OPTIONAL);
-Material: brass mainbody;
-Connecting thread: 5/8''G,CGA540,or Female 3/4-14NGT(to-be-confirmed).
-Warranty: 1 year after our dispatch.
-OEM is really welcome
*Features: Click-style Bullnose-style,handwheel type,and float-type ones can be OPTIONAL.
*Referenced main specs on Float-type Oxygen Regulators: | Type | Medium | Metering range (L/min) | Accuracy | Inlet Pressure (Mpa) | Outlet Pressure (Mpa) | Inlet connection screw thread | Outlet connection screw thread | ||||||
| YR-86-1 | O2 | 1-10 1-15 | Grade4 | 15Mpa | 0.2-0.3Mpa | G5/8-14-RH CGA540-RH G3/4-1-RH | 8mm | ||||||
| YR-86-2 | |||||||||||||
| YR-86-2C | |||||||||||||
| YR-86-4 | |||||||||||||
| YR-86-5A | |||||||||||||
| YR-86-6A | |||||||||||||
| YR-86-11A | |||||||||||||
| YR-86-11B | |||||||||||||
| YR-86-11C | |||||||||||||
| YR-86-12 | |||||||||||||
| YR-86-13 | |||||||||||||
| YR-86-14 | |||||||||||||
| YR-86-17A | |||||||||||||
| YR-86-17B | |||||||||||||
| YR-86-22 | |||||||||||||

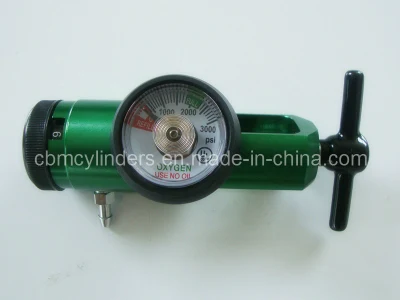

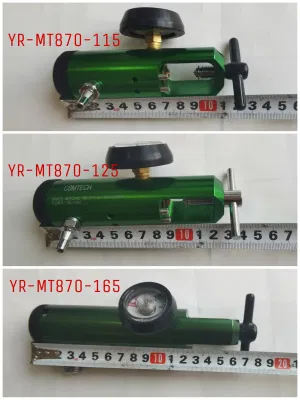

*Referenced main specs on Click-style Oxygen Regulators:-1)Body Style: CGA540/CGA870;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: BARB/DISS outlet;
-4)Flow rate: 0-15lpm or you prefer;
-5)Color: Green or you prefer;
-6)(DISS)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.
*Main Features: Click-style Bullnose-style,handwheel type. A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
*About Us:We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting;
What we can promise for you:*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.com
