Basic Info.
Model NO.
YQY-740LW5
Flow Rate
1-15L/Min
Precision
4 Class
Transport Package
Standard Export Carton
Specification
10pcs/55x41x18cmc/tn
Trademark
Goodwish
Origin
China
Production Capacity
50000PCS/Month
Product Description

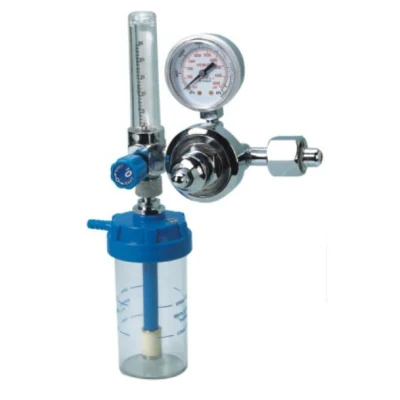

Medical Oxygen Regulator is used for oxygen breathing in hospital or home and
meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and
supply a stable flow pressure for use.
The pressure gauge indicates the pressure level of the gas cylinder.
SPECIFICATION OF THE RAW MATERIAL
| COMPONENTS NAME | MATERIAL |
| Main body | ABS & metal |
| Nebulizing device | ABS |
| Service medium | Oxygen |
| Max.entrance pressure | 150kg/cm2 |
| Max.discharge pressure | 0.2-0.3Mpa |
| Nominal flow rate | 1-15L/min |
| precision | 4 class |
| Inlet connection | G5/8"-RH(F)/RH(M) CGA540 |
| Input pressure | 15MPa |
