Basic Info.
Tensile Strength
3.46MPa
Roll
100m
Weight
11/14kgs
Colors

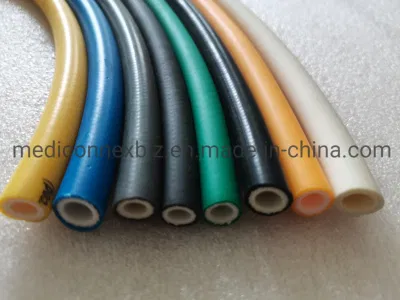

White/Black/Grey/Yellow/Green/Purple
Service
5 Years
Working Pressure
20bar
Burst Pressure
60bar
Transport Package
Carton/Pallets
Specification
1/4", 5/16"
Trademark
REFITTEX
Origin
China/Italy
HS Code
39173900
Production Capacity
5000000m/Day
Product Description

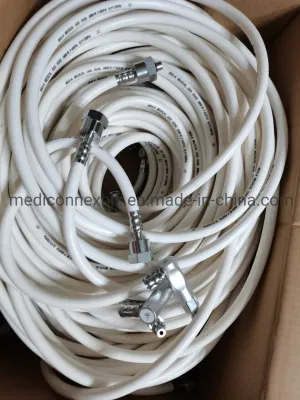

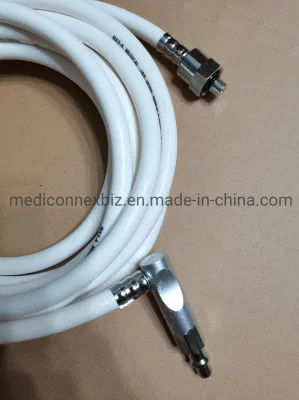

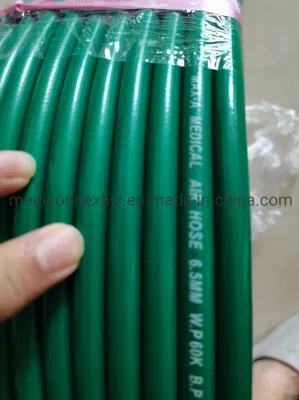

Medical Hose is suitable for transfer of low pressure gas in the food systems of medical tools.3 layer non-toxic PVC with texile reinforce,high flexibility without silicon and heavy metals.This hose is suggested for the transportation of oxygen,nitrogen oxide,air,helium,xeno,and nitrogen mixture,air for surgical tools.
Product Dimension: 1/4" MEDICAL HOSE
Inner Diameter:6.3MM 1/4 inch
Outer Diameter:12MM 0.47inch
Thickness:2.85mm 0.11inch
Weight per meter: 102 GR/M
Material:Non-toxic PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
Product Dimension: 5/16" MEDICAL HOSE
Inner Diameter:8MM 5/16 inch
Outer Diameter:14MM 0.55inch
Thickness:3mm 0.12inch
Weight per meter: 131 GR/M
Material:Non-toxic Medical Grade PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
MAIN TECHNICAL FEATURES:
-High Flexibility without silicon and heavy material
-Smooth sureface
-UV resistance
-Ozone resistance
-3 layer atoxic PVC with textile reinforce
Product Dimension: 1/4" MEDICAL HOSE
Inner Diameter:6.3MM 1/4 inch
Outer Diameter:12MM 0.47inch
Thickness:2.85mm 0.11inch
Weight per meter: 102 GR/M
Material:Non-toxic PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
Product Dimension: 5/16" MEDICAL HOSE
Inner Diameter:8MM 5/16 inch
Outer Diameter:14MM 0.55inch
Thickness:3mm 0.12inch
Weight per meter: 131 GR/M
Material:Non-toxic Medical Grade PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
MAIN TECHNICAL FEATURES:
-High Flexibility without silicon and heavy material
-Smooth sureface
-UV resistance
-Ozone resistance
-3 layer atoxic PVC with textile reinforce
