Product Description
Features:

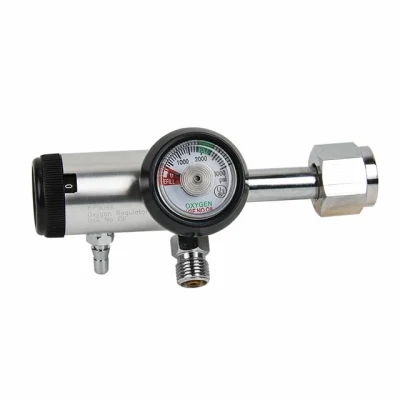

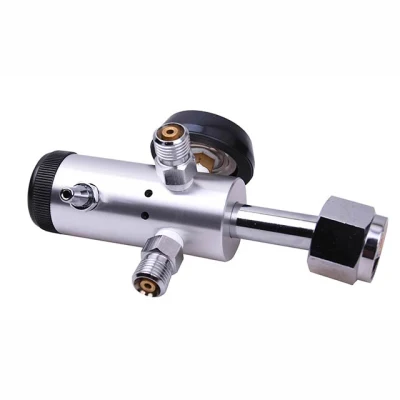

CGA540 Medical Oxygen Regulator
· A compact and light weight oxygen regulator is designed to fit any oxygen tank,made of lightweight anodized aluminum with brass high pressure conduits;
· Easy To Install & Use,the regulator attaches to the top of an oxygen cylinder;
· 3000psi maximum inlet pressure;
· 1-1/2" diameter UL-listed gauge;
· Inlet:CGA540 standards, bullnose , DIN477 standard, CGA870 standard;
· Outlet:BARB outlet or DISS or with 2CV;
· Internal relief valve;
· Piston design regulator;
· Sintered bronze inlet filter for longer service life;
· Indicator shows the current LPM and can be read easily;
· Easy adjustment between 12 preset flow settings from 0-25 LPM with a simple turn of the knob;

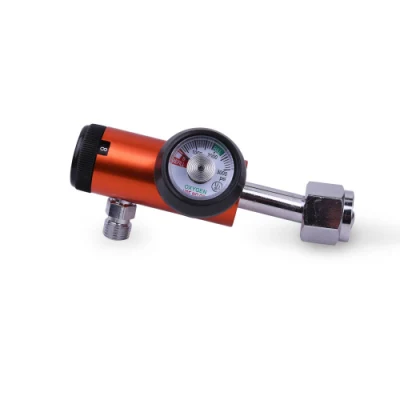

· Alternative color;
Specification:
| Modeel Number | Length(MM) | Inlet Connection | Outlet Connection | Packing |
| R-108-540-85 | 85MM | CGA540 | 9/16 | 20PCS/CTN 40.5X15.5X35.5CM 9/10KG
|
| R-108-540-2CV | 85MM | CGA540 | 8MM/G3/4 | |
| R-108-540-G3/4 | 85MM | CGA540 | 8MM | |
| R-108-870-115 | 115MM | CGA870 | 8MM | |
| R-108-870-120 | 120MM | CGA870 | 8MM | |
| R-108-870-125 | 125MM | CGA870 | 8MM | |
| R-108-870-165 | 165MM | CGA870 | 9/16 | |
| R-108-870-170 | 170MM | CGA870 | 9/16 |
