Basic Info.
LCD Display
Without LCD Display
Group
All
Function
Oxygen Therapy
Transport Package
Standard Export Packing
Specification
CE, ISO
Trademark
CBMTEC or OEM
Origin
China
HS Code
9019200000
Production Capacity
20, 000PCS/Month
Product Description
Medical Schrader Valve Regulators for Oxygen Cylinders:
Various types of Medical Oxygen Flowmeter Regulators, Medical Oxygen Therapy Regulators with Humidifiers for Medical Oxygen Therapy System.
*Ref. main specs of Float-type Medical Oxygen Regulators:
-Input Pressure: 150bar;
-Output Pressure: 2bar-3bar;
-Control Pressure of Safety Valve: 3.5bar± 0.5bar;
-Flowmeter Control Range: 0-10LPM/15LPM;
-Material: Heavy mainbody brass + aluminum alloy flow meter;
-Connecting thread: Male G5/8'';
-Accessary: Nasal cannula attached with every carton;
-Packaging: 10 PCS/20 PCS Per CTN(51cm*42cm*56cm); G. W/N. W.: 12/11KG.

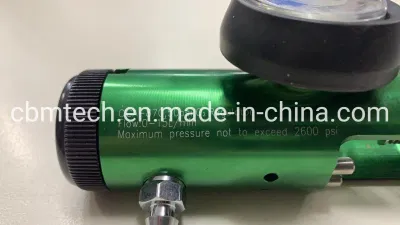

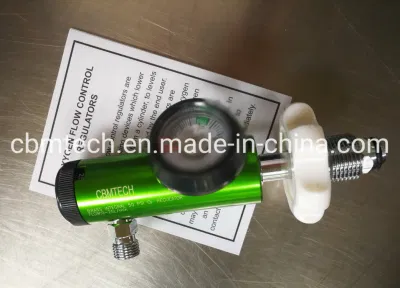

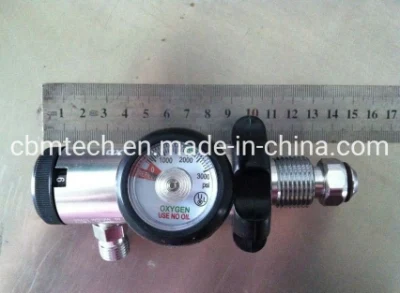

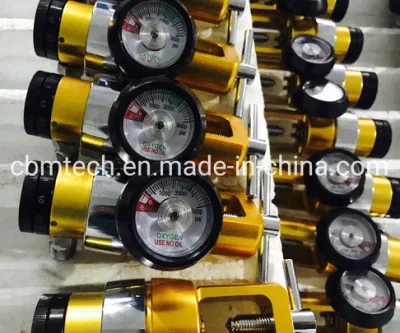

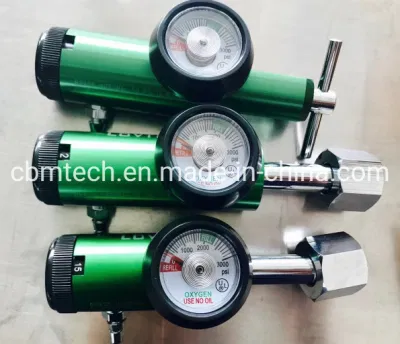

*Ref. main Specs of Click-style Oxygen Regulators:
-Body Style: CGA870 Pin index style/CGA540(or as required);
-Material: Lightweight aluminum alloy body;
-Outlet: Barb outlet(or Diss outlet);
-Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-Output pressure: 50PSI;
-Diameter: 1 3/8 Nominal;
-Length: 4 3/5 approximately;
-Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-Packaging: 20PCS/CTN.
-1)Body Style: CGA870 Pin index style;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: Barb outlet(or Diss outlet);
-4)Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-5)Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-6)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.
A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com
Various types of Medical Oxygen Flowmeter Regulators, Medical Oxygen Therapy Regulators with Humidifiers for Medical Oxygen Therapy System.
*Ref. main specs of Float-type Medical Oxygen Regulators:
-Input Pressure: 150bar;
-Output Pressure: 2bar-3bar;
-Control Pressure of Safety Valve: 3.5bar± 0.5bar;
-Flowmeter Control Range: 0-10LPM/15LPM;
-Material: Heavy mainbody brass + aluminum alloy flow meter;
-Connecting thread: Male G5/8'';
-Accessary: Nasal cannula attached with every carton;
-Packaging: 10 PCS/20 PCS Per CTN(51cm*42cm*56cm); G. W/N. W.: 12/11KG.
*Ref. main Specs of Click-style Oxygen Regulators:
-Body Style: CGA870 Pin index style/CGA540(or as required);
-Material: Lightweight aluminum alloy body;
-Outlet: Barb outlet(or Diss outlet);
-Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-Output pressure: 50PSI;
-Diameter: 1 3/8 Nominal;
-Length: 4 3/5 approximately;
-Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-Packaging: 20PCS/CTN.
-1)Body Style: CGA870 Pin index style;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: Barb outlet(or Diss outlet);
-4)Flow rates: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm available(optional);
-5)Colors: Anodized to green, red, silver, black, gold, brown, blue, purple(optional);
-6)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.
A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
| Flow rate of float-type Oxygen Regulators | 0-10lpm, 0-15lpm available(optional); |
| Gas type | oxygen |
| Inlet thread | Female CGA540 inlet |
| Outlet thread | Diss outlet(with reusable oxygen humidifier) |
| Humidifier bottle capacity | 170ml/200ml/500ml(optional) |
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com
