Basic Info.
Specification
CUSTOMIZED
Trademark
CBMCARE(OEM)
Origin
Ningbo, China
HS Code
84819010
Production Capacity
30, 000PCS/Month
Product Description
Product Description

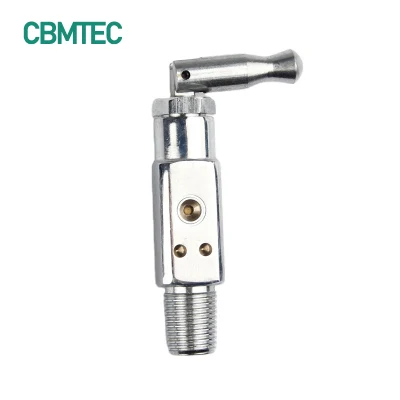

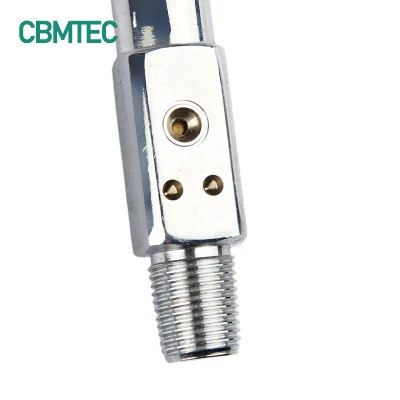

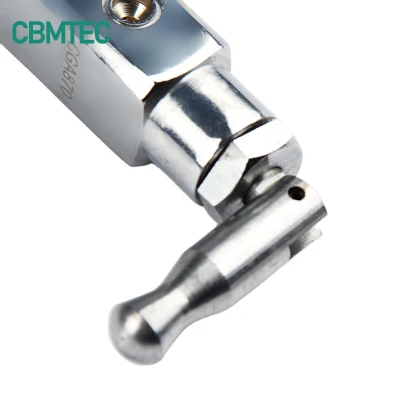

Medical CGA870/CGA950/CGA910 Pin Index Valves for Medical Gas Cylinders:

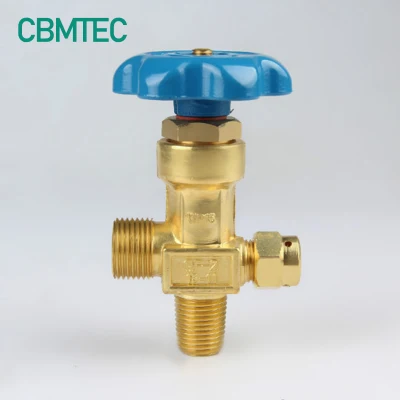

Optional gas cylinder valves for gas cylinders:
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.
The simplest, and very ancient, valve is simply a freely hinged flap which drops to obstruct fluid (gas or liquid) flow in one direction, but is pushed open by flow in the opposite direction. This is called a check valve, as it prevents or "checks" the flow in one direction.
Valves have many uses, including controlling water for Irrigation, industrial uses for controlling processes, residential uses such as on / off & pressure control to dish and clothes washers & taps in the home....
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
Mob: +86-153 5606 5235
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.co
Optional gas cylinder valves for gas cylinders:
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.
The simplest, and very ancient, valve is simply a freely hinged flap which drops to obstruct fluid (gas or liquid) flow in one direction, but is pushed open by flow in the opposite direction. This is called a check valve, as it prevents or "checks" the flow in one direction.Valves have many uses, including controlling water for Irrigation, industrial uses for controlling processes, residential uses such as on / off & pressure control to dish and clothes washers & taps in the home....
| NO. | Type No. | Produce Name | suitable Medium | PN (Mpa) | DN (mm) | Outlet thread(mm) | Jiont Thread to cylinder (mm) | Temp./Pressure of safety device | ||
| 1 | QF-6A |
|
| 15 | 4 | G5/8 | GB8335 PZ27.8 | 21±1.5 | ||
| 2 | QF-2A1 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 7 | W22 x 1/14 | GB8335 PZ27.8 | 21±1.5 | ||
| 3 | QF-2A8 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W21.8 x 1/14 | GB8335 PZ27.8 | 21±1.5 | ||
| 4 | QF-2A17 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | CGA320 | GB8335 PZ27.8 | 21±1.5 | ||
| 5 | QF-17 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 12.5 | 4 | CGA320 | UNF1.125-12 | 15-18.75 | ||
| 6 | QF-16A | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 2.5 | W21.8 x 1/14 | M18 x 1.5 | 21±1.5 | ||
| 7 | QF-35 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | CGA320 | UNF1.125-12 | 21±1.5 | ||
| 8 | QF-35A | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | UNF1.125-12 | 21±1.5 | ||
| 9 | QF-35B | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | UNT(1A)3/4-16 | 21±1.5 | ||
| 10 | QF-35C | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | G1/2 | UNF1.125-12 | 21±1.5 | ||
| 11 | F-5 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 7 | Female Thread G5/8 | GB8335 PZ27.8 | 21±1.5 | ||
| 12 | F-2M | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | JIS B 8246 V2 | 21±1.5 | ||
| 13 | F-2M1 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | GB8335 PZ27.8 | 21±1.5 | ||
| 14 | F-2M2 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | GB8335 PZ19.2 | 21±1.5 | ||
| 15 | F-2N | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W21.8 x 1/14 | JIS B 8246 V2 28 |
*About Us:We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr) Mob: +86-153 5606 5235
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.co
