Product Description

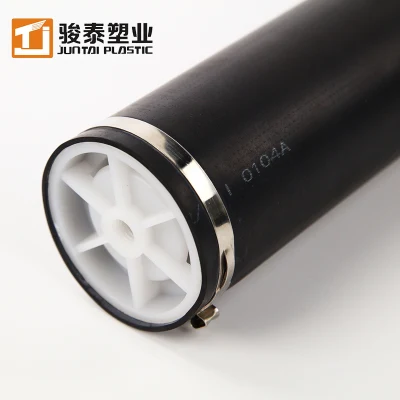

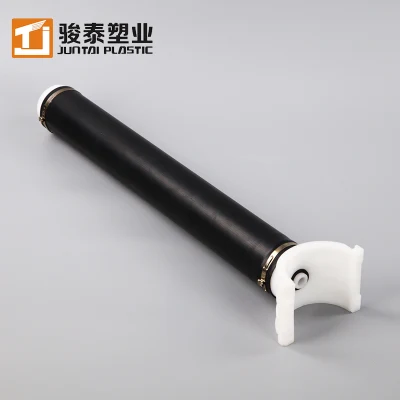

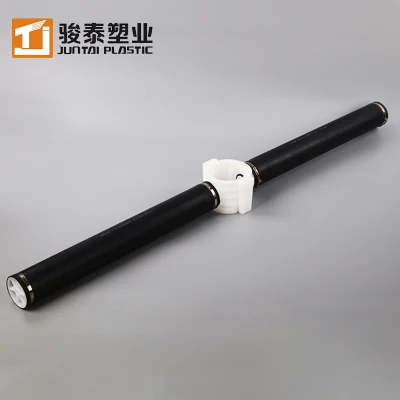

Juntai Smart Tube Diffuser describe
Fine Bubble Tube Diffusers can be connected on one side or in pairs to different rectangular and round tubes (PP material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PP material)can be reused when membranes are replaced. The units offer maximum Juntai smart tube diffusers which are the best solution for long and narrow aeration tanks. The opportunity to choose different materials, connection threads, and sizes makes the TD63 750 mm membrane tube diffuser fit any wastewater. The diffusers in Juntai are produced with the latest technology and the diffusers are used in wastewater treatment plants. The projection of each diffuser of Juntai was done after a Research and Development study that response to the requests of wastewater treatment plants. Materials used in Juntai diffusers are carefully selected according to the processes of wastewater treatment plants and regularly tested before shipment.
Juntai Smart Tube diffuser Details Show
Juntai Smart Tube Diffuser Advantages
1. Formula EPDM with a UV protector and strengthen ABS. Juntai Smart Tube Diffuser pipe is made from a UV protector and strong ABS material, which can make the tube diffuser durable.
2. Formula DPEM import from Lanxess Germany. Juntai Diffuser uses the formula EPDM wich UV protector which imports from Lanxess Germany. This kind of EPDM with less plasticizer.
3. Low-pressure loss and longer duly life. The Wall thickness of the Membrane is 1.8 to 2.0mm, which is not too thick or too thin.
4. Quality Control. Strictly Quality Control when producing, then make each tube diffuser Consistent quality which can make your total Aeration tank easily Maintain
5. Double Check valve
6.Non tearing & non clogging --shaped slits.

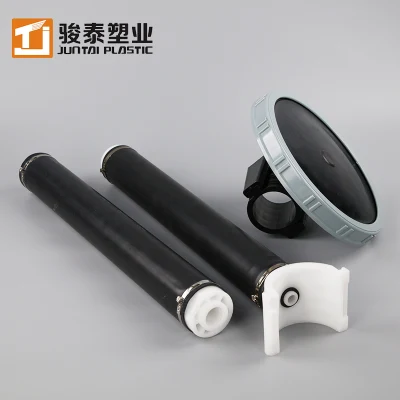

Juntai Smart Tube Diffuser Series
Juntai Smart Tube Diffuser
Applicable Scope:
Municipal sewage and industrial sewage can also be used for the restoration and management of lakes and rivers and aquaculture. Aeration Diaphragm: EPDM Rubber
Diaphragm Thickness:1.8±0.1mm
Lined Pipe: PP-TV, Standard outside diameter is 63mm
Fasten Clamps:
The standard material is 304 stainless steel; according to different water quality conditions, 316 stainless steel and all-plastic clamps can also be used.
Thread Standard:
The standard size is DN20 and DN25; other specifications of thread standards can also be customized according to actual needs.
STD Tube Diffuser specification model table
(other specifications can be customized)
STD Tube Diffuser technical parameters table
Juntai Smart Tube Diffuser Connector Diaphragm Thickness:1.8±0.1mm
Lined Pipe: PP-TV, Standard outside diameter is 63mm
Fasten Clamps:
The standard material is 304 stainless steel; according to different water quality conditions, 316 stainless steel and all-plastic clamps can also be used.
Thread Standard:
The standard size is DN20 and DN25; other specifications of thread standards can also be customized according to actual needs.
STD Tube Diffuser specification model table
(other specifications can be customized)
STD Tube Diffuser technical parameters table

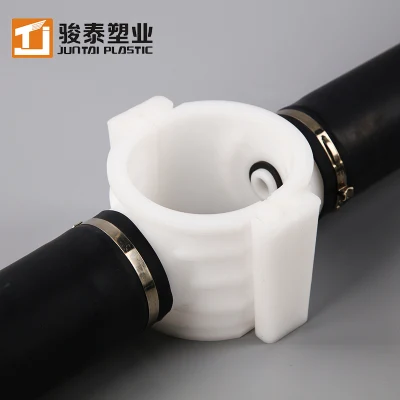

Juntai Quick Connector (QC)
Can be used for quickly connect the tube diffuser and effectively fasten the diffuser
Juntai Steel Connector (SC)
Can effectively reduce the occurrence of shedding.Easy installation
High Qaulity Material Import From USA
In order to make long life of the Disc diffuser, the most important is a good formula for EPDM. After 10 years of development, Juntai designed a very good formula which is 3 to 5 years longer life and lower resistant, high deformation resistance, and elasticity
1. Import High-quality EDPM 8600 from ExxonMobil
2. High-quality Carbon which from Cabot in USA
JUNTAI PRODUCT ADVANTAGES
Well quality control factory Neat, Clear Workshop, All the material, semi-products are kept on container
