Basic Info.
Certification
CE, ISO
Measure Accuracy
0.1% F.S
Output Signal
4- 20 Ma, RS485 Hart
Medium Temperature
-50~150 Centigrade
Explosion-Proof
Yes
Accuracy of Denisity
0.002g/Cm2, ;0.001g/Cm
Power Supply
AC220V or DC24V
Electrical Port
1\2 NPT
Prtection Grade
IP67
Ambient Temperature
-25~75 Centigrade
Warranty
12 Months
Life
10 Years Life
Transport Package
Wooded Box
Trademark
Macsensor
Origin
China
Product Description
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00EvVtqgAbYHuk/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
Introduction of Turbine flow meter
- High accuracy, low requirements for fluid state, low pressure loss
Parameter Diameter DN3mm-250mm Medium temperature -50ºC~+150ºC (-200ºC~+350ºC customizable) Environmental Temperature Sensor: -41ºC~+150ºC
Transmitter:-41ºC~+80ºCAccuracy of flow rate measurement ±0.5%, ±0.2%,±0.1%±[(stability at zero point)/flow rate×100]% flow Accuracy of density measurement ±0.002g/cm2, ±0.001g/cm2 Repeatability ±0.10%, ±0.05% flow±[½(zero point stability/flow value)×flow Output signal 4~20mA load resistance <500 Ω(Instantaneous flow or density optional, 0~10kHz Instantaneous flow pulse signal);
485 (MODBUS-RTU)
HartElectrical Port 1/2"NPT Explosion-proof grade EX d ib II C T6 Gb Protection grade IP67 Work Temperature -25~75ºC Storage Temperature -40~85ºC Power supply 24V DC(220V AC or 24V DC and AC customizable )
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00EvVaoDmcgLub/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00tMWEbhAPYHuq/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00tehacodsCHrq/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00tMVQoCmBCIuq/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)

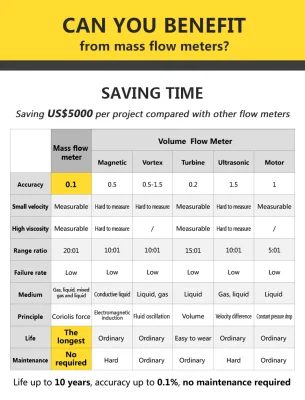

You will benefit from Macsensor magnetic flow meter?
- Saving money
- Saving labor
- Saving time
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00QCVEcjJqCDgk/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
![Macsensor Factory Sale Widely Used Triangle Air Medical Oxygen LPG Digital Flowmeter](http://img6.grofrom.com/www.midekeooxygenco.com/226f3j00tMhTqNdwfIgb/Macsensor-Factory-Sale-Widely-Used-Triangle-Air-Medical-Oxygen-LPG-Digital-Flowmeter.webp)
