Basic Info.
Model NO.
LZB
Measuring Principle
Mechanics
Measurement Object
Closed Pipeline
Certification
CE, RoHS, ISO
Working Environment
-20~60°c, 5%~90%Rh
Transport Package
Carton or Wooden Box
Specification
10kg
Trademark
Hongjun
Origin
China
Product Description

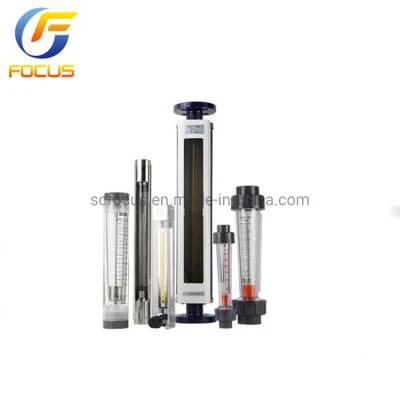

VA/SA/FA 30s glass milk/beer/drinking water tube sanitary stainless steel hygiene rotameter

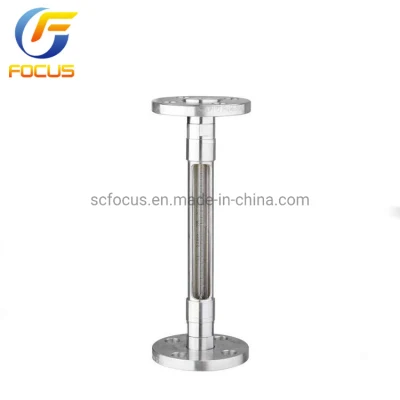

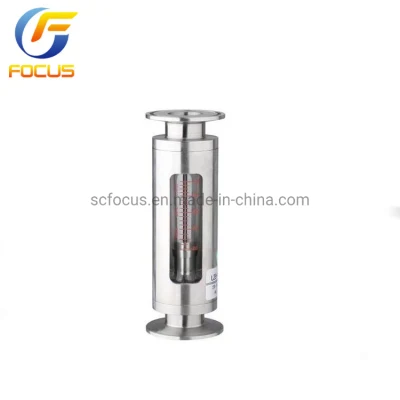

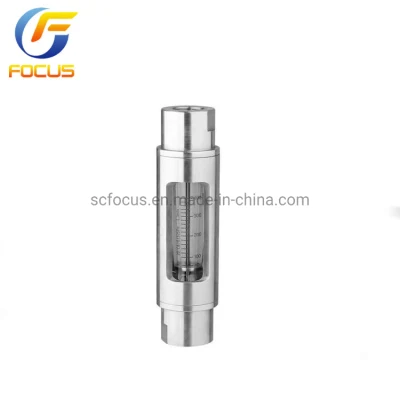

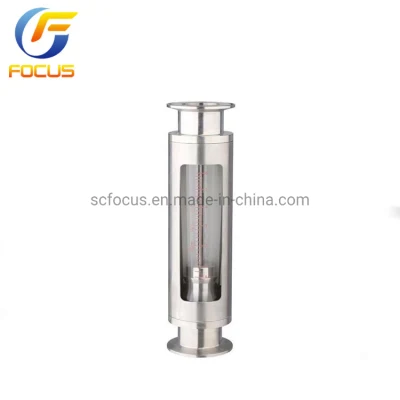

This series of flowmeter is made of SS304. There are female screw thread, flanged connection and tri-clamp connection for choice. It's featured in nice looking and low weight. It is capable of providing actual flow scale according to the temperature, pressure, density, and viscosity of different flows, solving the problem of indication correction.
| Type | LZB-15 | LZB-25 | LZB-40 | LZB-50 | LZB-80 | LZB-100 | LZB-100 | |
| Orifice (mm) | 15 | 25 | 40 | 50 | 80 | 100 | 100 | |
| Measure range | Liquid l/h | 6-60 | 40-400 | 160-1600 | 160-1600 | 1-10m³/h | 5-25 | 20-90m³/h |
| 8-80 | 60-600 | 180-1800 | 400-4000 | 1.6-16m³/h | 6-35 | 20-100m³/h | ||
| 16-160 | 100-1000 | 250-2500 | 600-6000 | 2-20m³/h | 8-40 | 30-100m³/h | ||
| 25-250 | 160-1600 | 300-3000 | 800-8000 | 3-25m³/h | 12-60 | 50-120m³/h | ||
| 40-400 | | 400-4000 | 1-10m³/h | 8-40m³/h | 16-80 | | ||
| | | 1-5m³/h | 4-16m³/h | | | | ||
| | | 1.5-6m³/h | | | | | ||
| Air Nm³/h | 0.25-2.5 | 0.8-8 | 4-40 | 6-60 | 50-250 | 60-200 | 300-1500 | |
| 0.4-4 | 1-10 | 5-50 | 10-100 | 80-400 | 80-400 | 300-1600 | ||
| 0.6-6 | 1.6-16 | 6-60 | 16-160 | 750-7500l/min | 100-500 | 400-2000 | ||
| 0.8-8 | 2.5-25 | 7-70 | 20-200 | 60-600 | 120-600 | 500-2500 | ||
| 1-10 | 3-30 | 8-80 | 30-300 | | 200-1000 | | ||
| | 4-40 | 10-100 | 50-250 | | | | ||
| | | | 80-400 | | | | ||
| Accuracy(±%) | 2.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Working pressure (Mpa) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.4 | ≤0.4 | ≤0.4 | |
| Type | Dimension (mm) | ||||
| A | B | C | D | N-E | |
| LZB-15 | 95 | 65 | 470 ±2.5 | 15 | 4-14 |
| LZB-25 | 115 | 85 | 470 ±2.5 | 25 | 4-14 |
| LZB-40 | 145 | 110 | 570 ±3 | 40 | 4-18 |
| LZB-50 | 160 | 125 | 570 ±3 | 50 | 4-18 |
| LZB-80 | 185 | 150 | 660 ±3.5 | 80 | 4-18 |
| LZB-100 | 205 | 170 | 660 ±3.5 | 100 | 4-18 |
- Who We are? As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15years! There are 1000workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is 850000pcs in 2013!
- What We Do? We provide not only products but also solutions for customers! Our main products include AC gear motor, DC gear motor, high precision planetary gearbox used for stepper motor and servo motor! Also we provide customize service according to our customers' requirement!
- How is Quality? Manage workshop by 5S and all products are most strictly checked by several processes before leaving our factory! We have got certification of ISO9001, CCC, CE, UL, RoHS!
- What is the Application? Our products are widely used in machine tools ( CNC lathes), textile machinery, knitting machinery, bank appliances, industrial assembly line (automatic door opener), cleaning equipment (sweeping machine), packaging machinery, pharmaceutical machinery, educational instrument, office equipment ( Cementing machine), medical devices, health care equipment, warehouse automation, industrial robots and so on.
