Basic Info.
Model NO.
Vortex Flow Meter
Measuring Media
Liquid, Gas, Steam
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
SGS
Output Type
Pulse, 4-20mA, RS485 and GPRS, Hart
Power Supply Type
Battery or 24 V DC
Transport Package
Carton Packing
Trademark
kunkeandao
Origin
Weihai
HS Code
9026100000
Production Capacity
3000 Pieces/Year
Product Description
Low Price Hydrogen Medical Oxygen Liquefied Petroleum Gas Vortex Flowmeter
Product description
KLUGB Vortex Flow meter is a kind of velocity flowmeter. It is researched and designed based on the Karman vortex principle. Control and metering.
Features
1. No moving parts,high reliability, long-term stability, simple structure and easy maintenance
2. Various structural forms, flange , clamping, clamp in, threaded ,tri-clamp, also can be customized.
3. Wide measurement range and high accuracy, liquid is ±1.0%; gas is ±1.0~1.5%;
4.Pressure loss is small (about 1/4-1/2 of the orifice flowmeter), which belongs to the energy-saving flow meter
1. No moving parts,high reliability, long-term stability, simple structure and easy maintenance
2. Various structural forms, flange , clamping, clamp in, threaded ,tri-clamp, also can be customized.
3. Wide measurement range and high accuracy, liquid is ±1.0%; gas is ±1.0~1.5%;
4.Pressure loss is small (about 1/4-1/2 of the orifice flowmeter), which belongs to the energy-saving flow meter
| Diameter(mm) | 15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in) |
| Nominal pressure(MPa) | DN15-DN200 4.0(>4.0,Supply agreement)DN250-DN300 1.6(>1.6,Supply agreement) |
| Medium temperature(ºC) | Piezoelectric type :-40~150ºC,-40~250ºC,-40~330ºC; Projected Capacitive:-40~400ºC(Supply agreement) |
| Body material | 1Cr18Ni9Ti(Other material order by agreement) |
| Permissible vibration acceleration | Piezoelectric type :0.2g Projected Capacitive:1.0-2.0g |
| Accuracy | ±1%R,±1.5%R;plug-in:±2.5%R |
| Range of degrees | 1:6~1:25 |
| Power Supply | Sensor:DC+12V,DC+24V;Transmitter:DC+12V,DV+24V;Battery-powered:3.6V |
| Output signal | Pulse:high level:≥5V low level:≤1V;electricity current:4~20mA |
| Pressure loss coefficient | Comply with JB/T9249 standard Cd≤2.4 |
| Explosion-proof coefficient | Intrinsic safety :Ex ia II CT2-T4 Explosion-proof type:Exd II CT2-T5 |
| Level of protection | Ordinary type:IP65 Diving type:IP68 |
| Environmental conditions | Tempersature:-20ºC~55ºC,relative humidity 5%~90%,atmospheric pressure:86~106kPa |
| Applicable medium | gas ,liquid,steam |
| Transmission distance | Three-wire pulse output:≤300m,Two-wire standard current output:(4~20mA)≤1500m load resistance≤500Ω;RS485/HART≤1200m. |
Product details
Connection method classification

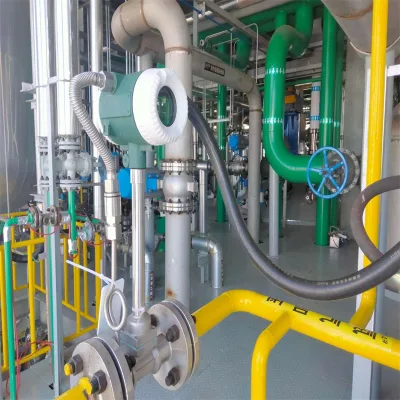

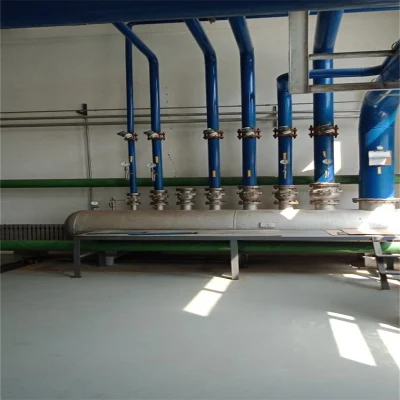

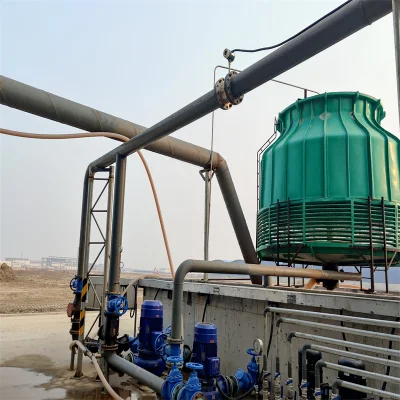

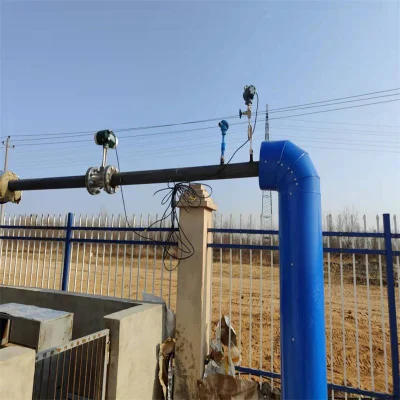

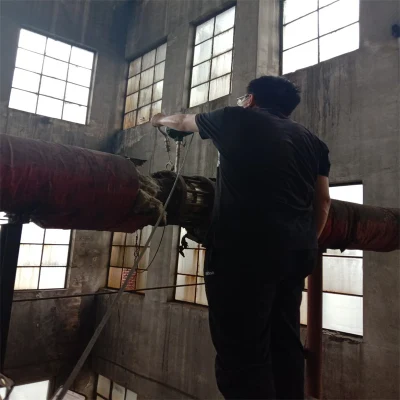

Field application
Company information
Company style
Exhibition information
Certification
Payment&Delivery
Company style
Exhibition information
Payment&Delivery
