Basic Info.
Model NO.
CFJX-146
Material
Alloy
Origine
Qingdao China
Quality Certification
ISO 9001:2008,AISI,CE,Ieo,SGS
Quality Control
Professional QC and Test Equipment
Package
40PCS/CTN
Gas Application
Lp/ Propane
HS
8481100090
Working Temperature
20c-45c
Inlet Pressure
0.07-1.56MPa,Outlet Pressure:3kpa
Type
Air Gas Regulator
Transport Package
in Pallet or as Your Requirement
Specification
ISO9001 SGS CE
Trademark
Chifine
Origin
Jimo Qingdao City
HS Code
8481100090
Production Capacity
80000 Piece/Pieces Per Month
Product Description

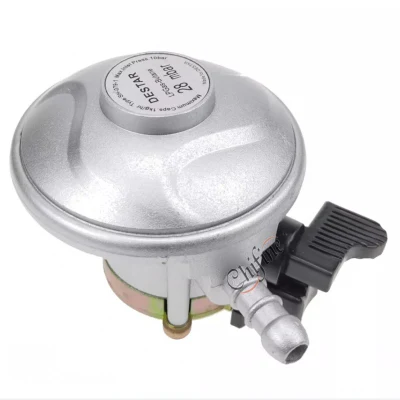

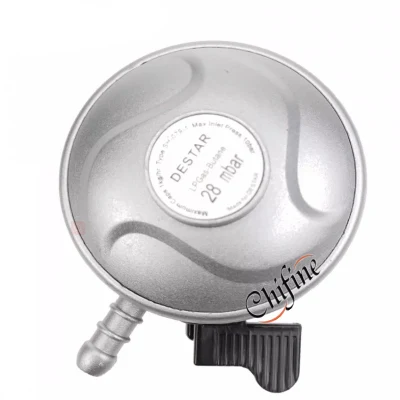

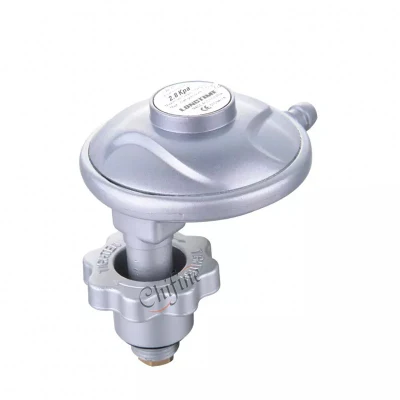

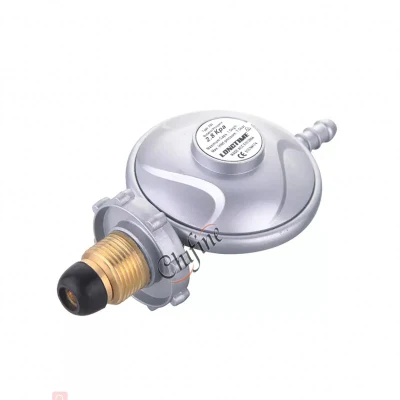

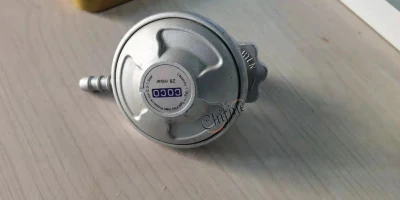

Mechnical Pressure Reducing Regulators with ISO9001-2008 Certification
1.inlet pressure:0.7-15.6bar, outlet pressure:23-33mbar,gas flow:0-4kg/hr
2.size:do as you need,12mm outlet
3.material:aluminum alloy body
4.painting:liquid or powder painting,different color
5.working temperature:-20c-45c
6.packing:gift box and carton boxes,3000 pcs can be designed as requirements
7.other type:male or female thread connecting, with or without gauge meter
8.we can also develop new mold basing on your sample or requirements
1.inlet pressure:0.7-15.6bar, outlet pressure:23-33mbar,gas flow:0-4kg/hr
2.size:do as you need,12mm outlet
3.material:aluminum alloy body
4.painting:liquid or powder painting,different color
5.working temperature:-20c-45c
6.packing:gift box and carton boxes,3000 pcs can be designed as requirements
7.other type:male or female thread connecting, with or without gauge meter
8.we can also develop new mold basing on your sample or requirements
| Import pressure range(P1) | 0.02~0.04MPa |
| Outlet pressure range(P2) | 1~5KPa (Low pressure type) 5~7KPa (Medium pressure type) |
| Regulation accuracy level | AC15 |
| Close pressure level | SG25 |
| Working temperature | -20 ~ 60ºC |
| Nominal diameter (mm) | DN15 DN25 DN40 |
| Nominal pressure (MPa) | PN0.4 |
