Basic Info.
Product Description
Product Description
All series have passed the CE certificate
The main part uses the goodness copper, and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body

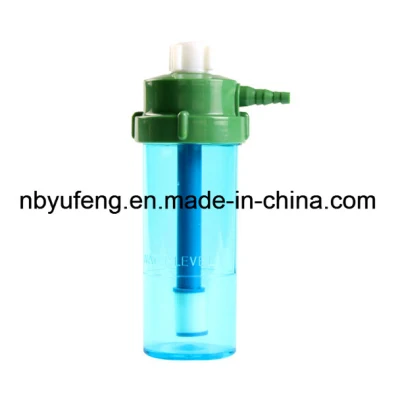

High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree; Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.
| Name | YF-04B-01 Bull nose type Medical Oxygen Regulator |
| Type | YF-04B-01 |
| Gas | O2 |
| Input pressure | 15MPa |
| Output pressure | 0.2 ~ 0.3MPa |
| Flow control range | 1-10L/Min , 1-15L/Min |
| valve pressure range | 0.35 ± 0.05Mpa |
| Input connection screw thread | G5/8-14-RH,CGA540-RH,G3/4-14-RH,BULL NOSE,CGA-870 |
| Output connection screw thread | 8mm |
| Valve material | Brass |

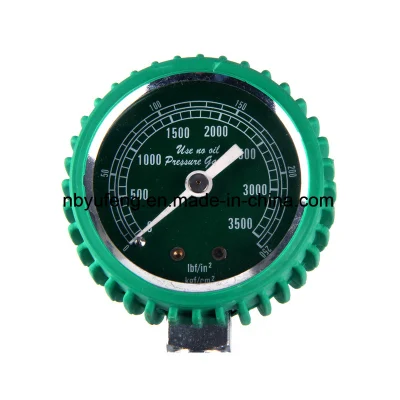

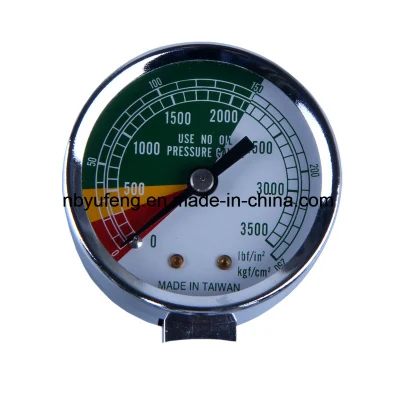

| Pressure gauge | 40mm |
Bottle material | PC |
Humidifier capacity | 170ml |
| Services | reply to you within 24 hours |
| delivery time | 15-25 days |
| warranty | 1 year |
Products show
