Basic Info.
Model NO.
yr-88
Measuring Media
Gas
Measuring Principle
Electrical Principles
Measurement Object
Oxygen
Certification
CE
Medium
Q2
Entrance Pressure(MPa)
15
Exit Pressure(MPa)
0.2-0.3
Entrance Connection Screw Thread
G5/8-14-Rh Cga540-Rh G3/4-14-Rh
Output Connection Screw Thread
8mm
Transport Package
Bag
Specification
1-15
Trademark
JR
Origin
China
HS Code
901920000
Production Capacity
1000000PCS/Year
Product Description
Medical oxygen regulator is used for oxygen breathing in hospital or home, connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Technical Specification :
Input pressure:15Mpa/20Mpa
Output pressure:0.2-0.3Mpa
Automatic discharge pressure of the safety valve:0.35+_0.05Mpa
The range of flow: 0-15L/min
Connection thread: G5/8 Female,CGA540
Mainbody:brass
Structure:piston type
Humidifier bottle:200ML
Features:
All oxygen flowmeter regulators with humidifiers series are certified CE and ISO 13485
Chrome-plated brass body regulator
Buoy-type regulator.
Precise flow 0-15LPM with better visual PC tube for durability
Reusable polycarbonate humidifiers(121 Celsius degree)
2" pressure gauge for easy reading.
For use with oxygen cylinders
20Mpa max inlet pressure
BS/JIS/DIN/CGA standard inlet connection available
we can supply the detail drawing if you need ,
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. but they're unfree.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-50 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Technical Specification :
Input pressure:15Mpa/20Mpa
Output pressure:0.2-0.3Mpa
Automatic discharge pressure of the safety valve:0.35+_0.05Mpa
The range of flow: 0-15L/min
Connection thread: G5/8 Female,CGA540
Mainbody:brass
Structure:piston type
Humidifier bottle:200ML
Features:
All oxygen flowmeter regulators with humidifiers series are certified CE and ISO 13485
Chrome-plated brass body regulator
Buoy-type regulator.
Precise flow 0-15LPM with better visual PC tube for durability
Reusable polycarbonate humidifiers(121 Celsius degree)
2" pressure gauge for easy reading.
For use with oxygen cylinders
20Mpa max inlet pressure
BS/JIS/DIN/CGA standard inlet connection available

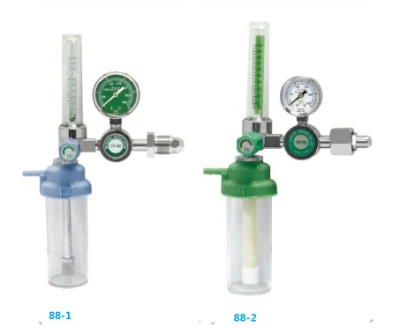

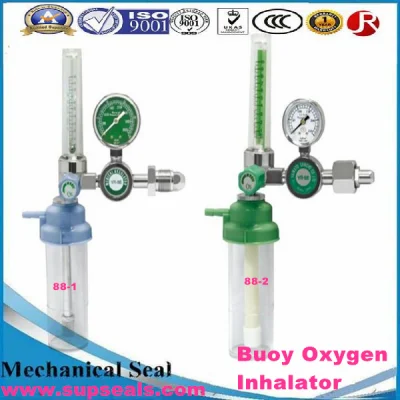

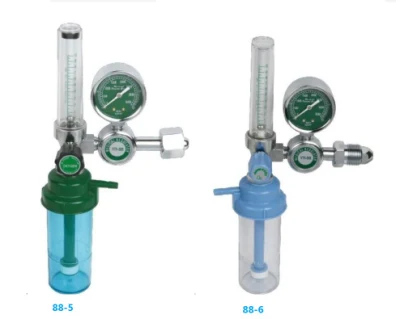

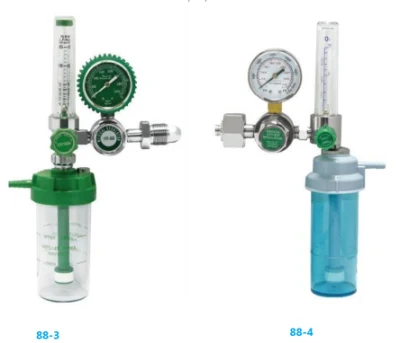

| Type | Medium | Metering range( L/min) | Accuracy | Entrance Pressure(MPa) | Exit Pressure(MPa) | Entrance connection screw thread | Output connection screw thread |
| YR-88-1 | Q2 | 1-10 1-15 | Grade 4 | 15 | 0.2-0.3 | G5/8-14-RH CGA540-RH G3/4-14-RH | 8mm |
| YR-88-2 | |||||||
| YR-88-3 | |||||||
| YR-88-4 | |||||||
| YR-88-5 | |||||||
| YR-88-6 |
