Basic Info.
Model NO.
JDZ-120/BT-250
Packing Speed
30-120(Boxes/Min)
Work Stress
0.6MPa
Power Consumption
120-160L/Min
Transport Package
Sea Transportation
Specification
2880mmx1140mmx1800mm
Trademark
sinoped
Origin
China
Production Capacity
10sets/Month
Product Description
Product Description

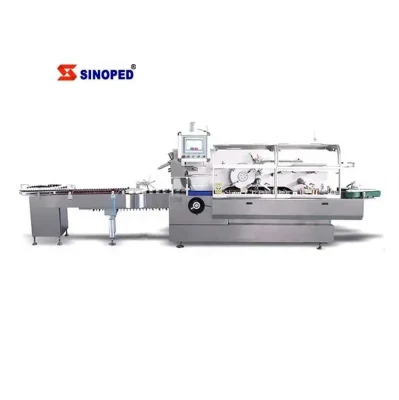

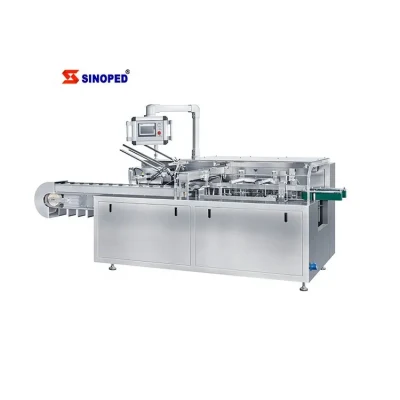

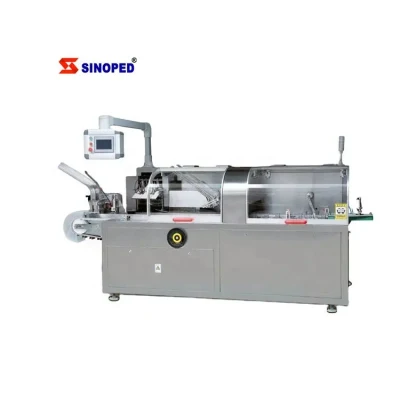

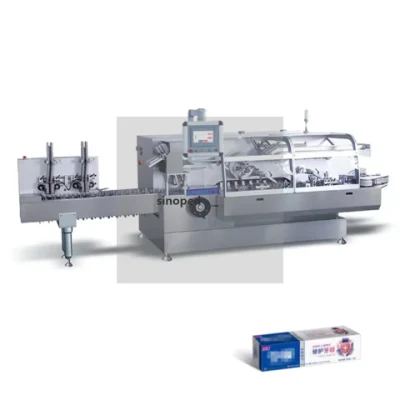

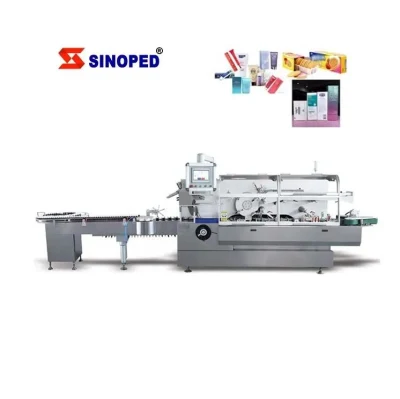

SINO-260 continuous-type high-speed cartonning machine is newly designed by our company, and meets the GMP standard.
There are features of high efficiency, stable properties and high capacity, etc. Many technologies, including the leaflet's automatic
folding & conveying, boxes forming and the post pushing unit, etc. meet the European & American standards. With the tidy
appearance and the post continuous pushing structure, it's convenient to operate and maintain. With the 4-indexing double-
planet-wheel's external-loop rotation, boxes can be opened, and there are twice pre-forming devices, so it's ensures that boxes
can be supported completely. The machine integrates the mechanism-optical-electric- pneumatic in one, and when it's connected
with other matched machines, it's a complete packing line.
There are features of high efficiency, stable properties and high capacity, etc. Many technologies, including the leaflet's automatic
folding & conveying, boxes forming and the post pushing unit, etc. meet the European & American standards. With the tidy
appearance and the post continuous pushing structure, it's convenient to operate and maintain. With the 4-indexing double-
planet-wheel's external-loop rotation, boxes can be opened, and there are twice pre-forming devices, so it's ensures that boxes
can be supported completely. The machine integrates the mechanism-optical-electric- pneumatic in one, and when it's connected
with other matched machines, it's a complete packing line.
Features:
a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box's feeding position is not correct, or there is no box, or there is no leaflet's feeding, the machine will be stopped
automatically.
e.When there is no content, there is no leaflet's taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it's overloaded.
g.Stable properties & convenient operation
b.There is the HMI.
c.Errors, working speed and the final-product counting can be automatically displayed.
d.When the box's feeding position is not correct, or there is no box, or there is no leaflet's feeding, the machine will be stopped
automatically.
e.When there is no content, there is no leaflet's taking. When there is no leaflet feeding, there will be no cartonning.
f.There is the protecting if it's overloaded.
g.Stable properties & convenient operation
| model | JDZ-120/BT-250( vertical) | ||
| Bag feed rate | 1-12bag( It depends on the size of the bag) | ||
| Packing speed | 30-120box/min | ||
| Box | Quality | 250-350g/m2 (It's decided by the box size.) | |
| Size, L×W×H | (60-150) × (35-85) × (12-45), mm | ||
| Leaflet | Quality | 60-70g/m2 | |
| Size when it's unfolded, L×W | (80-250) × (90-170), mm | ||
| Folding | 1-4folds | ||
| Compressed air | Working pressure | Not less than 0.6Mpa | |
| Consumption | About200~ 240L/min | ||
| Power supply | 220V, 50Hz | ||
| Main power | 0.75Kw | ||
| Overall dimension, L×W×H | 2880mm×1140mm×1800mm | ||
| Net weight | About 1500Kg | ||
The specific price is subject to sample negotiation
