Basic Info.
Model NO.
PM-600A
Power
Built in Battery
Transport Package
Carton
Specification
18*16*10cm
Trademark
Dongjiang
Origin
Guangdong, China
Product Description
Power Requirements
Battery:
-- Type: 3.7v Li-ion rechangeble battery
-- Operating time: 15 hours
-- Rechange time: 8 hours
AC power adapter:
-- Input: AC100 - 240V, 50/60Hz, 5VA
-- Output: D.C. 5V
Display
-- 2.8" 240×320dot matrix color TFT LCD
Operating Environment
-- Temperature: 0 ~ 45 ºC
-- Humidity: 15% ~ 95% (non-condensing)
-- Altitude: 86 KPa ~ 106 KPa
Transportation and Storage Environment
-- Temperature: -20 ~ 60 ºC
-- Humidity: 10% ~ 95% (non-condensing)
-- Altitude: 50 KPa ~ 106 KPa
-- Humidity: 10% ~ 95% (non-condensing)
-- Altitude: 50 KPa ~ 106 KPa
Temperature(TEMP)
-- Channel: 1
-- Input: Skin surface thermal-sensitive resistor temperature sensor
-- Measurement Range: 0 ~ 50 ºC
-- Resolution: 0.1 ºC
-- Accuracy: ±0.2 ºC
-- Accuracy: ±0.2 ºC
SpO2
-- Patient Type: Adult, Pediatric, Neonatal
-- Measurement Range: 0 ~ 100 %
-- Resolution: 1 %
-- Accuracy: ±2 % (70% ~ 100%)
Unspecified (0 ~ 69%)
Pulse Rate
-- Measurement Range: 0 bpm ~ 250 bpm
-- Resolution: 1 bpm
-- Accuracy: ±2 bpm
-- Resolution: 1 bpm
-- Accuracy: ±2 bpm
Dimension and Net Weight
Dimension: 120*60*28 mm
Net Weight: 200g
Package list:

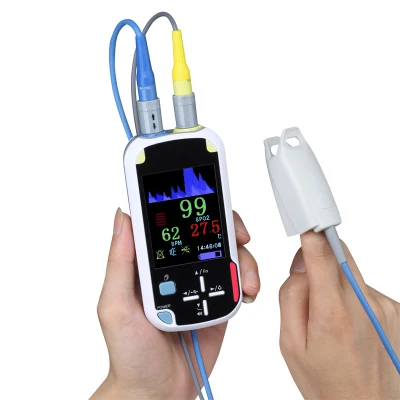

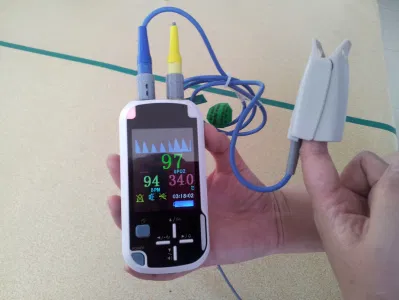

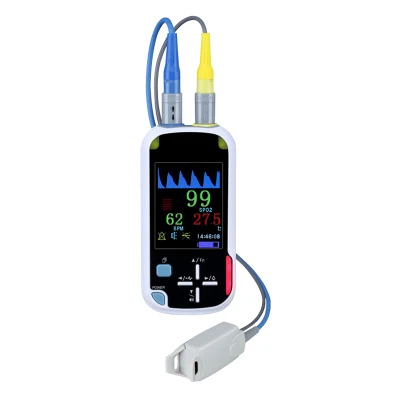

1* PM-600A Handheld Pulse Oximeter
1* User manual
1* SpO2 sensor
1* Temp Probe
1* USB Cable
Packing: 1pc/box, box size: 18*16*10 cm
