Basic Info.
Model NO.
HG-TMFM Thermal Gas Mass Flow Meter
Main Application
Nature Gas, Corrosive Liquid/Gas, Various Gases (Except The Acetylene)
Size
3/8" (DN 10) - 160" (DN4000)
Sensor
Thread / Flange / Clamp on
Application
Industrial Production
Type
Thermal Gas Mass Flow Meter
Measuring Media
Gas
Measuring Principle
Thermal Gas Mass Flow Meter
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, RoHS, ISO
Line Size
3/8" (DN 10) - 160" (DN4000)
Working Temperature
Sensor: -40 -200 Deg.C Transmitter: -20 - 45 Deg.C
Working Pressure
1.6MPa
Flow Units
Nm3/H, Nm3/Min, L/H, L/Min, T/H, T/Min, Kg/H or Kg
Turndown Ratio
100 : 1
Sensor Material
Ss 316L
Power Supply
DC12-24V, 3.6V Lithium Battery
Protection Level
IP 65 (Integrated Type)
Ambient Temperature
-20 - 55 Deg.C
Ambient Pressure
86 -106 Kpa
Signal Output
P-Pulse, 4-20mA, RS 485, Hart
Signal Transmission Distance
1,000m
Display
4-Lines LCD
Connection
Threaded Connection, Flange Connection, Standard I
Explosion-Proof
Exdiict2-T6GB
Transport Package
10kg
Specification
28*28*40cm
Trademark
Siko Instruments
Origin
China
HS Code
9026100000
Production Capacity
999 Units / Weeks
Packaging & Delivery
Package Size
40.00cm * 25.00cm * 25.00cm
Package Gross Weight
10.000kg
Product Description

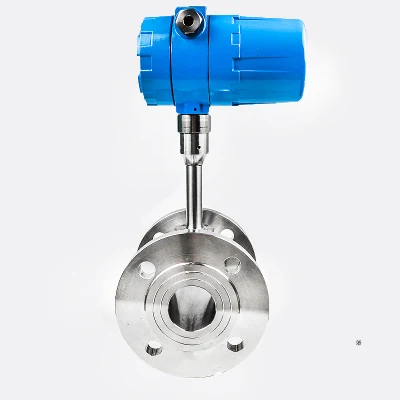

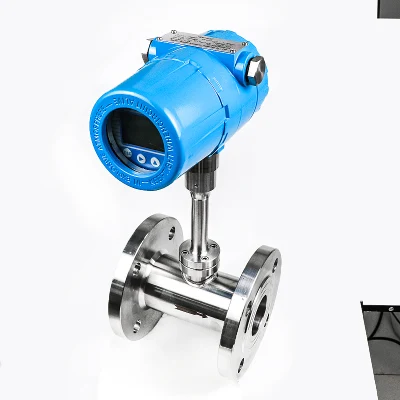

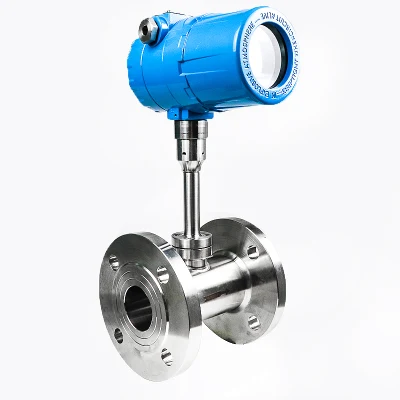

Gas Flow Totalizer DN150 Thermal Gas Mass Flow Meter For Hydrogen Gas
The Siko Instruments HG-TMFM Thermal Gas Mass Flow Meter are thermal dispersion type, it utilizing the constant temperature difference methods of measuring ga mass flow rate. It contains two reference grade platinum RTD sensors clad in protective SS 316 sheath. Its' features include direct mass flow measurement for gases, wide range-ability, low pressure drop, excellent low end sensitivity, and no moving parts.
| 01 | Direct mass flow measurement of gas with actual gas calibration. |
| 02 | Wide measuring range 0.5 Mm3/s - 100 Nm/s for gas. |
| 03. | No need temperature and pressure compensation with accurate measurement. |
| 04. | No moving parts with good vibration resistance and long service life to provide user easy installation and free from maintenance. |
| 05. | Opto-isolated outputs with digital design configuring with RS 485 or Hart interface to realize factory automation and integration. |
| 06. | OLED display with rate, total, mass flow, velocity etc display |
| 07. | Tracking of overall gas consumption over a turndown ratio of at least 100:1 |
| 08. | Low pressure drop, with excellent low end sensitivity |
