Basic Info.
Model NO.
JINLING 01B
Tidal Volume
50-1500ml
(I:E) Ratio
4:1~1:10
Respiratory Rate
1~99 Bpm
Display
5.4 Inch TFT Display
Simv Rate
1-20bpm
Sigh Function
1 Sigh Breath in Every 80-160 Breaths
Transport Package
Cartons for Export
Specification
0.85 CBM; 96 KGS
Trademark
JINLING
Origin
China
HS Code
9018907010
Production Capacity
500
Product Description

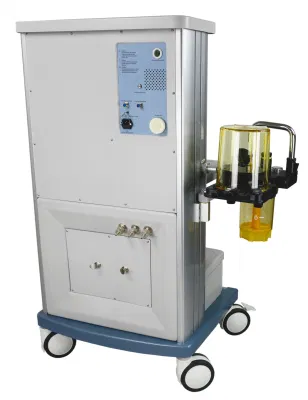

Factory Wholesale Portable hospital Anesthesia Machine Anesthesia Gas Machine Equipment
Features
1-Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

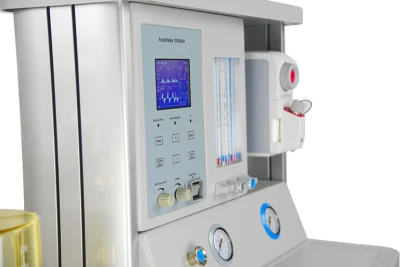

2-Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
3-Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
4-Equipped with electronic pressure differential flow sensor, imported respiratory control valve
5-Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
6-High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
7-Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
8-Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
9-Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
10-Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Optional: Multi-parameter Patient Monitor
Specifications
| Model | JINLING -01B advanced model |
| Display | 5.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | IPPV, SIPPV, IMV, SIMV, MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-2000ml | |
| Respiratory Rate | 1-99bpm |
| Inspiratory/Expiratory (I:E) Ratio | 4:1-1:10 (capable of inverse ratio ventilation) |
| Oxygen Supply Flow Rate | 25~75L/min |
| Inspiratory Pressure Trigger Range | -10-10cmH2O (electronically controlled) |
| SIGH | 1 sigh breath in every 80-120 breaths |
| Vaporizer Concentration Ranges | 0-5% |
| Vaporizer Slots | Double PA-I type slot |
