Excellent Quality Medical Oxygen Filling Machine with ISO13485
Excellent Quality Medical Oxygen Filling Machine with ISO13485
Product Description
Oxygen is an indispensable gas for supporting life in the earth, special in the hospital, medical oxygen plays a very important role to saving the patients.

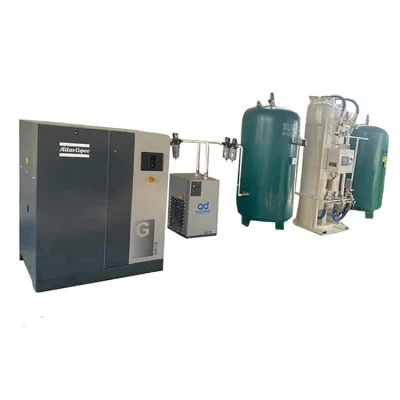

ETR PSA Medical Oxygen Filling Machine can produce medical level oxygen from the air directly. ETR Medical Oxygen Filling Machine is consisted of Atlas Copco air compressor, SMC dryer and filters, PSA oxygen plant, buffer tanks, oxygen boosters and filling station. The HMI control cabinet and APP monitoring system support for the online and remote monitor.
ETR PSA Medical Oxygen Filling Machine can fill medical level oxygen into cylinders, as a complete system, ETR Medical Oxygen Filling Machine is widely used for the oxygen gas station and hospitals.
Compressed air is purified through the air dryer and filters to a certain level for main generator to work with. Air buffer is incorporated for smooth supply of compressed air thus to reduce fluctuation of compressed air source. The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93%±3% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen in buffer tank is maintained at 4bar pressure. With an oxygen booster, the medical oxygen can be fill in cylinders with 150bar pressure.
Working Principles
The medical molecular sieve PSA Medical Oxygen Filling Machine applies the international advanced pressure swing adsorption (PSA) technology to form a rapid cycle of pressurization adsorption and depressurization desorption under the conditions of normal temperature and low pressure.
ETR PSA Medical Oxygen Filling Machine Advantages:
Issuing alarm signal against abnormal parameters,the system detects the moisture content of the compressed air in real time online.
2) LCD touch screen interface, making it's more convenient to set operating parameters.
3) Advantages: Online oxygen monitor, APP remote monitoring system.
ETR PSA Medical Oxygen Filling Machine Models For Choice:
| Model | Oxygen Capacity | Oxygen Purity | Filling Pressure | Filling Capacity |
| (Nm3/h) | (Mpa) | (Cylinders/Day) | ||
| ETS-B3 | 3 | 93±3% | 15 | 12 |
| ETS-B5 | 5 | 20 | ||
| ETS-B10 | 10 | (Can be customized) | 40 | |
| ETS-B15 | 15 | 60 | ||
| ETS-B20 | 20 | 80 | ||
| ETS-B30 | 30 | 120 | ||
| ETS-B40 | 40 | 160 | ||
| ETS-B50 | 50 | 200 | ||
| Note: | ||||
| Filling capacity based on 15Mpa pressures &40L cylinder volume &24 operation hours per day. | ||||
Exhibition
We'll attend medical professional exhibition at home and overseas every year,welcome to visit our booth!
Warranty
(A) ETR guarantees the proper functioning and operating of the equipment for a period of twelve months from the date of testing and commissioning at the end user's site, or eighteen months from delivery date, whichever occurs first.
(B) If there is any defects and malfunction under warranty period, ETR will provide maintenance for free totally until the equipment operates properly.
Our Services
1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)
FAQ
1. Are you manufacturer or trading Company?
We are professional manufacturer to produce medical equipment, including medical PSA medical oxygen plant/generator, medical central suction system, medical compressed air system, medical central gas supply system, hospital head unit system, medical gas monitoring and alarm system, medical nursing system, ward nursing information system, etc, founded in 2003.
2. What's the order process of Medical Oxygen Making Machine For Cylinder Filling?
a. Inquiry---please kindly provide us all specific requirements.
b. Quotation---official quotation form with all specifications will be provided.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution has to be at least 300 dpi.
d. Contract confirmation---official contract will be issued before production process.
e. Payment terms--- Negotiable.
f. Production---mass production.
g. Shipping--- by sea, air or courier. Detailed pictures of package will be provided.
h. Installation and commissioning
3. What terms of payment is acceptable?
T/T, L/C, etc.
4. How to get a prompt quotation of rder process of Medical Oxygen Making Machine For Cylinder Filling?
Pls kindly give us your order requirements with below technical information:
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day/24hours)
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
