Basic Info.
Model NO.
FRNG 507
Output Pressure Range
-10 to 150 Mbar (-1 to 15 Kpa)
Max. Operating Pressure
500 Mbar (50 Kpa)
Pulse Size
RP 3/4
After Warranty Service
Video Technical Support
Application/Usage
Gas Burners Industrial Accessories
Transport Package
Carton
Specification
18X12X25 cm
Trademark
Dungs
Origin
Germany
HS Code
8481100090
Production Capacity
1000
Product Description

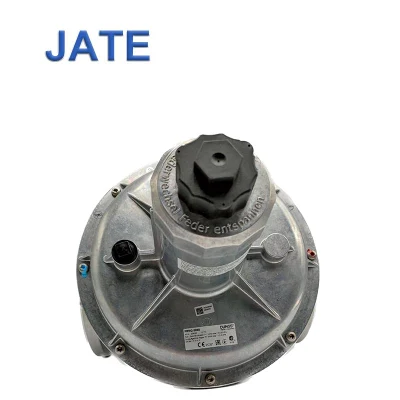

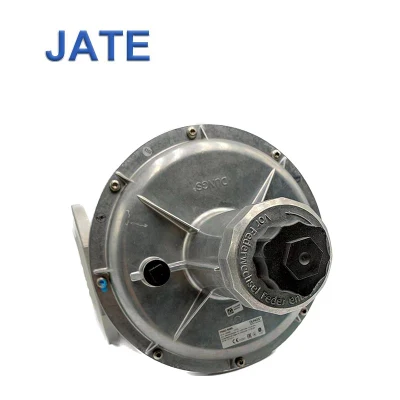

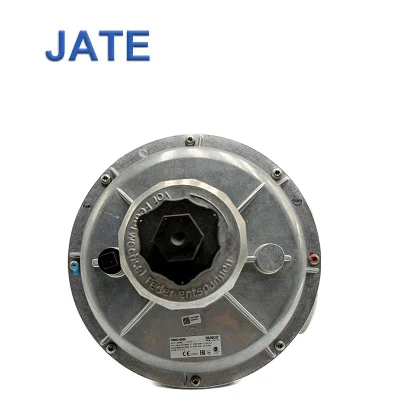

Dungs OR FRNG 507 220969 Rp 3/4 LPG Low Gas Pressure Regulator Reducing Valve Compressed Air-Controlled Pressure Regulator
Technical description
The DUNGS pressure regulator, type FRNG, has an adjustable setpoint spring and defined counterspring. The pressure regulator complies with EN 88 and DIN 3380:
- Input pressures up to 50 mbar (5 kPa) for zero pressure applications
- Input pressures up to 200 mbar (20 kPa) for proportional pressure applications
- Bypass prepared, Rp 3/8 to Rp 2
- Sturdy, precise and sensitive of regulator output pressure
- Inlet pressure compensation diaphragms
- Safety diaphragms
- Internal pulse for regulator output pressure as standard, external pulse connection prepared
- Connection for blower pressure as standard
Application
The DUNGS pressure regulator, type FRNG, is suitable for gases of families 1, 2, 3 and other neutral gaseous media. Does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2 S, dry
Approval
EC type test approval as per EC Gas Appliance Directive:
FRNG 5… CE-0085 AQ7126
Approvals in other important gas consuming countries.
FRNG
Spring-loaded pressure regulator with adjustable setpoint spring and defined counterspring. Internal tap of regulator output pressure, external pulse and blower pressure connections prepared. Suitable for controlling regulator output pressure via apneumatic command variable.
Spring selection
The output pressure is provided by the force of the installed adjustable spring, the counterspring and the the blower pressure applied. The pressure regulator is equipped with the brown spring No. 1 as standard. By exchanging the adjustable spring, it is possible to achieve larger positive zero point shifts (offsets) of the output pressure (refer to Fig. Compressed air-controlled pressure regulator).
Dungs OR FRNG 507 220969 Rp 3/4 LPG Low Gas Pressure Regulator Reducing Valve Compressed Air-Controlled Pressure Regulator
PRODUCT SPECIFICATIONS| item | value |
| Condition | New |
| Warranty | 1.5 years |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Weight (KG) | 3 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Place of Origin | Germany |
| Inlet Pres | 5 to 200 mbar (0.5 to 20 kPa) |
| Brand Name | Dungs |
| Type | Regulator |
| Product name | Pressure Reducing Regulator Valve |
| Model | FRNG 507 |
| Type | Pressure Reducing Control Valves, Pressure Regulators |
| Max. operating pressure | 500 mbar (50 kPa) |
| Output pressure range | -10 to 150 mbar (-1 to 15 kPa) |
| Materials of gas-conveying parts | Housing: aluminium, steel,no non-ferrous metals |
| After Warranty Service | Video Technical Support |
| Usage | Gas Burner Accessories |
| Ambient temperature | -15 °C to + 70 °C |
| Pulse connection | Internal in outlet section, |
