Basic Info.
Model NO.
AYT-100S
Measuring Media
Liquid
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Transport Package
Standard Packing
Specification
Metal
Trademark
Other
Origin
China
HS Code
9026100000
Production Capacity
500 Pieces/Month
Product Description

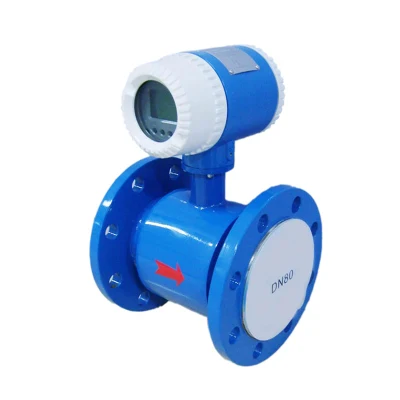

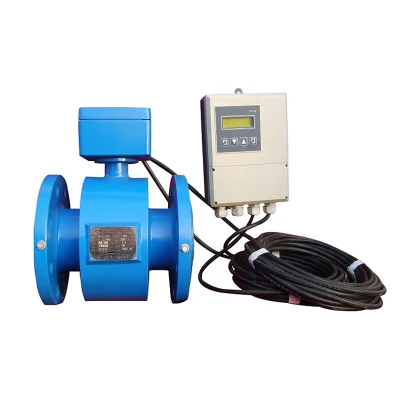

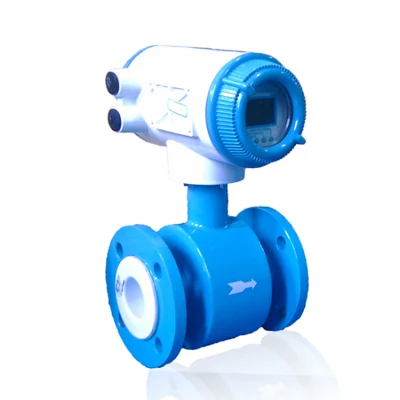

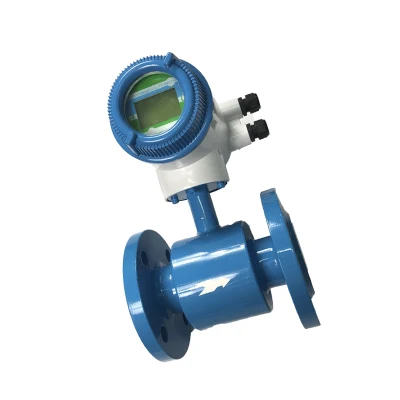

dn150 electromagnetic medical peak flow meter
Product Introduction
Applications
Certificate
Company Profile
Packing & Shipping
FAQ
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
More information please contact us, we will provide the timely feedback!
Product Introduction
| Flow direction | positive and negative net flow |
| Measure extention ratio | 150:1 |
| Repeating erro | ±0.1% of the meterage |
| Accuracy grade | pipeline style: 0.5 1.0 |
| The temperature of themeasured medium | ordinary rubber underlay:-20~+60 High temperature rubber underlay:-20~+90 Polythene underlay: -30~+100 High temperature underlay:-30~+180 |
| Rating work pressure | Pipeline style : DN10-65:≤2.5MPA DN80-DN150:≤1.6MPA DN200- DN 1200:≤1.0MPA |

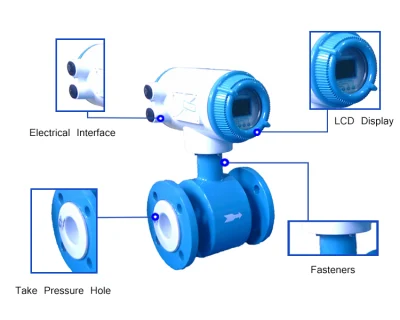

Features:
1.There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming.
2.Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3. Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes.
4 .The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5.The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6. With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7. Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8. Thers instrument do not suit for measuring gas flw or nonconductive liquids.
Main technical parameter
Nominal path series DN(mm)
Piped PTFE Lining:
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
Piped rubber lining:
40 50 65 80 100 125 150 200 250 300 350 400 500 600 800 1000 1200
