DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted

DIN standard medical oxygen gas outlet for ICU/CCU wall mounted from a factory. High quality and certified product for hospitals and healthcare facilities.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
German Standard
Used
Operating Room, Emergency Room and ICU Ward
Standard
German,British, American,Janpan,French
Kind of Gases
O2, Air, VAC, N2, N2o,CO2 ,Agss Are Available
Application
Bed Head Unit/Pendant
Copper Tube Diameter
8mm, 10mm, 12mm
Gas Terminal Unit Outlet Material
Copper
MOQ
50 PCS
OEM
Avalibale
Payment Term
T/T; L/C
Packages
Carton or Wooden Case
Factory Location
Shanghai Pudong
Warranty
One Year
Transport Package
Carton Box
Specification
0.02 m3
Trademark
Zenva
Origin
China
HS Code
94029000
Production Capacity
20000 PCS/Month

Product Description

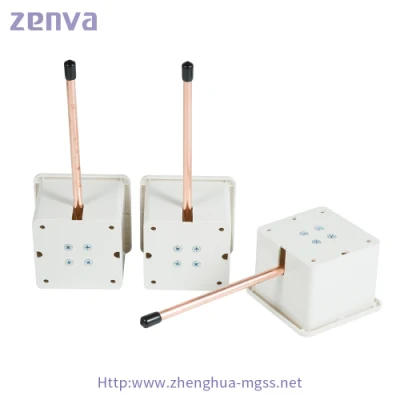

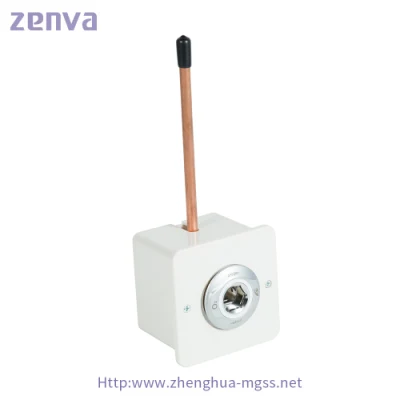

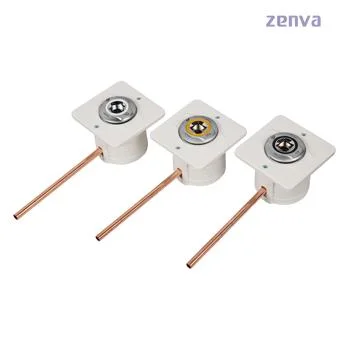

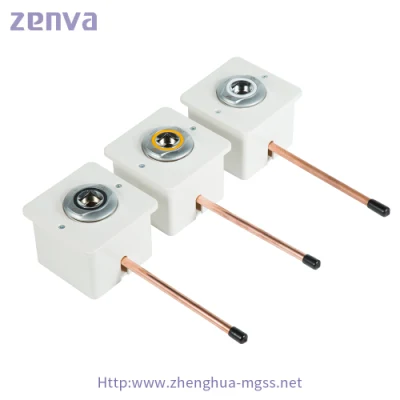

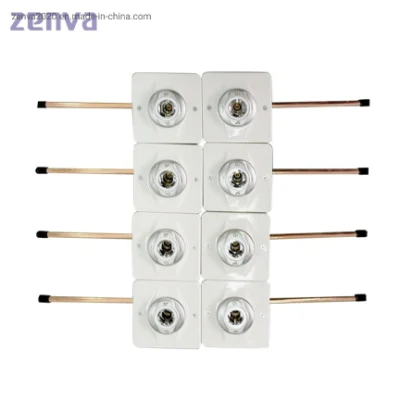

DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted

Features:

1.100% tested for gas leakage.

2.10000 times Swap Fatigue Test.

3.The socks in medical gas outlet for different gases are different shapes so that the supply of gases can not be confused.

4.Connection Type: Hose tube connection ,welding of 8mm copper tube,Thread connection

5.Gas type:O2,VAC,AIR,N2,N2O,CO2

6.The body of material is Brass and sealing ring use medical silicone rubber

7.Second -put-out design can prevent the user from accidentally pull out the adapter

8.Installation:Wall concealed installation; medical bridge pendant installation;bed head unit installation and so on

9.Pressure lid can disassembled during maintenance

  Product Parameter
Technical Data
Oxygen
O2
Medical Air
Air
Nitrous Oxide
N2
Carbon Dioxide
CO2
Vacuum
VAC
In addition, the following terminal units, non-standardized, are included in the sales program:
Compressed Air>6 bar
Air 6-10 bar
Nitrogen
Nitrogen

Compressed gas terminal unit
Vacuum terminal unit
Operating pressure
5 bar
0.6 bar abs.
Flow rate
40 U/min
25L/min
Locking mechanism
In two levels(standby- and operating position)
Maintenance valve
Change of check valve and O-ring under pressure
Connection to piping system
Copper pipe 8 1 mm for all couplings
Plaster compensation
Variable from to 20 mm, with adapter up to 40 mm possible

Other Types
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted

Our Company
• Since 1993 from now.
• A professional manufacturer factory of all types of medical equipment.
• Consecutive sales increasing of 8 years.
• Located in Shanghai, we enjoy convenient water, land and air transportation.
• Provide OEM and ODM service to overseas customer.
• Export to more than 15 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
• Our hope is to cooperate with more customer for mutual development and benefits.
• Our mission is elaborately caring for your health.

DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
The Exhibitions
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
Certificates
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall MountedFeedback
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted
DIN Standard Medical Oxygen Gas Outlet for ICU/Ccu Wall Mounted


FAQ
1.What are the main products?
Zhenghua mainly produce medical pendent, bed head unit, Led/Halogen Lamp,Endoscopy trolly, gasoutlets and other medical equipments product.

2.When do you Start?
We are manufacture located in shanghai eatsblished on 1993 over 23 expriences about producing medical equipments.

3.Where are you?
Located in Pudong Shanghai

4.Why to trust Shanghai Zhenghua Medical Equipment Co.,Ltd?
All of our products have CE ISO approved with high quality.
Our products have exported to 120 countries up to now.
