Basic Info.
Model NO.
HQ-OR-870-2CV
Outlet Connection
Diss/Barb/Check Valve/Quick Connector
Colors
Green/Yellow, Silver/Chrome Plating
Flow
0-4/0-8/0-15/0-25lpm
Inlet Connection
G5/8/Cga540/Cga870/G3/4
Certificate
FDA/Ce/ISO13485
Transport Package
Standard Export Carton
Specification
20Pcs/Ctn
Trademark
OEM/ODM
Origin
China
HS Code
9019200000
Production Capacity
50000PCS/Year
Product Description
Product Description

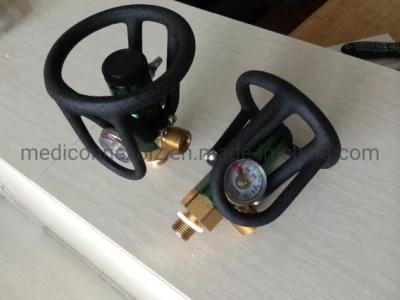

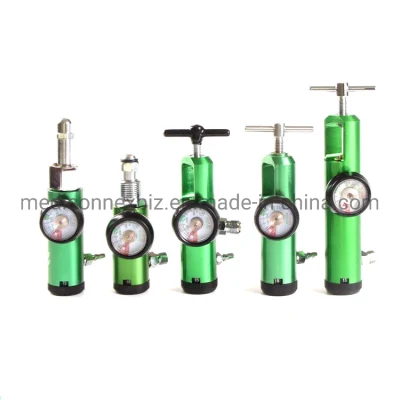

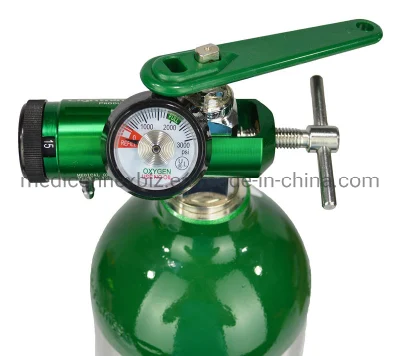

Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Item Name: Click Style Medical Oxygen Regulator
Item No.: HQ-OR-540-2CV
Material:Aluminum, Brass
Inlet Connection:CGA540
Outlet Connection: Diss and TWO Check valve
Inlet Pressure: 0-3000PSI
Outlet Pressure: 50PSI
Flow Rate:0-4, 0-8, 0-15,0-25 LPM
Packing Size: 40*35.5*15.5CM/CTN
20PCS/CTN 6/7KGS/CTN
•3000psi maximum inlet pressure
•1-1/2'' diameter UL-listed gauge
•Complies to CGA standard
•Internal relief valve
•Piston design regulator
•Sintered bronze inlet filter for longer service life
•Easy to read flow rate window
•Alternative color
•Selection of 0-4 0-8 0-15 0-25 each with 12 flow settings
•FDA,ISO13485 certification
Products details:
Products Application:
Sales:Abby
Mobile Phone: 0086-15058223940
Website:https://mediconnexbiz.en.made-in-china.com
Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Item Name: Click Style Medical Oxygen Regulator
Item No.: HQ-OR-540-2CV
Material:Aluminum, Brass
Inlet Connection:CGA540
Outlet Connection: Diss and TWO Check valve
Inlet Pressure: 0-3000PSI
Outlet Pressure: 50PSI
Flow Rate:0-4, 0-8, 0-15,0-25 LPM
Packing Size: 40*35.5*15.5CM/CTN
20PCS/CTN 6/7KGS/CTN
Main Features
•Aluminum body with brass core•3000psi maximum inlet pressure
•1-1/2'' diameter UL-listed gauge
•Complies to CGA standard
•Internal relief valve
•Piston design regulator
•Sintered bronze inlet filter for longer service life
•Easy to read flow rate window
•Alternative color
•Selection of 0-4 0-8 0-15 0-25 each with 12 flow settings
•FDA,ISO13485 certification
Products details:
Products Application:
