Product Description

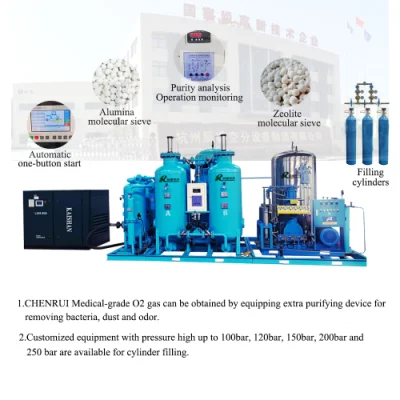

Chenrui Air Separation Plant Medical O2 Oxigen Gas Psa Oxygen Generator Equipment

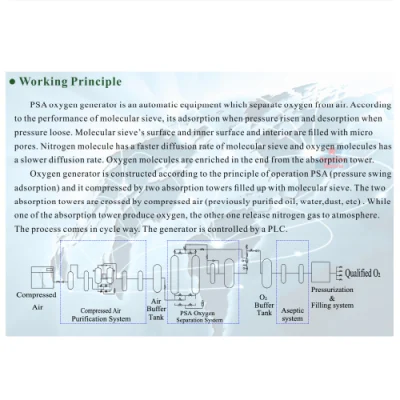

PSA Medical Oxygen Generator Principle
FBO series PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve's surface and inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecular sieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower. Oxygen generator is constructed according to the principle of operation PSA (pressure swing adsorption) and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce oxygen, the other one release nitrogen gas to atmosphere. The process comes in cycle way. The generator is controlled by PLC.

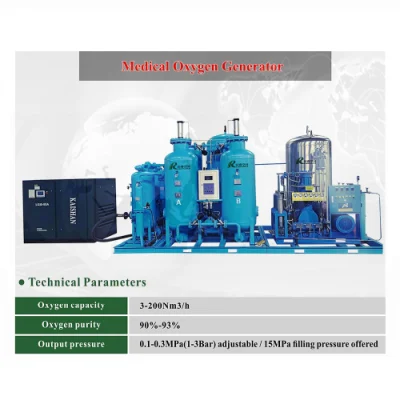

1. Specification
- Purity: 90%-93%
- Capacity:3~200Nm3/h
- Oxygen pressure: 0.1-0.5MPa
- OEM Services
- PSA Oxygen Generator

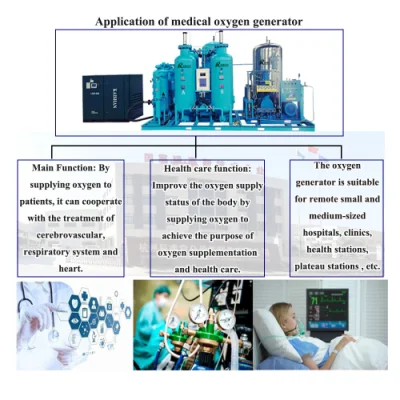

2. Applications
-Ferrous metallurgy: For electric furnace steel making ,blast furnace iron making,cupola oxygen blasting and heating and cutting, etc
- Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our environment.
-Water process: For oxygen aeration active mud processes, reaeration of surface water. fishes breed aquatics,industrial oxidation process, humid oxygenation.
-Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing, medical oxygen, etc.
Advanced PLC touch screen control and display, fully automatic operation, can be unmanned management.
2.Economical
3.Safety
- Full Automation
All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
-Lower Space Requirement
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.
-Fast Start-up
Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per Oxygen demand changes.
-High Reliability
It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always.
-Zeolite Molecular Sieves Life
Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no replacement costs.
-Low investment and energy consumption
| No | Model | Capacity | Purity | Pressure |
| 1 | FBO-3 | 3Nm3/h | 93%+/-2 | 0.1-0.3Mpa 15/20Mpa for filling system |
| 2 | FBO-5 | 5Nm3/h | ||
| 3 | FBO-10 | 10Nm3/h | ||
| 4 | FBO-15 | 15Nm3/h | ||
| 5 | FBO-20 | 20Nm3/h | ||
| 6 | FBO-25 | 25Nm3/h | ||
| 7 | FBO-30 | 30Nm3/h | ||
| 8 | FBO-40 | 40Nm3/h | ||
| 9 | FBO-50 | 50Nm3/h | ||
| 10 | FBO-60 | 60Nm3/h | ||
| 11 | FBO-70 | 70Nm3/h | ||
| 12 | FBO-80 | 80Nm3/h | ||
| 13 | FBO-100 | 100Nm3/h | ||
| 14 | FBO-150 | 150Nm3/h | ||
| 15 | FBO-200 | 200Nm3/h |
1. Are you manufacturer or Trade Company?
We are the manufacturer of Oxygen Generator, founded in 2005
2. What's the order oxygen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of Oxygen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
