Cheap Price Medical Oxygen Regulator Bottle Flowmeter with Humidifier

Get high-quality, cheap price medical oxygen regulator bottle flowmeter with humidifier from our factory. Ensure reliable oxygen flow for your medical needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
oxygen regulator
Relief Valve Pressure Range
3 . 5kg±0 . 5kg
Suitable Gas
Oxygen
Structure
Pressure Reducing
Origin
China

Product Description

Product Description
Cheap Price Medical Oxygen Regulator Bottle Flowmeter with Humidifier
Specification
Product Name
 flow meter oxygen flow meter medical regulator
Type
Breathing Apparatus, Oxygen Regulator
Suitable gas
Oxygen
Oxygen flow range
1-10L / Min I-15L / Min
Pressure reducing range
2.0~3.0kg
Relief valve Pressure range
3 . 5kg±0 . 5kg
Application
hospital
Products Details
Cheap Price Medical Oxygen Regulator Bottle Flowmeter with Humidifier
Cheap Price Medical Oxygen Regulator Bottle Flowmeter with Humidifier Product Instructions
Cheap Price Medical Oxygen Regulator Bottle Flowmeter with Humidifier

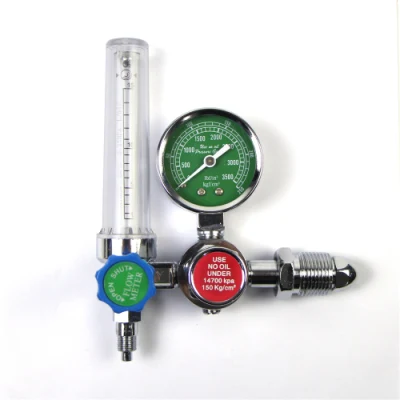

Medical Regulator Instruction

Medical regulator is used for oxygen breathing in hospital
1.Mainly component name ( Please see overleaf )
2.Mainly function:
Oxygen flow range : 1-10L / Min I-15L / Min
Pressure reducing range : 2.0~3.0kg
Relief valve Pressure range : ( 3 . 5kg±0 . 5kg)
3 . Appliance introduction
Before using , please fill pour clear water into moisture bottle about one third reaching water line site
DF-2 blind nut straw into bolt head , make the pipe of flow meter square water line.
Put off regulator ( 9 ) , put on oxygen tube switch , so you will the data from needle position of pressure gauge ( 2 ) .
At last , straw flow on / off at anti -clockwise according to patients need , adjust switch.
If Patient need oxygen for a long time , can nse nose pipe to help patient absorb oxygen .
Moisture bottle ( 20 ) circles at clockwise , adjust ( 17 ) oxygen hole to other site.
4.Attention point

Before using the suction , you will check all parts bad or good and clean it by drying cloth.
Pressure gauge ( 2 ) , regulator ( 3 ) no oil , otherwise explode.

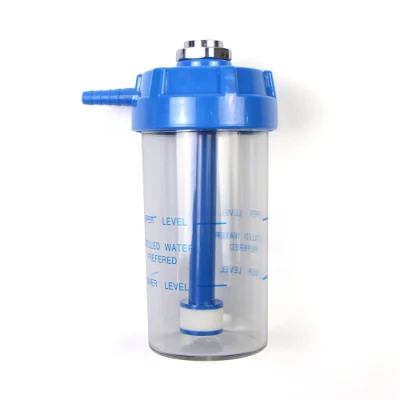

Clearwater in moisture bottle keeps clean.
There is adjustable nut ( 6 ) in the front of plunder shall be straw at clockwise.
Relief value ( 7 ) ( 15 ) keeps out of danger.
Oxygen dosage is decided by doctor.
After using suction , put off the oxygen tube switch , make rest oxygen out ,pressure gage to zero site , last put off flow switch if using again , first put on the oxygen tube switch , avoid exploding.
The product must be examined periodical , at least once every 6 month.
5.If you don't understand , please contact to us.
